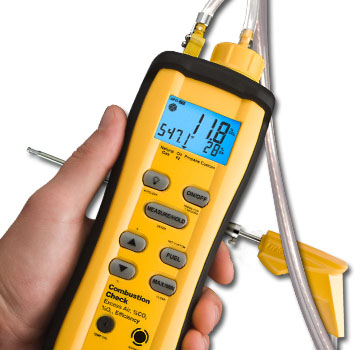

SOX3 Combustion Checker with Auto Pump by Fieldpiece

The SOX3 Combustion Check is a great tool to easily tune furnaces when a full combustion analysis isn't necessary. Designed specifically for HVACR pros, the SOX3 provides all the essential measurements needed to tune most combustion equipment. It directly measures %O2 and flue temperature, and calculates %CO2, %Excess Air, and combustion efficiency.

Like all Fieldpiece products, the SOX3 Combustion Check Tool was designed to help HVACR professionals do more with their tools. From custom fuels to field-replaceable oxygen sensors, the SOX3 can be trusted to measure up for any furnace tuning job.

  • Automatic Electric Pump with Pause - Pump works automatically so there's no hand pumping, and techs can pause the pump at any time to save battery life
  • Field-replaceable Oxygen Sensor - The SOX3 Oxygen Sensor indicators tells techs when a new sensor is needed. With calibration data stored on the sensor, it can be swapped out in seconds, so there's never a need to send your instrument in for calibration.
  • Hands-free Testing - The threaded R-cone holds the barrel firmly in the flue, and the strong magnet on the back of the SOX3 holds the instrument firmly to the side of the flue, while the internal electric pump does all the work. Techs simply view the results on the triple line display.
  • Combustion Efficiency - Quickly calculated and displayed on the screen, the SOX3's combustion efficiency calculation is great measurement to help determine the health of a furnace.
  • Custom Fuels - Not only does the SOX3 test Natural Gas, Oil #2, and Propane, but it can be quickly, and easily programmed to test any type of fuel. So non-conventional furnaces are just as easy to tune and conventional furnaces.

Includes

  • Combustion Check - SOX3
  • Barrel and Thermocouple Handle - RSOX3
  • Threaded Barrel Lock - RCONE1
  • Filter accessory kit - RAOX9
  • Padded, Blow-molded Case
Gewneral Specification
Sensor Type Highly accurate oxygen sensor.
Operating environment 32 to 122°F (0 to 50°C) at <75% R.H
Storage environment -4 to 140°F (-20 to 60°C) at <80% R.H. with battery removed from meter.
Temperature Coefficient 0.1 times the applicable accuracy per ° from 32°F to 64°F and 82°F to 122°F (0 to 18°C and 28 to 50°C)
Battery 9V
Battery Life 28 hours typical alkaline
Auto Power off After 15 minutes.
Accuracy Stated accuracy at 23°C±5°C, <75% R.H.
Dimensions 45.0mm(H) x 69.8mm(W) x 211.7mm(D).
Weight approx. 579.7g with battery
Display 4 digit liquid crystal display(LCD) with maximum reading of 9999.
Low battery indication The battery symbol is displayed when the voltage drops below the operating level.
TEMPERATURE
Range -58°F to 1000°F (-50°C to 538°C)
Resolution 0.1°
Accuracy ±[0.6%+3°F(1.7°C)]after field calibration.
Sensor Type Rod K-type thermocouple.
Range -50°F to 900°F (continuous operation range) up to 1000°F (single exposure use)
Accuracy (±4°F) on -50°F to 545°F (±0.75%) on 545°F to 1000°F
Oxygen
Oxygen Range 0 to 25%
Accuracy ±0.3%O2 (Calibrated at 72°F, 20.9%O2 )
Max Overload 30% Oxygen
Operational temp range -4°F to 122°F
Response time Under 2 minutes.
