Hanna pH and EC Transmitter with Galvanic Isolated Output 0-1 V Output - HI98143-01

Item #:
HI98143-01
Brand:
Hanna Instruments
Hanna pH and EC Transmitter with Galvanic Isolated Output 0-1 V Output - HI98143-01
$527.00
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Hanna pH and EC Transmitter with Galvanic Isolated Output 0-1 V Output - HI98143-01

Hanna pH and EC Transmitter with Galvanic Isolated Output 0-1 V Output - HI98143-01

$527.00

Discontinued

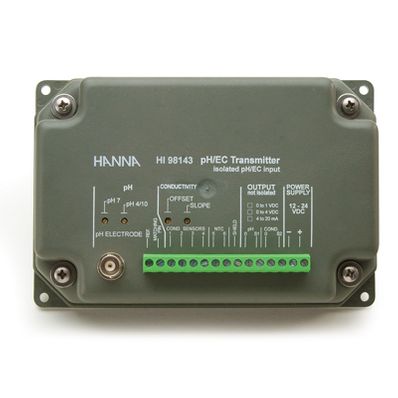

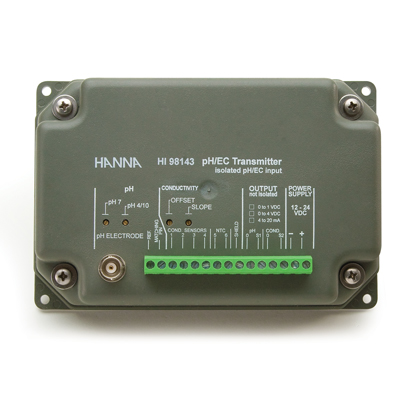

HI98143-01 pH and EC Transmitter with Galvanic Isolated Output 0-1 V Output by Hanna Instruments

The HI 98143 series is designed to accept signals directly from a pH electrode and a conductivity probe at the same time.

Direct connection of the probes to the transmitter assure a positive electrical connection with no signal loss. This transmitter is ideal for remote process control applications.

Four models are available, transmitting a 0-1 V, 0-4 V or 4-20 mA signal. The output signals are proportional to the input signals but independent of changes in load or cable capacitance. Compensation for the effects of temperature for EC measurements are performed by the transmitters’ Automatic Temperature Compenstion circuitry.

The transmitter can be connected to any pH or conductivity controller, recorder, PC or any data monitoring device that accepts 0 to 1 V, 0 to 4 V or 4 to 20 mA input. HI98143 is an ideal tool for applications that require the monitoring of both pH and conductivity at the same time.

  • Accepts pH electrode and EC probe signals simultaneously
  • Direct probe connection; Assures a positive electrical connection eliminating signal loss
  • Automatic Temperature Compensation (EC only)

Order Information:

All HI 98143 models are supplied with instructions.

pH Range 0 to 14 pH
EC Range 0 to 10 mS/cm
pH Accuracy @ 20°C ±0.5% f.s.
EC Accuracy @ 20°C ±2% f.s.
pH Calibration manual, 2 point, through offset and slope trimmers
EC Calibration manual, 2 point, through 0 and 5 mS/cm trimmers
Temperature Compensation automatic, 0 to 60°C (32 to 132°F) with ß=2%/°C
Output (isolated) 0-1 V
pH Electrode HI 1001 pH electrode (suggested, not included), HI 1283 matching pin (not included)
EC Probe HI 3001 (not included) with cell constant 2.1
Casing IP 54
Power Supply 12-24 VDC
Environment 0 to 50°C (32 to 122°F); RH max 95% non-condensing
Dimensions 160 x 105 x 31 mm (6.3 x 4.1 x 1.2)
Weight 280 g (9.9 oz.)
