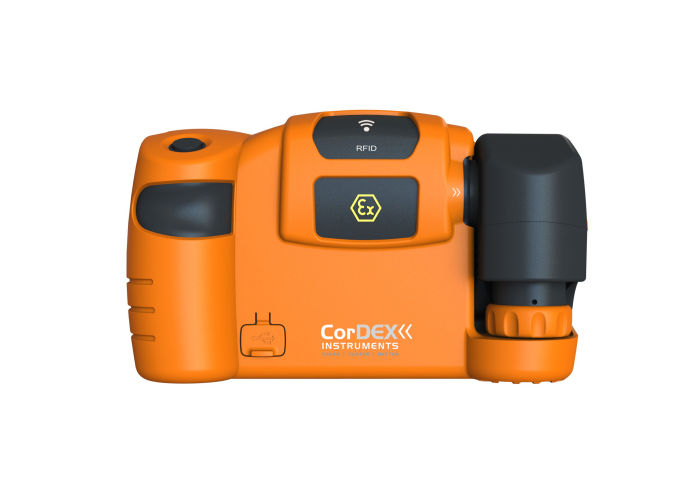

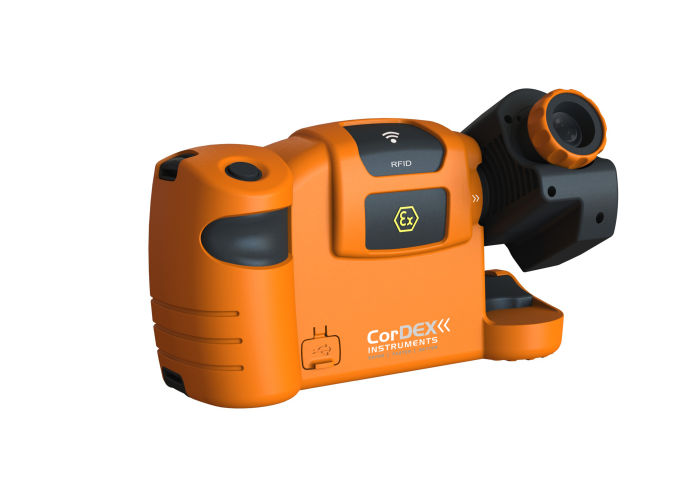

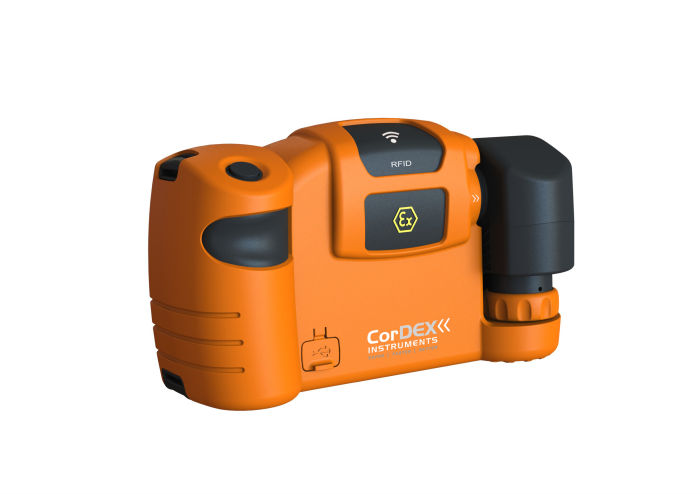

CorDEX TC7000 Intrinsically Safe Thermal Camera

TC7000 Intrinsically Safe Thermal Camera by CorDEX

The TC7000 intrinsically safe thermal imaging camera is a long awaited product by professionals working in hazardous (explosive) areas. Until now the only way to carry out thermographic inspections in these areas was with an uncertified camera and hot work permit – a risky practice frowned on by safety inspectors. TC7000 is certified for use in the explosive gas areas found in the petrochemical industry, the explosive dust areas found in sugar production and grain storage/handling and the below ground hazardous areas of the mining industry.

Data capture is accurate and simple with the RFID tag reader built into TC7000 that enables thermal images and voice comments to be linked to a location. This temperature, location and time data builds into a powerful trending and predictive tool when downloaded to CorDEX CONNECT software.

Used in conjunction with CorDEX intelligent IR windows for electrical inspection only TC7000 offers transmission correction and images individually tagged to the location through RFID technology. Inspection times are cut dramatically and errors avoided.

Here are just a few of the applications for TC7000 in the oil/gas industry:

• Refractory lining – crackers, heaters
• Pipe insulation, missing or damaged
• Steam traps
• Electrical systems and switchgear
• Motor bearings, gearboxes, electrical connections, shaft misalignment
• Pipe trace heating and missing or degraded insulation
• Flares
• Tank insulation and level

Features:

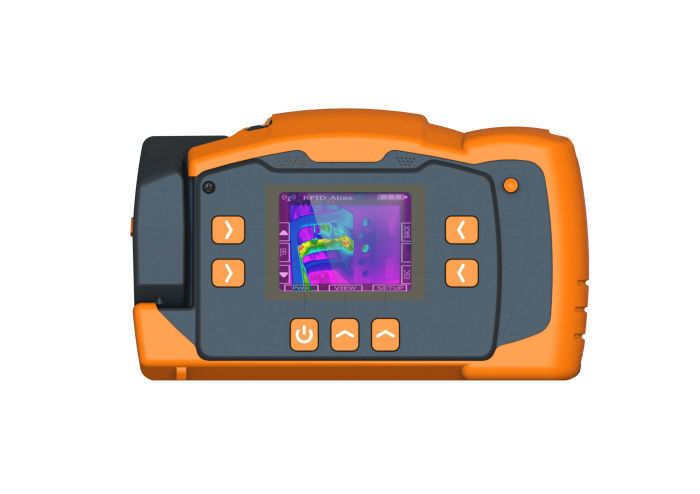

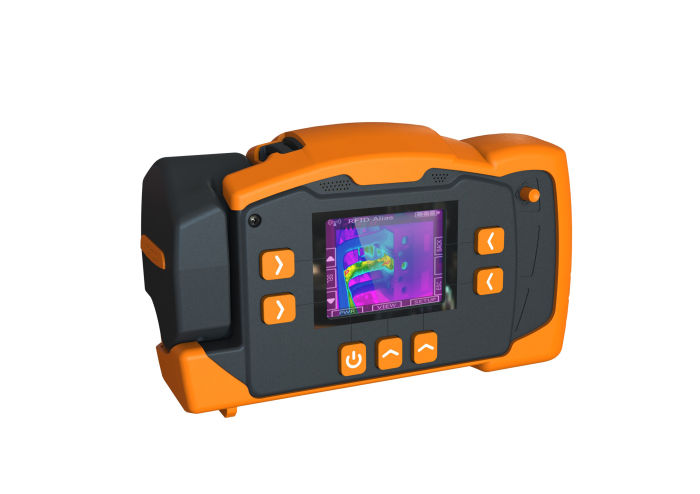

• High resolution 320 x 240 IR detector, clear backlit display
• Rugged and ergonomic industrial construction for harsh environments
• Fully compatible with CorDEX IW Series Intelligent IR Windows
• Hotspot reporting and trending through CorDEX CONNECT

TC7000 is supplied complete as standard with:

• Intrinsically Safe Thermal Imaging Camera
• 3 x MN1500 primary Cells
• Hard carry case
• Wrist strap
• Neck strap
• USB communication wand
• Documentation CD
