Zarbeco ZC-203 2.0 Megapixel Digital Video Camera with 2.0 USB Port Connector - ZC-203-o2

Item #:
ZB-ZC-203-o2
Brand:
Zarbeco
Zarbeco ZC-203 2.0 Megapixel Digital Video Camera with 2.0 USB Port Connector - ZC-203-o2
$750.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Zarbeco ZC-203 2.0 Megapixel Digital Video Camera with 2.0 USB Port Connector - ZC-203-o2

Zarbeco ZC-203 2.0 Megapixel Digital Video Camera with 2.0 USB Port Connector - ZC-203-o2

$750.00

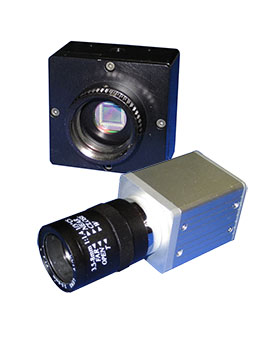

ZC-203-o2 2.0 Megapixel Digital Video Camera with 2.0 USB Port Connector by Zarbeco

A compact, scientific quality camera for machine vision or microscopy, the ZC-203 is fully DirectShow® compliant and installs without drivers on Windows (32 and 64 bit) and Macintosh Snow Leopard computers. The 1600 x 1200 pixel array updates at 15 frames/sec. (30 frames/sec. at 640 x 480 pixels.)

A single cable simplifies connecting the camera to any desktop or laptop computer with a USB 2.0 port. Since the ZC-203 is fully powered from the USB 2.0 port, it is the perfect choice for mobile imaging applications.

The ZC-203 camera includes Video ToolBox Pro software, which provides full control over the camera, an easy-to-use interface for image capture, and advanced labeling, annotation and measurement features. An optional programmers DLL allows for remote software control in Basic or C/ C++, as well as National Instruments' LabVIEW®.

Features

  • 1600 x 1200 pixels
  • USB powered
  • Connects directly to laptop or desktop computers with USB 2.0
  • Windows (32 and 64 bit)
  • Optional MAC software
  • Optional Video ToolBox Premier software
  • Includes PC software to capture still images and movies, with labeling, annotation and measurement

Applications

  • Microscopy (brightfield, darkfield, fluorescence)
  • Inspection
  • Video Documentation
  • Surveillance and Security
  • Mobile Imaging
  • Photo ID Systems
  • Telemedicine
  • Video conferencing and Webcasting

Computer Requirements

  • Windows XP/VISTA/7/8 (32 or 64 bit)
  • MAC OS X 10.6+ (Mac Software Optional)
  • Free USB 2.0 Port
  • DirectX 8.1 or greater (for Windows)
  • Pentium IV 1.6+ GHz (Core 2 Duo, 1.5+ GHz recommended)
  • 1+ GB of Free Memory (2+ GB recommended)
  • Video card with 64+ MB of video RAM, minimum 800 x 600 resolution at 16-bit (65,000 colors)

Suggested Products

  • Foot Switch
  • Video Averager
  • Particle Analyzer
  • FocusLock
  • Video ToolBox Premier
Sensor Type CMOS
Sensor Size 4.73 mm × 3.52 mm (1/3" type)
Pixel Size 2.8 µ × 2.8 µ
Array Size 1600 x 1280
Fixed Pattern Noise < 0.03%
S/N Ratio 42.3 dB
Min. Illumination 0.5 lux (with IR filter removed)
Bits per Pixel 8 (per color component)
Frame Rate 15/sec (max. full frame)
Shutter rolling, progressive scan
Gain manual or automatic
Lens Mount C or CS
Camera Housing Anodized aluminum
Camera Body Size 45 (h) x 45 (w) x 58 (d) mm
Camera Weight 128 g (w/out lens)
Mounting 1/4" threaded socket
Software Capture Program: Video ToolBox PRO
Drivers: DirectShow and TWAIN
