Testo 570s Digital Manifold - 0564 5701 01

Testo 570s Digital Manifold - 0564 5701 01

$795.00

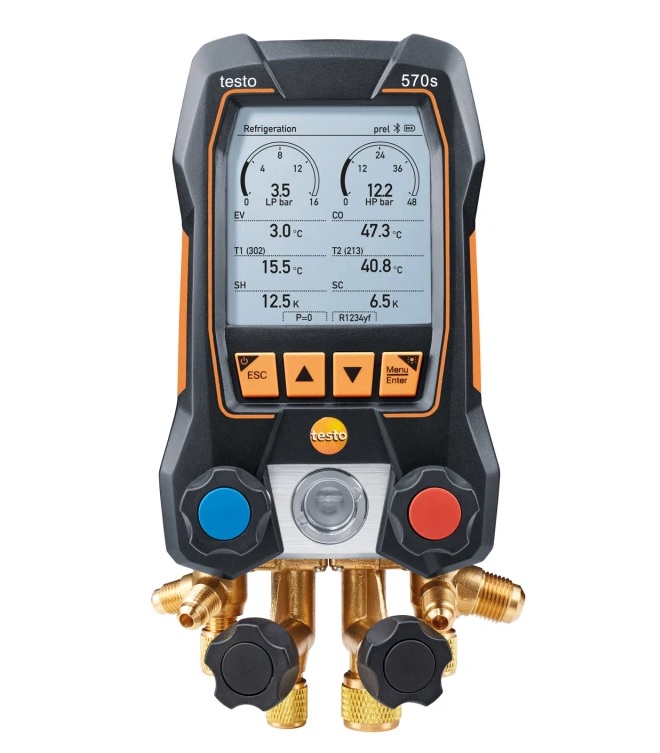

0564 5701 01 570s Digital Manifold by Testo

With the new testo 570s, we are opening up the future of intelligent long-term measurement on refrigeration and air conditioning systems as well as heat pumps. Digital fault analysis in the testo Smart App allows anomalies to be detected quickly and reliably. And with the world's longest runtime of up to 360 hours and large data memory, testo 570s is ideal for long-term measurements. Behind it is the hybrid system of rechargeable battery (USB-C) and 3 AA batteries.

The large screen of the testo 570s provides a quick overview of all measured values as well as a graphical progress display. For uncomplicated measurement of temperature, vacuum and current, all probes automatically connect to the manifold via Bluetooth. To make measurement even easier, stored programs guide you through the measurement process and enable determination of numerous parameters. The subsequent documentation and sending of data is also possible with just a few clicks in the testo Smart App.

Thanks to high robustness with protection class IP54, testo 570s continuously delivers high performance even under the most difficult conditions.

  • Long-term measurement with intelligent error analysis in the testo Smart App
  • World's longest battery life of up to 360 hours with rechargeable battery (USB-C) and interchangeable AA batteries (3x)
  • Suitable for 90+ refrigerants incl. A3 and A2L
  • Highest precision even at low pressure values due to measuring accuracy of 0.25% fs
  • All measurement data at a glance and graphical progress display thanks to large display
  • High durability with IP54 protection class
General technical data
Operating temperature -4° to 122 °F
Storage temperature -4° to 140 °F
Battery type Built-in rechargeable battery: LI batttery 18650
Replaceable battery: 3 alkaline batteries AA
Battery life With built-in rechargeable battery: ≥220 h without Bluetooth®, without illumination ≥120 h with Bluetooth® and illumination
With 3 AA batteries: ≥145 h without Bluetooth®, without illumination ≥75 h with Bluetooth® and illumination
Auto power off after 10 minutes when not connected via Bluetooth®
Dimensions 9 x 4.4 x 3 in.
Weight 2.9 lbs.
Protection class IP54
Bluetooth® technology/ range Bluetooth® 5.0 / 500 ft
Compatibility Requires iOS 11.0 or newer / Android 6.0 or newer
Requires mobile terminal device with Bluetooth® 4.0
Sensor types
  Pressure Temperature
Measuring range -15 to 870 psi -58° to 302 °F
Accuracy (at 72 °F) ±0.25 % fs ±0.9 °F
Resolution 0.01 psi 0.1 °F
Probe connections 3 x 7/16" – UNF
+ 1 x 5/8" – UNF
2 x plug-in (NTC)
Overload 65 bar -
