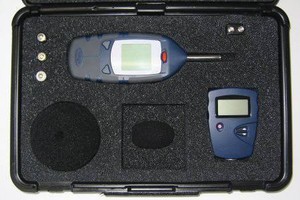

Casella Sound Level Meter Kit with Meter, Calibrator, Windscreen, Strap, USB Cable, Software and Case
Item #:
CEL-242-K2
Brand:
Casella
Share this product:
Casella CEL-240 Digital Sound Level Meter
The Casella CEL-240 Digital Sound Level Meter uses Digital Signal Processing technology to monitor and measure noise hazards in your environment. The meter is simple and efficient in its design. By investing in usable technology and retaining efficiency in design, the meter is reliable, effective, and affordable. This makes it suitable for a wide variety of everyday industrial applications. With its state of the art technology and convenient design, the Casella CEL-240 is a completely new design for digital sound level meters.
Exclusive Features
The Casella CEL-240 Digital Sound Level Meter has several exclusive features the render it suitable for everyday tasks in a variety of industrial applications. First, its 2 button operation system is incredibly user friendly, and its large graphic LCD display is easy to read at 128 x 128 pixels. The screen also has a large numeric and analog bar graph display. It also offers a wide range of sound monitoring from 30 to 130 decibels and simultaneously displays the current and the highest noise levels. The unit also automatically calibrates at either 114 or 94 1kHz decibel levels. The meter can be mounted on a tripod for fixed measurement applications and will run for up to 35 hours on its own.
Workplace Applications
The meter covers a full 70 decibels on each low and high measurement range, and the CEL-240 meter is suitable for a variety of industrial applications including:
- Machinery noise surveys
- General purpose workplace noise level measurements
- Assessment of appropriate hearing protectors
- Compliance with noise ordinances
Casella CEL-240 Digital Sound Level Meter Specifications
The digital sound level meter has a ¼ inch electret microphone in standard ¼ inch housing. It has an operating temperature range of 32 to 104 degrees Fahrenheit. It is powered by either 3 AA alkaline batteries or rechargeable battery packs. It is a convenient size for portability with dimensions of 2.8 x 8.3 x 1.2 inches and less than 9 ounces. Each unit comes standard with an initial individual factory calibration. It has a measurement range of 30 to 130 decibels and 70 decibel dynamic span on a single range.
Casella CEL and IDEAL Industries
Casella CEL is a wholly owned subsidiary of IDEAL Industries, Inc. based out of Buffalo, New York. Since its founding in 1916, IDEAL Industries has pioneered the field of electrical wire connection. The company has since expanded expertise into a wide array of manufacturing technologies. Through IDEAL Industries, Casella CEL continues to lead the industry in innovation and safety solutions. Their research and development team is customer focused, and its dedication to industrial solutions is evident in their consistent development of quality products.
![](https://s.turbifycdn.com/aah/yhst-8480297768913/industrial-scientific-weather-station-all-weather-sensor-communication-box-ethernet-18109636-1010-22.gif)
General | |
Accuracy | ANSI S1.4 Type 2, IEC 61672-1 2002-5 |
Microphone type | ¼” Electret mic. in standard ½” fixed housing |
Reference Conditions | 68°F (20°C) air temperature, 65% Relative Humidity, 1013 mbar (101.325 kPa) atmospheric pressure. |
Operating Temperature Range | 32 to 104°F (0 to 40°C) (Class 2) |
Effect of Humidity | Less than ±0.5dB over the range 30 to 90% RH (non-condensing), rel. to value at ref. conditions |
Operating pressure range | 650 to 1080 mbar (65 to 108 kPa) |
Batteries | 3 x AA Alkaline or rechargeable types |
Battery Life (hours) | At least 35 hours |
Dimensions w x h x d (in/mm) | 2.8 x 8.3 x 1.2 in (71.5x 212.0x 31.0mm) including preamplifier and microphone |
Weight including batteries (oz/gm) | 8.8 oz (< 250g) |
Operator controls | buttons for power On/Off and 2 x context sensitive menu selection plus initial configuration screen |
Performance | |
Total measurement range (dB) | 30 to 130 |
Dynamic span on single range (dB) | 70 |
Number of measurement ranges - 2 ranges (Low and High dB) | (30 – 100 & 60 – 130) |
Noise floor (A weighted dB) | < 33 |
Frequency weightings | A and C |
Time weightings | Slow, Fast and Impulse |
Displayed parameters always available on all user available screens | Instantaneous level - Lp, Maximum level - Lmx |
Reset of maximum level from key press by user | Yes – with non-decaying max hold |
Display type | 128 x 128 dot matrix LCD digital including real-time analog bar graph scale |
Display resolution – numeric (dB) | 0.1 |
Display resolution – graphical (dB) | 1 |
Update rate for display (seconds) | 0.5 |
Displayed time span for time history chart (minutes) | Last 1 or 5 |
Calibration method | Automatically recognized by meter |
Signal detected when calibrator placed over microphone at 1 kHz frequency | Calibration level set to 114.0 or 94.0 dB |
External power option (5 Vdc) | Yes with CMC51 cable via USB socket |
Analog outputs | AC (and optional DC) via 2.5 mm jack socket |
AC output characteristics - (Provided for DAT tape / PC wav file recording or headphone applications) |
Approx 0.85V RMS FSD output on selected sound level measurement range. Minimum load impedance 22kW. |
DC output characteristics - (Provided at time of order as option for connection to chart recorder or pc data logging system) |
0 to 1.3V DC for FSD on selected range. Output corresponds to selected frequency and time weighting. 2kW Output impedance |
Digital output | USB 2.0 format of instantaneous sound level via ‘mini A’ USB socket (also powers meter) |
Digital output characteristics - (value output once per second) |
Instantaneous SPL output (software required) as per selected frequency and time weightings. |
Memory storage in up to 100 separate runs with date and time from internal real time clock |
Up to 65,000+ samples per run of fixed 1 sec. instant sound level to a max. of 419,000 samples |
