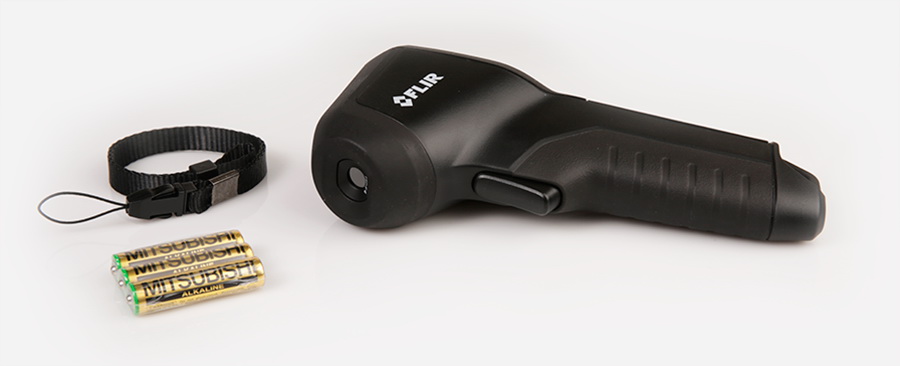

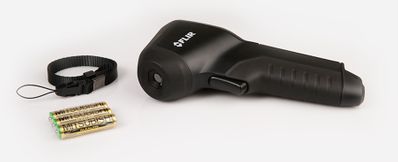

FLIR TG130 Spot Thermal Camera 80 x 60 Resolution / 9Hz - 74401-0104
Item #:
FL-74401-0104
Brand:
FLIR
Share this product:
74401-0104 TG130 Spot Thermal Camera 80 x 60 Resolution/9Hz by FLIR
Save money on heating and cooling energy costs with the FLIR TG130 Spot Thermal Camera. Quickly find and troubleshoot temperature-related issues around the house and solve problems fast.
Reduce energy costs
- Find heat loss around doors, floors, walls, pipes, or windows
- Locate spots where insulation is missing
- Find drafts
Solve household heating/cooling issues
- Check HVAC performance and functionality
- Discover electrical issues affecting home appliances
- Confirm that refrigerator settings are correct, and food is stored at a safe temperature
Point-and-click simplicity
- Pocket-portable size
- Ergonomic design
- Standard, easy-to-replace AAA batteries
| Imaging and Optical Data | |
| Field of View | 55° × 43° |
| Minimum Focus Distance | 0.1 m (4 in) |
| Image Frequency | 9 Hz |
| Focus | Focus Free |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Spectral Range | 7.5 - 14 μm |
| Display | 1.8 in. TFT LCD |
| Measurement | |
| Object temperature range | -10°C to +150°C (14 to 302°F) |
| Center Spot | Yes |
| Color Palettes | Iron |
| Emissivity Correction | No |
| General | |
| Battery Type | 3 x AAA (LR03) |
| Battery Operating Time | 4 hours continuous scanning |
| Power Management | Fixed, 5 min. |
| Operating Temperature Range | -10°C to +45°C (14 to 113°F) |
| Storage Temperature Range | -40°C to +70°C (-40 to 158°F) |
| Encapsulation | IP 40 (IEC 60529) |
| Drop Test | Designed for 2 m (6.6 ft.) |
| Certifications | CE/PSE/EN/UL/CSA 60950-1 |
| Weight | 0.21 kg (0.46 lb.) |
| Size (L x W x H) | 169 mm x 113 mm x 48 mm (6.6 in. x 4.4 in. x 1.9 in.) |
