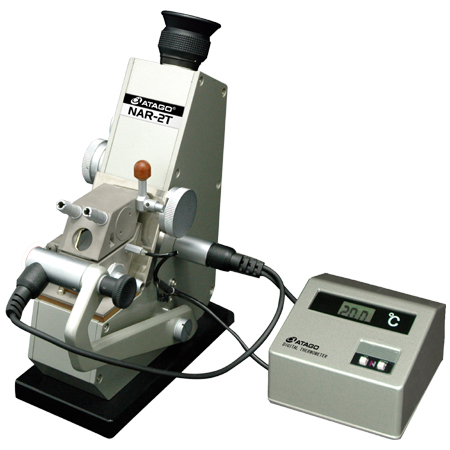

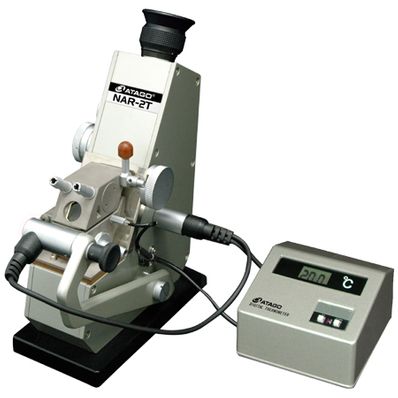

Atago Abbe Refractometer for high temperature and low refractive index measurement - NAR-2T LO
Item #:
NAR-2T-LO
Brand:
Atago U.S.A.
Share this product:
NAR-2T LO Abbe Refractometer for high temperature and low refractive index measurement by Atago U.S.A.
Abbe Refractometers for low refractive index and high refractive index measurements In addition to our standard Abbe Refractometer NAR-1T, 2T, 3T, 4T and DR-A1, we can supply the following Abbe models. We shall ask you to use them if the specifications of our standard Abbe Refractometers do not meet your requirements. Another Optional *We can supply Abbe Refractometer with measurement range of "nD 1.7000 to 2.0800" and with Measurement Temperature Range of "0 to 50°C" or "0 to 120°C".
Note : You are requested to convert measured refractive indices to "real refractive indices" (with referring to conversion tables), since the above Abbe Refractometers have the same scales as our standard Abbe Refractometer NAR-1T and 2T.
| Measurement Range | Refractive index (nD) 1.4700 to 1.8700 |
| Minimum scale | Refractive Index (nD) 0.001 |
| Measurement Accuracy | Refractive index (nD) ±0.0002 |
| Measurement Temperature Range | 5 to 120°C |
| Light Source | LED |
| Digital Thermometer | ±0.2°C |
| Power Supply | AC100 to 240V , 50/60Hz |
| Power Consumption | 5VA |
| Dimensions & Weight | 12×20×25cm, 5.8kg (Refractometer) 10×11×7cm, 0.5kg (Thermometer) |
| Optional | • Monobromona-phthalene as contact liquid : RE-1196 • Methylene iodide containing sulfur solution : RE-1199 * Calibration Certificate : Contact an ATAGO representative for details. |
| Parts | *Please inform us of a serial number in the case of an order. |
