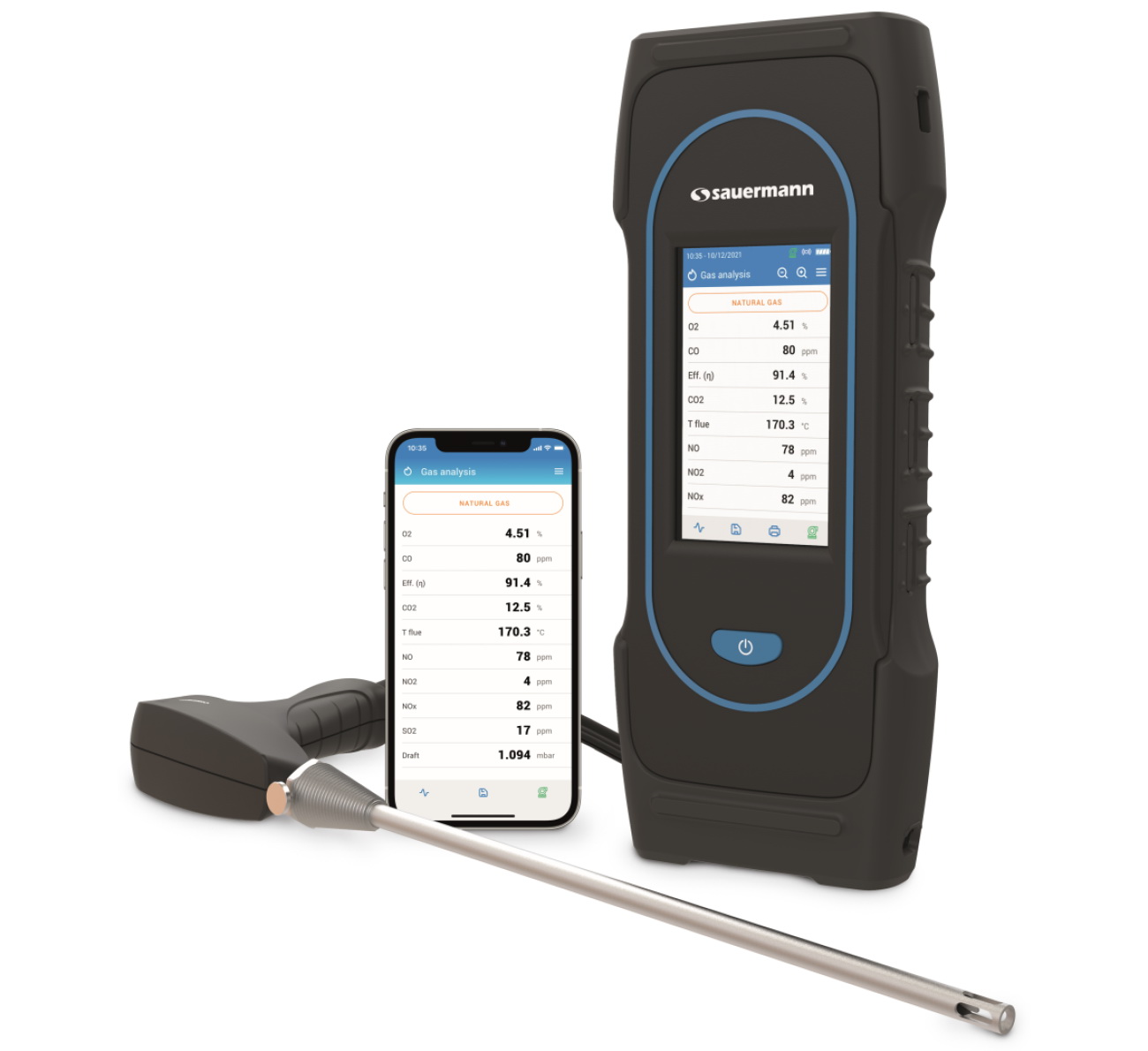

Sauermann Si-CA 230 Analyzer, four gas sensors (O2, CO, NO, NO2) - 27599

Item #:
SAU-27599
Brand:
Sauermann
Sauermann Si-CA 230 Analyzer, four gas sensors (O2, CO, NO, NO2) - 27599
$4,891.73
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Sauermann Si-CA 230 Analyzer, four gas sensors (O2, CO, NO, NO2) - 27599

Sauermann Si-CA 230 Analyzer, four gas sensors (O2, CO, NO, NO2) - 27599

$4,891.73

27599 Si-CA 230 Analyzer, four gas sensors (O2, CO, NO, NO2) by Sauermann

With double the number of cells and expanded measurement capabilities, the Si-CA 230 is suited to the most powerful industrial machines. And with support for more gases and a high CO tolerance threshold, its versatility makes it the ideal choice across residential, commercial and industrial applications.

  • Up to six gas sensors
  • Total NOx & Low NOx Capable
  • Field Replaceable Pre-Calibrated Sensors
  • Large Color Touch Screen
  • iOS and Android Mobile Apps for Real-Time Display & Control
  • CO Dilution auto-range with measurements to 50,000 ppm
  • Ergonomic, light weight, & durable design
  • Data management with automatic logging & report creation
  • Predictive maintenance with estimated sensor life & calibration reminders
  • One touch pump On/Off with purge
  • PC software with wireless and USB connectivity
  • Auto pump cut-off for high CO levels
  • Graphical data display
  • Customizable gas analysis screen
  • Sample conditioning unit for low NOx & high moisture applications
  • Stack gas velocity with Pitot tube
  • Draft & differential pressure measurements
  • Emissions values adjusted for reference O2
  • CO & CO2 Monitoring in Ambient Air
  • Hose extensions for tall & difficult to reach stacks
  • Wireless Printer
  • Protective rubber holster
  • Maintenance contracts and extended warranties available

Kit Includes:

  • 1 Si-CA 230 analyzer
  • 1 O2 gas sensors
  • 1 CO gas sensors
  • 1 CO Dilution Auto-Range to 50,000 ppm
  • 1 Protective rubber holster
  • 1 300 mm flue gas probe with 3 m dual hose (other probe lengths available)
  • 1 Water trap with filter
  • 1 AC power supply / charger
  • 1 USB cable
  • 1 Mobile app & PC software
  • 1 Internal wireless communication module
  • 1 Carrying case
  • 1 Quick Start Guide
  • 1 Calibration certificate
Parameter specifications
Parameter Sensor Measuring range Resolution Accuracy(1) response time
O2 Electrochemical 0 to 25% 0.01% ±0.2% vol T90 < 30 s
CO(H2 comp.) Electrochemical 0 to 10,000 ppm 1 ppm ±8 ppm < 160 ppm
±5% rdg up to 2000 ppm
±10% rdg > 2000 ppm
T90 < 40 s
CO (with dilution) Electrochemical 100 to 50,000 ppm 1 ppm ±10% rdg T90 < 40 s
CO2 Calculated 0 to 99.9% 0.1% - -
NO Electrochemical 0 to 5000 ppm 1 ppm ±5 ppm < 100 ppm
±5% rdg > 100 ppm
T90 < 40 s
Low NO Electrochemical 0 to 300 ppm 0.1 ppm ±1.5 ppm < 30 ppm
±5 % rdg > 30 ppm
T90 < 40 s
NO2 Electrochemical 0 to 1000 ppm 1 ppm ±5 ppm < 100 ppm
±5 % rdg > 100 ppm
T60 < 60 s
Low NO2 Electrochemical 0 to 100 ppm 0.1 ppm ±1.5 ppm < 30 ppm
±5% rdg > 30 ppm
T60 < 60 s
NOx Calculated 0 to 7500 ppm 1 ppm - -
Low NOx Calculated 0 to 450 ppm 0.1 ppm - -
SO2 Electrochemical 0 to 5000 ppm 1 ppm ±5 ppm < 100 ppm
±5% rdg > 100 ppm
T60 < 30 s
Low SO2 Electrochemical 0 to 100 ppm 0.1 ppm ±1.5 ppm < 30 ppm
±5% rdg > 30 ppm
T60 < 30 s
CxHy (HC) Pellistor 0 to 5% 0.01% ± 5% full scale T90< 40 s
H2S Electrochemical 0 to 500 ppm 0.1 ppm ±5 ppm < 100 ppm
±5% rdg > 100 ppm
T60 < 35 s
Flue temperature TcK -20 to +1250 °C
-4 to +2282 °F
0.1 °C
0.1 °F
±2 °C or ±0.5% rdg(2)
±3.6 °F or ±0.5% rdg(2)
-
Air temperature NTC or TcK -20 to +120 °C
-4 to +248 °F
0.1 °C
0.1 °F
±2 °C
±3.6 °F
-
Pt100 -40 to 250 °C
-40 to 482 °F
0.1 °C
0.1 °F
±(0.3% rdg ±0.25) °C
-40°F to 32 °F: ±(-0.3% rdg +0.6) °F
32°F to 482 °F: ±(0.3% rdg +0.4) °F
-
Differential temperature Calculated 0 to 1250 °C
0 to 2282 °F
0.1 °C
0.1 °F
- -
Pressure/Draft Semiconductor -200 to +200 mbar
-80 to +80 inH2O
0.01 mbar
0.001 inH2O
±1% rdg ±0.03 mbar
±1% rdg ±0.012 inH2O
-
High accuracy draft Semiconductor 500 Pa 0.1 Pa ±0.5 Pa < 10 Pa
±3 Pa up to 150 Pa
±1% rdg ±1.5 Pa > 150 Pa
-
Excess air Calculated 0 to 999% 1% - -
Efficiency Calculated 0 to 100% (Gross/ HHV(3)) 0.1% - -
Efficiency (condensation) Calculated 0 to 125% (Net/ LHV(4)) 0.1% - -
Stack Gas velocity Calculated 0 to 99 m/s
0 to 19,500 fpm
0.1 m/s
1 fpm
- -
(1) All accuracies indicated in this document were stated in laboratory conditions at 20 °C (68 °F) and can be guaranteed for measurement carried out in the same conditions.
(2) Accuracy given for the analyzer only.
(3) For Higher Heating Value / (4) For Lower Heating Value

General features
Dimensions
28 x 11.2 x 5.5 cm (11 x 4.3 x 2")
Weight
825 g (30 oz)
Display
Color Touch Screen with Graphing; Size: 480 x 272 pixels
Keypad
1 On-Off key
Material
ABS-PC
Protection
IP42
Connection
- Wireless: class 2 range, range frequency from 2402 MHz to 2480 MHz with a transmit power of 1 dBm.
Range up to 15 m (50 ft), depending on smartphone radio strength.
Minimum required versions: Android 8.0, iOS 12.4, BLE 4.0 Low Energy
- USB
Power supply
Rechargeable battery, USB power supply
Li-Ion 5100 mA/h 3.6 V battery / Power supply voltage of the mains unit: 100-240 Vac, 50-60 Hz
Mains unit: 5 Vdc/2A
Battery
Battery life > 8 h; Charging time: Fully charge: < 6.5 h; 50%: < 2.5 h
Memory
Internal memory up to 2000 tests
Environmental conditions of use
Temperature: from -5 to 45 °C (23 to 113 °F),
Hygrometry: in non-condensing conditions (< 85% RH)
Maximum altitude: 2000 m (6561')
Storage temperature
From -20 to 50 °C (-4 to 122 °F)
Languages
English, French, German, Spanish, Italian, Portuguese, Chinese
European Union Directives
2014/53/EU (RED); 2015/863 EU (RoHS 3)
Regulations
EN 50379-1 and EN 50379-2; UNI 7129; UNI 11137; UNI 10389; UNI 10845; UL & cUL Certification; BS 7967:2015; BS EN 50543:2011; UNE 60670-10; ES.02173.ES; TÜV SÜD Certification
