Oakton ECDOCTP2000PPG Instruments DO 2000 Polarographic DO Controller; 1/4-DIN, 80-250V - WD-53405-42
Item #:
WD-53405-42
Brand:
Oakton Instruments
Share this product:

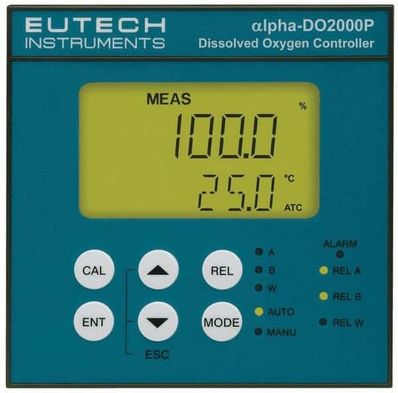

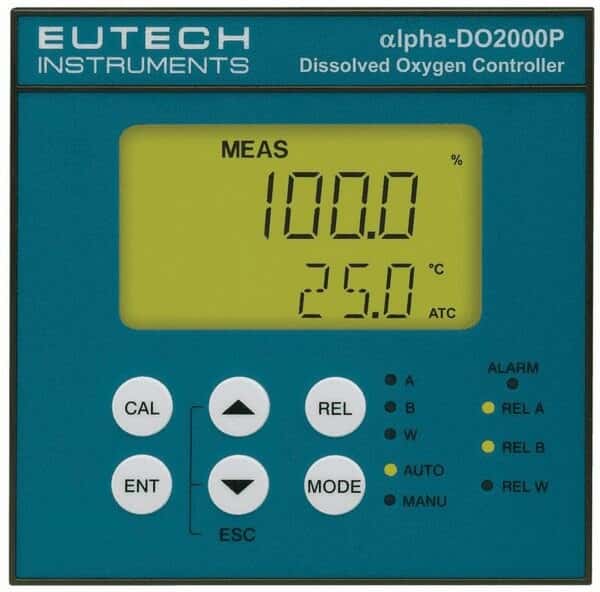

WD-53405-42 ECDOCTP2000PPG Instruments DO 2000 Polarographic DO Controller; 1/4-DIN, 80-250V by Oakton
The polarographic DO 2000 controller gives fast, reliable results with minimal flow rates and short polarization times. Polarographic, also referred to as amperometric, DO systems are commonly used in biological processes due to the compatibility of the probe materials.
The controller has four relays with time delay capabilities-- two set point relays, one wash relay, and one alarm relay. Dual-scalable 4 to 20 mA outputs for DO and temperature provide data for control or recording. Menu-driven setup program with three-level password protection provides easy and secure programming. UV-protected LCD with back lighting allows installation in wet environments and visibility in low light environments.
Packed with features for fermentation, aquaculture, or industrial applications
- On/off, proportional, and proportional-integral control mode options
- Ingress protection of NEMA 4X (IP66)
- 1% full-scale accuracy
| Control Type | On/Off |
| Display Type | LCD |
| Min Dissolved Oxygen (mg/L (ppm)) | 0 |
| Max Dissolved Oxygen (mg/L (ppm)) | 20 |
| Dissolved Oxygen Resolution | 0.01 |
| Dissolved Oxygen Accuracy | ±1.5% full-scale |
| Min Temperature (° C) | -10 |
| Max Temperature (° C) | 125 |
| Min Temperature (° F) | 14 |
| Max Temperature (° F) | 257 |
| Temperature Resolution | 0.1° |
| Temperature Accuracy | ±0.5°C |
| Temperature Compensation | Automatic or Manual |
| Salinity Compensation | Manual |
| Password Protection | Yes |
| Output Current | 0-20mA or 4-20mA (x2) |
| Width (cm) | 14.45 |
| Height (cm) | 14.45 |
| Width (in) | 5 11/16 |
| Height (in) | 5 11/16 |
| Depth (in) | 4 1/4 |
| Description | Instruments DO 2000 Polarographic DO Controller; 1/4-DIN, 80-250V |
