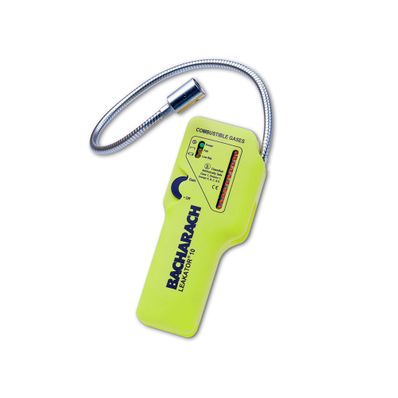

Bacharach Leakator 10 Combustible Gas Leak Detector with hard carrying case and instruction manual - 0019-7051

Item #:

0019-7051

Brand:

Bacharach

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

0019-7051 Leakator 10 Combustible Gas Leak Detector with hard carrying case and instruction manual by Bacharach

The MSA Bacharach Leakator® 10 is an ideal instrument for pinpointing combustible gas leaks in a number of residential, commercial and industrial applications, including gas pipeline surveying and valve, regulator or gas meter inspection. It uses a long-life (5 years typical) sensor and is easy to operate with one hand, giving you a reliable, easy-to-use tool.

The Leakator® 10 has a long, flexible neck for detecting leaks in hard-to-reach areas. The bright LED scale shows relative leak sizes, and a manual balance feature finds leaks in backgrounds where the target gas is present. It is UL 913 certified for hazardous locations, and carries a 1 year warranty that includes the sensor.

Features

Semiconductor Sensor Technology
Exchangable Sensor Located in Probe Tip
20 Inch Probe
Visual and Audible Leak Indicators

Benefits

Detects all combustible gases
Allows for ultimate sensitivity, fast response, and easy replacement
Allows for leak detection in hard-to-reach areas
Shows leak intensity through audible tick rate or visual LED scale

Specifications

Product Attributes	Description
GASES DETECTED	All hydrocarbons / combustible gases, including but not limited to: acetone, acetylene, benzene, butane, ethanol, gasoline, hexane, hydrogen, industrial solvents, methane, naptha, natural gas, paint thinners and propane
SENSITIVITY	20 ppm methane
RESPONSE TIME	< 3 seconds to full scale indication
LEAK INDICATORS	Visual (10 ultra-bright red LEDs) and audible (via internal speaker or optional earphone)
AUTOMATIC BACKGROUND ADJUSTMENT	No (manual)
POWER	5× C batteries
RUN TIME	30 hours typical (alkaline batteries)
SIZE (H × W × D)	Unit: 8.5 × 3.5 × 1.75 in. (21.6 × 8.9 × 4.4 cm) Probe: 20 in. (50.8 cm)
WEIGHT	12 oz (340 g) without batteries
SENSOR LIFE	5 years (typical)
OPERATING CONDITIONS	23 to 130 °F (-5 to 54 °C), 10 to 85% RH (non-condensing), 1 ATM
WARM-UP TIME	1 minute (approximate)
APPROVALS	UL 913 Class 1, Division 1, Groups A, B, C & D
WARRANTY	1 year (including sensor)
