Testo 512-1 - Digital Differential Pressure Measuring Instrument with App connection - 0563 1512

Item #:
0563-1512
Brand:
Testo
$550.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:

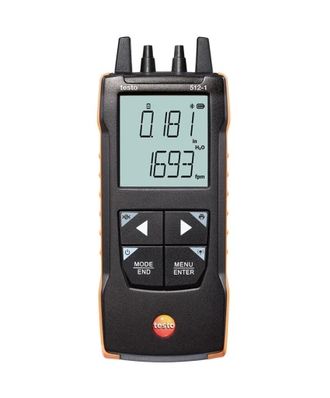

Testo 512-1 - Digital Differential Pressure Measuring Instrument with App connection - 0563 1512

Testo 512-1 - Digital Differential Pressure Measuring Instrument with App connection - 0563 1512

$550.00

0563 1512 512-1 - Digital Differential Pressure Measuring Instrument with App connection by Testo

Differential pressure measurements fast, easy and precise: This is what the testo 512-1 and testo 512-2 measuring instruments stand for. The two models differ in their measuring range: testo 512-1 measures up to 80 in H2O, and the testo 512-2 up to 800 in H2O.

In practical use, they convince with their flexibility and variety of applications. Checking the gas pressure on burners by measuring gas flow pressure and static gas pressure is just as quick and precise as checking filters and Pitot tube measurement in the ventilation duct.

The position-independent differential pressure sensor ensures reliable and highly accurate measurement results in both instruments. The testo Smart App for smartphones and tablets supports you with these functions:

  • Configure measuring instrument
  • Display graphical measured value curve
  • Save measurement data
  • Manage customers and measuring points
  • Documentation on site
  • E-mail dispatch of the report
  • Second screen display (via Smart App)

  • testo 512-1 with position-independent differential pressure sensor with high accuracy up to 80 inH20 for checking filters and for Pitot tube measurement in the ventilation duct, incl. volume flow calculation in measuring instrument and App
  • testo 512-2 with a large measuring range up to 800 in H2O
  • Fast in-app (duct) configuration, graph history, second screen and measurement data memory in the testo Smart App
  • Audible alarm sounds if a limit value is exceeded
  • Durability through compact design with robust housing

testo 512-1
testo 512-2
Differential pressure sensor
Measuring range
0 to +80 In H2O
0 to +800 In H2O
Accuracy ±1 digit
±(0.001 In H20 + 1% of m.v.) ±1 digit (0 to 10 In H2O)
±(0.04 In H20 + 1.5% of m.v.) ±1 digit (10.01 to 80 In H2O)
0.5 %fs
Resolution
0.001 In H2O
1 In H2O
General technical data
Operating temperature
-4° to 122 °F
Storage temperature
-4° to 122 °F
Battery type
3 x AA
Battery life
120 h
Dimensions
5.4 x 2.4 x 1.1 in
Weight
0.42 lbs
0.42 lbs
Protection class
IP40
Housing material
ABS + PC / TPE
