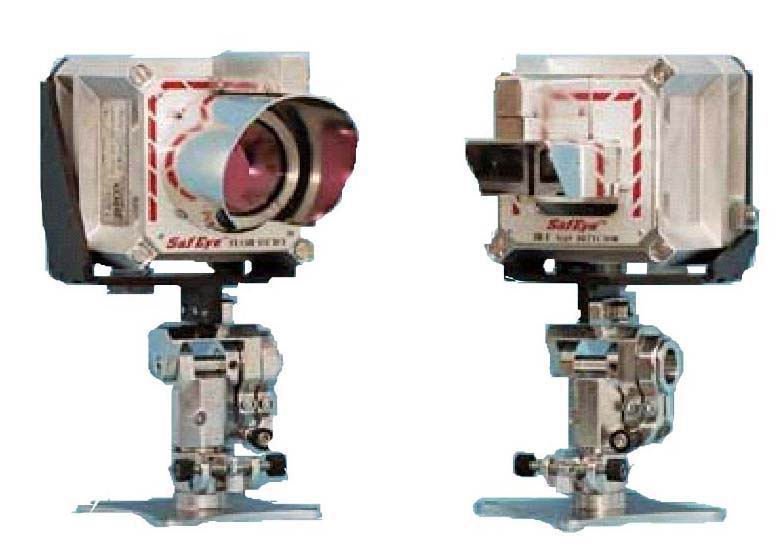

Crowcon Hydrocarbon Open Path Detector (10-40 m), Xenon Flash

Item #:
203ST
Brand:
Crowcon
Crowcon Hydrocarbon Open Path Detector (10-40 m), Xenon Flash
$10,350.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Crowcon Hydrocarbon Open Path Detector (10-40 m), Xenon Flash

Crowcon Hydrocarbon Open Path Detector (10-40 m), Xenon Flash

$10,350.00

203ST Hydrocarbon Open Path Detector (10-40 m), Xenon Flash by Crowcon

Open Path IR or "line of sight" optical gas detectors offer reliable detection of hydrocarbon gas emmissions over large areas. OPIR detectors detect gas hazards ranging from low level Parts Per Million (PPM) levels to Lower Exposure Limit (LEL) levels in hazardous areas.

Features:

  • Hydrocarbon and H2S versions available
  • Explosion proof to ATEX, UL and GOST-R Standards
  • Choice of models for ranges of 0.6m up to 140m
  • Aluminium or stainless steel construction
  • 4-20mA or RS-485 operation, with alarm and fault relays available
GENERAL SPECIFICATIONS
Detection Range and Response Time
Model No. 202/252 203/253 204/254 226/256 227/257
Distance (ft) 9.8-39 33-131 50-198 98-295 164-460
Distance (m) 3-12 10-40 15-60 30-90 50-140
Response Time 2 sec. 5 sec. 5 sec. 5 sec. 5 sec.
Detected Gases C1-C8 flammables by models 202-227, Ethylene / LPG by models 252-257.
Immunity to False Alarm Is not influenced by solar radiation, hydrocarbon flames and other external IR radiation sources.
Spectral Response 3.0-4.0 ?m
Sensitivity Range 0-5 LEL.m Standard
0-2 LEL.m by dip-switch setting
Displacement/Misalignment Tolerance ±1°
Drift Long-term ±5% of full scale
Temperature Range -40°F (-40°C) to 131°F (55°C)
ELECTRICAL SPECIFICATIONS
Power Supply Standard - 24 VDC (18-32 VDC)
Power Consumption Detector: 150mA @ 24 VDC (200 mA Peak)
Source: 100mA @ 24 VDC (220 mA Peak)
Electrical Connection 2 x 3/4? - 14NPT conduits
or 2 x M25 x 1.5 mm ISO
Electrical Input Protection Complete electrical interface protection against reversed polarity voltage, surges and spikes according to MIL-STD-1275A
Electromagnetic Compatibility EMI/RFI protected CE Marked
OUTPUTS
4-20mA The 4-20mA current output is source configuration
Resistance Loop 100-600
RS-485 Serial communication for full control with maintenance and trouble shooting facility can be integrated for a network of max 64 detectors
Relays
  Type Normal Position Maximum Ratings
Alarm SPDT NO, NC 2A at 30VDC or 0.5 at 250 VAC
Accessory SPST Open 5A at 30VDC or 250VAC
Fault SPST Closed 5A at 30VDC or 250 VAC
MECHANICAL SPECIFICATIONS
Dimensions 5.2" (132mm) x 5.2" (132mm) x max. 11" (280mm)
Weight Detector: max 8.8 lb (4 kg) Source: max 10.8 lb (4.9 kg)
Detector: max 14.3 lb (6.5 kg) Source: max 16.7 lb (7.6 kg)
Mechanical Design The standard detector housing is heavy-duty, copper-free (less than 1%) aluminum. The housing is finished in white epoxy enamel and is also available in 316L Stainless Steel* upon request. * Carries an additional charge.
Environmental Standards Meets MIL-STD-810C for Humidity, Salt & Fog, Vibration, Mechanical shock, High Temp, Low Temp
Water and Dust Tight IP66 and 67
NEMA 250 6P
HAZARDOUS AREA APPROVALS
ATEX / Cenelec EX II 2G EExd IIB + H2 T6 (55°C)
EX II 2G EExde IIB + H2 T6 (55°C)
UL UL No. - E209870, Class I Groups C and D Hazardous Location
GOST R Approved
