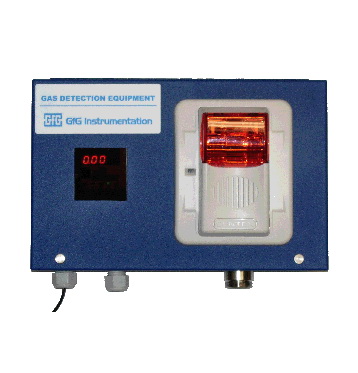

2492-025 Dynagard 25 for CO2 Stand-Alone System with IR 24 Transmitter for Detecting Carbon Dioxide (CO2) from 0-25% vol. and GMA 41B Single Channel Controller by GfG

Simple and Effective

The Dynagard 25 Series accurately measures CO2 levels. The unit offers a local display, a horn / strobe, and a linear 4-20 mA output. The Dynagard 25 Series offers a safe and reliable gas warning system.

Alarm Points

Each alarm can be adjusted separately. The alarm point values can be freely adjusted within the detection range of the transmitter. Every alarm point value can be set to over range / under range, latching / non-latching, or resettable / non-resettable.

Alarm Relays

The controller provides four voltage-free relays for the three alarms and one fault warning. The relays may be used to control additional alarm devices like lights or horns. They can even prompt specific counter measures to prevent or limit dangers from gases or vapors.

IR 24 Detection Principle: Infrared Light

Since carbon dioxide (CO2) absorbs light in the infrared spectral range, the NDIR method used in the GfG sensor can measure the carbon dioxide concentration precisely and reliably. Infrared light is sent through the sensor chamber. Carbon dioxide absorbs a part of this light in a narrow spectral range, and the remaining light is measured at the detector. The difference between the light sent and received is proportional to the gas concentration. Water vapor or other gases that can be present in the sensor chamber do not affect the light absorption in this spectrum band.

Features

  • Easy installation
  • Local display and horn / strobe
  • Adjustable alarm points
  • On-board relays for external controls
  • 4-20 mA output
Gases Carbon Dioxide(CO2)
Detection range 0-5% volume
Detection principle IR
Expected sensor life

3 Years +

Gas supply Diffusion
Humidity 0 to 99% r.h. non-condensing
Tempreture range 32 to 122 °F / 0 to 55 °C
Pressure 920 to 1100 hPA
Power supply 24 VDC wall pack
Weight 6.5 lbs (2.95 Kg)
Display 3-digit LED display for linear measurement values, service
1 LED green - operational status
1 LED yellow - fault
3 LEDs red - alarm
Display of maximum / minimum values
Alarms 3 Alarm points user adjustable with the detection range
Alarm function available Over range / under range
Latching / non- latching
Resettable / non-resettable
Hysteresls adjustable
Delay-time 0 to 2 minutes
Alarm thresholds adjustable
Relays 3 alarm points, 1 fault - voltage free
Factory setting
A1 - strobe
A2 - open
A3 - horn
Fault - open
Voltage : 250 VAC 50/60 Hz or 250 VDC maximum
Output signal Linear 4-20 mA
Horn >Low - 70 dB at 10 ft. per UL 464
High - 83 dB at 10 ft. per UL 464
Strobe Light output on axis (cd)
Low - 35
High - 68
Dimensions 11x7x2.75 Inches (27.9x17.8x7 cm) (HxWxD)
