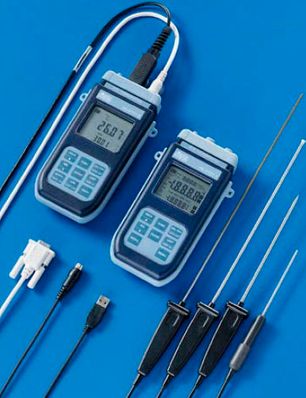

Delta OHM Pt100 Sensor Portable Thermometer with Large LCD Display - HD 2107.2

Item #:

DLTOHM-HD2107-2

Brand:

Delta OHM

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

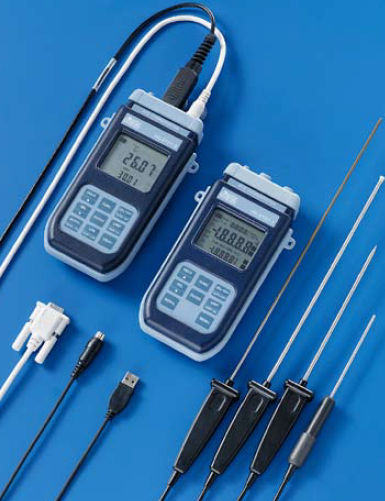

HD2107.2 Pt100 Sensor Portable Thermometer with Large LCD Display by Delta OHM

HD2107.1 and l’HD2107.2 are portable instruments equipped with large LCD display fitted with one input. HD2127.1 and HD2127.2 are instruments fitted with two inputs. They measure temperature by means of immersion, penetration, contact or air probes. Their sensor can be Pt100 with 3 or 4 wires, Pt1000 with 2 wires. They have centesimal resolution in the range ± 199.99°C, decimal in the rest of the range.

Probes are equipped with an automatic recognition module: factory calibration data are stored inside.

The instruments HD2107.2 and HD2127.2 are data loggers; they store up to 80.000 samples which can be transferred into a PC connected to the instrument through the serial ports RS232C and USB 2.0. It is possible to configure the storage interval, the printing and the baud rate by the menu.

All models are equipped with RS232C serial port and are able to transfer the acquired measures, in real time, to a PC or a portable printer.

Functions Max, Min and Avg calculate maximum, minimum and average values.

Further functions are: REL relative measure, HOLD and automatic switching-off system, excludable.

Instruments have IP66 protection degree.

Specifications

Technical Specification of the Instrument

Instrument
Dimensions (Length x Width x Height)	185x90x40mm
Weight	470g (complete with batteries)
Materials	ABS, rubber
Display	2x4½ digits plus symbols Visible area: 52x42mm
Operating conditions
Operating temperature	-5 … 50°C
Storage temperature	-25 … 65°C
Working relative humidity	0 … 90% RH, no condensation
Protection degree	IP66
Power supply
Batteries	4 Batteries 1.5V type AA
Autonomy	200 hours with 1800mAh alkaline batteries
Current consumption with instrument off	20μA
Unit of measurement	°C - °F - °K
Security of stored data	Unlimited, independent of battery charge conditions
Time
Date and time	In real time
Accuracy	1min/month max drift
Measured values storage for model HD2107.2
Type	2000 pages containing 40 samples each
Quantity	Total of 80000 samples
Storage interval can be selected between	1,5,10,15,30 s.; 1,2,5,10,15,20,30 min.;1 hour
Measured values storage for model HD2127.2
Type	2000 pages containing 16 pairs of samples each
Quantity	Total of 32000 samples (channel A + channel B)
Storage interval can be selected between	1,5,10,15,30 s.; 1,2,5,10,15,20,30 min.;1 hour
Serial interface RS232C
Type	RS232C galvanic isolated
Baud rate	can be set from 1200 to 38400 baud
Data bit	8
Parity	None
Stop bit	1
Flow Control	Xon/Xoff
Serial cable length	Max 15m
Print interval	Immediate or selectable between: 1,5,10,15,30 s.; 1,2,5,10,15,20,30 min.; 1 hour
USB interface - model HD2107.2, HD2127.2
Type	1.1 - 2.0 galvanic isolated
Connections
Input module for the probes	8-pole male DIN45326 connector
RS232C serial interface	8-pole MiniDin connector
USB interface	Type B MiniUSB connector
Mains adapter	2-pole connector (positive at centre)
Measurement of temperature by Instrument
Pt100 measurement range	-200…+650°C
Pt1000 measurement range	-200…+650°C
Resolution	0.01°C in the range ±199.99°C 0.1°C in the remaining range
Accuracy	±0.01°C
Drift after 1 year	0.1°C/year

Temperature probes Pt100 sensor with SICRAM module

Model	Type	Application field	Accuracy
TP472I	Immersion	-196°C…+500°C	±0.25°C (-196°C…+300°C) ±0.5°C (+300°C…+500°C)
TP472I.0 1/3 DIN Thin Film	Immersion	-50°C…+300°C	±0.25°C (-50°C…+300°C)
TP473P.I	Penetration	-50°C…+400°C	±0.25°C (-50°C…+300°C) ±0.5°C (+300°C…+400°C)
TP473P.0 1/3 DIN Thin Film	Penetration	-50°C…+300°C	±0.25°C (-50°C…+300°C)
TP474C.I	Contact	-50°C…+400°C	±0.3°C (-50°C…+300°C) ±0.5°C (+300°C…+400°C)
TP474C.0 1/3 DIN Thin Film	Contact	-50°C…+300°C	±0.3°C (-50°C…+300°C)
TP475A.0 1/3 DIN Thin Film	Air	-50°C…+250°C	±0.3°C (-50°C…+250°C)
TP472I.5	Penetration	-50°C…+400°C	±0.3°C (-50°C…+300°C) ±0.6°C (+300°C…+400°C)
TP472I.10	Penetration	-50°C…+400°C	±0.30°C (-50°C…+300°C) ±0.6°C (+300°C…+400°C)
TP49A.0 Class A Thin Film	Immersion	-70°C…+250°C	±0.3°C (-70°C…-50°C) ±0.25°C (-50°C…+250°C)
TP49AC.0 Class A Thin Film	Contact	-70°C…+250°C	±0.3°C (-70°C…-50°C) ±0.25°C (-50°C…+250°C)
TP49AP.0 Class A Thin Film	Penetration	-70°C…+250°C	±0.3°C (-70°C…-50°C) ±0.25°C (-50°C…+250°C)
TP875.I	Globe-thermometer Ø150mm	-30°C…+120°C	±0.25°C
TP876.I	Globe-thermometer Ø50mm	-30°C…+120°C	±0.25°C
TP87.0 1/3 DIN Thin Film	Immersion	-50°C…+200°C	±0.25°C
TP878.0 1/3 DIN Thin Film TP878.1.0 1/3 DIN Thin Film	Photovoltaic	+4°C…+85°C	±0.25°C
TP879.0 1/3 DIN Thin Film	Compost	-20°C…+120°C	±0.25°C

4 wires Pt100 and 2 wires Pt1000 Probes

Model	Type	Application field	Accuracy
TP47.100.0 1/3 DIN Thin Film	4 wires Pt100	-50…+250°C	1/3 DIN
TP47.1000.0 1/3 DIN Thin Film	2 wires Pt1000	-50…+250°C	1/3 DIN
TP87.100.0 1/3 DIN Thin Film	4 wires Pt100	-50…+200°C	1/3 DIN
TP87.1000.0 1/3 DIN Thin Film	2 wires Pt1000	-50…+200°C	1/3 DIN
