E Instruments E4500-C Industrial Combustion Gas & Emissions Analyzer, CxHy/HC (0-5%)

Item #:
E4500-C
Brand:
E Instruments
E Instruments E4500-C Industrial Combustion Gas & Emissions Analyzer, CxHy/HC (0-5%)
$4,355.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
E Instruments E4500-C Industrial Combustion Gas & Emissions Analyzer, CxHy/HC (0-5%)

E Instruments E4500-C Industrial Combustion Gas & Emissions Analyzer, CxHy/HC (0-5%)

$4,355.00

E Instruments E4500-C Industrial Combustion Gas & Emissions Analyzer, CxHy/HC (0-5%)

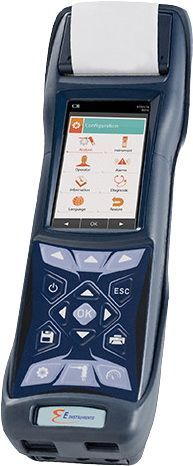

The E4500 is a NEW hand-held industrial combustion gas and emissions analyzer that is a valuable tool designed for emissions monitoring and maintenance and tuning of combustion processes including boilers, burners, gas and diesel engines, turbines, furnaces, kilns, heaters, and laboratory analysis.

E4500 features include the following:

  • Up to Four Gas Sensors: O2, CO, NO, NO2, SO2, CxHy
  • Dilution Pump For CO Auto-Range Measurements Up To 50,000 ppm
  • Low NOx Capable with 0.1ppm resolution & high accuracy
  • Gas Sensors are Pre-Calibrated & Field Replaceable
  • Full Color Graphic Display Screen
  • User Customized Display Screen & Print-Out Content
  • Automatic Data Saving
  • Efficiency, Excess Air, & CO2 Calculations
  • Built-In Printer (non-fading paper)
  • Stack Gas & Air Temperature Measurements
  • Draft & Differential Pressure Measurements
  • External Water Trap for Condensate Removal
  • Rechargeable Lithium Ion Battery Pack
  • Unbreakable Metal Hose Connectors
  • Internal Memory (up to 2000 tests) with data tags
  • PC Software Package with USB & Bluetooth Communications
Parameter
Sensor
Range
Resolution
Accuracy
O2 Electrochemical 0 - 25% 0.1% ±0.2% vol
CO H2 Compensated w/ Built-in NOx Filter Electrochemical 0 - 8000 ppm 1 ppm ±10 ppm (0 - 200ppm)
±5% rdg (201 - 2000ppm)
±10% rdg (2001 - 8000ppm)
CO DILUTED Electrochemical 0.8% - 5.00% 0.01% ±10% rdg
CO2 Calculated 0 - 99.9% 0.1 %
NO Electrochemical 0 - 5000 ppm 1 ppm ±5 ppm (0 - 100 ppm)
±5% rdg (101 - 5000ppm)
NO2 Electrochemical 0 - 1000 ppm 1 ppm ±5 ppm (0 - 100 ppm)
±5% rdg (101 - 1000ppm)
Low NO and/or Low NO2 Electrochemical 0 - 500 ppm 0.1 ppm ±2 ppm (0.0 - 40.0ppm)
±5% rdg (40.1 - 500.0ppm)
NOx Calculated 0 - 5000 ppm 1 ppm
SO2 Electrochemical 0 - 5000 ppm 1 ppm ±5 ppm (0 - 100ppm)
±5% rdg (101 - 5000ppm)
CxHy (HC) Pellistor 0 - 5% 0.01% ±5% Full Scale
Tair Pt100 -10 to 212 °F
-10 to 100 °C
0.1°F
0.1°C
±0.1°F
±0.1°C
Tgas Tc K -4 to 2280 °F
-20 to 1250 °C
0.1°F
0.1°C
±0.5 °C (-20 to 100 °C)
±0.5% rdg (101 to 1250 °C)
Pressure/Draft Semiconductor ± 0 - 80 in H2O 0.001 in H2O ±1.0% rdg
Excess Air Calculated 0 - 850% 1 %
Efficiency Calculated 0 - 100% 0.1%
