Fortic TK8 Industrial Grade Thermal Camera, Manual Focus, IR resolution 384*288, Temperature Range -20C to 350C, Lens 25deg
Item #:
FOTRIC-TK8-L25
Brand:
Fotric
Share this product:

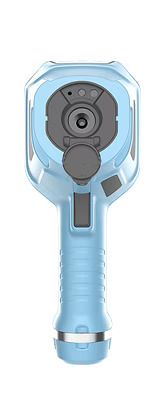

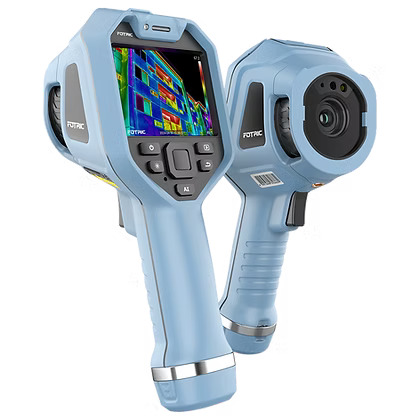

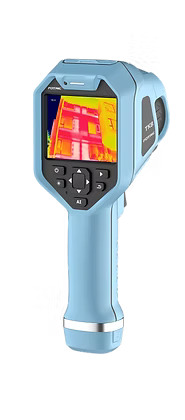

TK8 Industrial Grade Thermal Camera, Manual Focus, IR resolution 384*288, Temperature Range -20C to 350C, Lens 25deg by Fotric
With Manual Focus for precise measurements at any distance and a robust build featuring 384x288 IR resolution and 40mK Thermal Sensitivity, FOTRIC TK8 is designed to be your gateway to professional thermography. Its user-friendly Android interface ensures an intuitive experience, while the choice of 25 degree lens options caters to diverse industries, from building inspections to HVAC and electric distribution. Plus, easily import inspection data into the AnalzyIR software via WiFi and generate reports with a single click.
Accurate Temperature Measurement
- Manual focus, ensures concise measurement at all distances.
- 49° wide angle shot, to always see the big picture. Help you infer the root of the thermal anomaly.
- 40mk thermal sensitivity, unveil subtle flaws. No damp spot ever escapes your sight.
Superior Image Quality
- 384*288 thermal pixels, presenting your findings with unprecedented clarity.
- Super resolution, boost the performance to expert level.
- T-DEF® Blend 0~100% adjustable transparency. Select the best way present your finding.
- Touch span to highlight the anomaly against the environment.
Robust and Intuitive Design
- Function shortcut button, tailor what the camera does to what you need.
- Spacious 3.5" LCD touch screen that enable both screen and button operation.
- 8MP industrial grade digital camera, enables flawless inspection result presentation.
- Dust and water resistant (IP54), made for durability and industrial adaptability.
Unparallel Response Speed
- Powered by Android, it flows as smoothly as your smartphone.
- Fluent remote control with every operation system (Windows, MacOS, Android, IOS), so you can access your work from everywhere.
TK8 |
TK7 |
|
| Core Parameters | ||
| Thermal Resolution | 384*288 |
|
| Super Resolution(SR) | Support |
|
| IR Detector Type | Uncooled FPA infrared detector |
|
| Thermal Sensitivity (NETD) | 40mk(0.04° C)(86 °F) |
|
| Detector Pitch | 17μm |
|
| Spectral Range | 8-14μm |
|
| Frame Rate | 30Hz |
|
| Field of View (FOV) | 25° *19° |
49° *37° |
| IFOV | 1.14 mrad |
2.23 mrad |
| Minimum Focus Distance | 0.15m |
0.4m |
| Focal Length | 15mm |
8mm |
| Focus Mode | Manual focus |
Focus free |
| Digital Zoom | 1-8x, continuous |
|
| Temperature Analysis | ||
| Complete Temperature Range | -20~550°C (-4~1022 °F) |
|
| Temperature Range | -20~120°C (-4~248 °F),0~550°C (32~1022 °F), Intelligent range. |
|
| Measurement Accuracy | ± 2°C (3.6 °F) or ± 2 %, whichever is greater(ambient temperature at 15~35° C(59~95 °F), target object temperature >0°C, calibration at 1 meter) |
|
| Measurement Tools | Spot:6; Line:3; Rectangle/Circle:4 |
|
| Measurement Parameters | Emissivity, Ambient Temp, Partial Emissivity, Reflected Temp, Relative Humidity, Distance, IR Window Compensation. |
|
| Partial Emissivity | Support |
|
| ROI Alarm | Support |
|
| Delta T/Temperature Rise | Support |
|
| On Device Analysis | Support On-device Radiometric Image Analysis |
|
| PC Software | AnalyzIR |
|
| Image Display | ||
| Display Screen | 3.5 inch Touch Screen |
|
| Image Mode | Thermal image, Visible light, Picture in Picture & T-DEF® Blend |
|
| Palette | 8: Grey, Iron, Rainbow, GreyRed, Rain, GlowBow, Medical, Prism |
|
| Inverted Palettes | Support |
|
| Minimum Temperature Span | Auto:3° C (5.4 °F), Manual and Touch:2° C (3.6 °F) |
|
| Color Alarm | Support |
|
| Image Overlay | Max, min, avg temperature and measurement parameters |
|
| Hot and Cold Spot Tracing | Automatic recognition and tracing |
|
| T-DEF® | Adjustable transparency 0% ~100% |
|
| T-TWB® | Tempetrature visual representation normalization option |
|
| PIP | Moveable and Resizable |
|
| Capture Functions | ||
| Digital Camera | 8 MP industrial camera |
|
| Storage Card | TF card, 32GB, expandable to 128GB |
|
| Single frame capture | Support |
|
| Image Format | JPEG |
|
| Video Format | MP4 |
|
| Freeze Image | Support |
|
| QR Code | Support |
|
| Voice Annotation | Support (120 seconds) |
|
| Text Annotation | Support |
|
| Tags | Support |
|
| Favorite | Support (filter favorite files) |
|
| MP4 Recording | Support |
|
| Gallery | Support viewing, editing and deleting existing files |
|
| Data Connection | ||
| WiFi | Support 2.4GHz&5GH channel, Support 802.11a/b/g/n/ac |
|
| Bluetooth | Support |
|
| USB | USB Type-C type; USB 3.0 / 2.0 compliant, Support USB OTG |
|
| HDMI | Micro HDMI type,HDMI 1.4 compliant,Support 1080P imaging video streaming in 60Hz. |
|
| Remote Access | Support |
|
| Remote Control | Mobile and PC webpage access via IRExplorer. |
|
| Auxiliary Features | ||
| Software and Firmware Upgrade | TF card upgrade |
|
| Laser | Level 2; wavelength: 635nm; Power: <1mW |
|
| LED Flash Lamp | Support, serves as lamp and flash light |
|
| Power System | ||
| Battery | Rechargeable Li-ion, 3.6V, 5000mAh |
|
| Battery Operation Time | ≥ 4 hours |
|
| Charging Methods | Support battery dock adaptor and Type-C interface (compatible with cell phone charger). |
|
| Battery Charging Time | 3.5 hours to full-charge by battery dock. 2.5 hours to full-charge by connect to camera. |
|
| Energy Save | Auto Screen-off |
|
| External Power Source | Type-C connect to PC or Power adaptor (5V, 3A) |
|
| Reliability and Certificates | ||
| Safety | SELV relay (IEC60950-1) |
|
| EMC Compatibility | IEC 61000-4-2 |
|
| Enclosure Rating | IP54 |
|
| Drop | 2m(IEC 60068-2-32) |
|
| Shock | 25g(IEC 60068-2-27) |
|
| Vibration | 2g(IEC 60068-2-6) |
|
| RoHS Compliant | Yes |
|
| Physical Parameters | ||
| Operation Temperature | -20~50°C (-4~122 °F) |
|
| Storage Temperature | -40~70°C (-40~158 °F) without battery |
|
| Relative Humidity | <95%RH |
|
| Dimension (mm) | 243*95*142mm |
|
| Weight (include battery) | 0.8kg |
|
| Battery Weight | 0.15kg |
|
| Casing Material | Hard Plastic :PC+ABS, Soft Rubber:TPE |
|
| Mounting Method | Support UNC 1/4-20 interface connecting tripod |
|
| Warranty | ||
| Warranty | 2 years |
|
| Recommended Calibration Cycle | 2 years |
|
| Language | ||
| Supported Language | English, Spanish, French, Korean, Traditional Chinese, Japanese, Italian, German, Portuguese, Thai |
|
| Configurations | ||

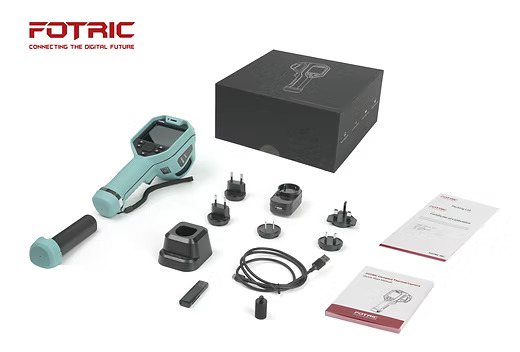

| Standard Configuration | FOTRIC handheld thermal camera, documentations (certificate of quality, certificate of calibration, warranty card, packing list), user manual, USB-Type C cable, TF card TF card reader,
power adaptor, 2 piece of battery. |
|
