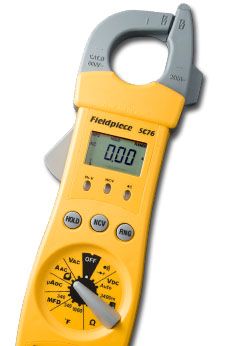

SC76 Temperature and Capacitance Clamp Meter by Fieldpiece

The SC76 has most parameters for electrical and thermal HVACR testing in one meter. It includes a host of safety features like a high-voltage LED and beeper, a continuity warning, push button non-contact voltage (NCV), a lead holder with detachable leads, and alligator probe tips for easy one-handed testing. As far as ranges go, the SC76 clamp meter has temperature, capacitance, microamps DC for flame diode tests, and everyday electrical ranges for HVACR. Many technicians tell us they enjoy the choice between manual and auto-ranging. It's a lower priced all-in-one clamp meter for technicians who don't need the backlight or True RMS functions. It's a rugged workhorse you can count on to get the job done easier, faster, and more safely.

Designed specifically for HVACR field service, the SC76 is a dedicated DMM and offers specific features and benefits to help HVACR professionals do more, everyday:

Works with Fieldpiece Accessory Heads
Non-contact Voltage
High Voltage and Continuity Indicators
300AAC
Capacitance (MFD)
Temperature up to 1000 degrees F
Microamps DC - Flame Rectification Tests
Silicone Leads with Detachable Probe Tips
Hold
Volts AC
Volts DC
Resistance (Ohms)
Diode Test
Rugged ABS case
Auto power-off
Lead storage on back
Safe one-handed testing

The SC76 is a rugged HVAC/R meter through and through. Like all of our instruments, we designed this meter exclusively fit the way you do your job.

Includes

HVAC/R Clamp Meter with Temperature and Capacitance - SC76
Wrap Tab K-Type Thermocouple - ATB1
Silicone Test Leads - ASLS2
Large Single Meter Case - ANC7
9-Volt Battery (installed)
Operator's Manual>

Specifications

General Specification
Display	LCD with a maximum reading of 3400.
Analog bar graph	34 segments with measurements 20 times per second.
Data Hold	Operating on all ranges
Range(RNG)	Operating on all autoranges
Overrange	"OL" mark indication.
Auto power off	Approx. 10 minutes
Measurement rate	2 times per second, nominal.
Operating environment	32 to 122°F (0 to 50°C) at <70% R.H.
Storage temperature	-4 to 140°F (-20 to 60°C), 0 to 80% R.H. with battery removed.
Accuracy	Specifications good in ambient conditions of 73°F ±9°F (23°C ±5°) , <75% relative humidity.
Temperature Coefficient	0.1×(specified accuracy) per °F/°C; 32 to 64°F (0 to 19°C); 82 to 122°F (28 to 50°C).
Altitude	6561.7 Feet (2000m)
Jaw opening capability	38mm conductor
Power	Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
Battery life	300 hours typical with alkaline.
Accessories	One pair test leads, one pair of small alligator clips, ktype thermocouple, 9V battery (installed), and operating instructions.
Safety	UL, CE, Cat III 600V, IEC 61010-1 (EN61010-1) and IEC61010-2-032 (EN61010-2-032).
DC volts
Ranges	340mV, 3400mV, 34V, 340V, 600V
Resolution	0.1mV
Accuracy	±(0.5% rdg + 1 dgt)
Input impedance	3MΩ on V inputs, 10MΩ on mV input
Overload protection	600VDC or AC rms
Normal mode rejection ratio	: >50dB @ >49H
Common mode rejection ratio	>120dB up to 1000VDC
Transient protection	6kV for 10μ sec
AC volts(50Hz - 500Hz)
Ranges	3.4V, 34V, 340V, 600V
Resolution	1mV
Accuracy	±(2.0% rdg + 4 dgts) 50 ~ 500Hz
Input impedance	3MΩ
Overload protection	600V DC or AC rms
Transient protection	6kV for 10μ sec
AC current(50Hz - 60Hz)
Ranges	34A, 300A
Resolution	0.01A
DC Accuracy	±(3.0% rdg + 5 dgts) 0 ~ 300A / 50 ~ 60Hz
Overload protection	300AAC
DC current
Ranges	340μA, 3400μA
Resolution	0.1μA
Accuracy	±(1.0% rdg + 1 dgt)
Voltage burden	1V, (8V on 3400μA range)
Overload protection	500VDC or AC rms
Resistance
Ranges	340Ω, 3.4kΩ, 34kΩ, 340kΩ, 3.4MΩ, 34MΩ
Resolution	100mΩ
Accuracy	±(1.2% rdg + 4 dgts) on 340Ω to 340kΩ ranges ±(1.5% rdg + 4 dgts) on 3.4MΩ range ±(3.0% rdg + 5 dgts) on 34MΩ range
Open circuit volts	-0.45VDC typical, (-1.2VDC on 340Ω range)
Overload protection	500VDC or AC rms
Temperature
Range	-30 to 1000°F (-35 to 600°C)
Resolution	0.1°
Accuracy	±1°F (32 to 120°F); ±0.5°C (0 to 49°C), ±1% + 1.5°F (-4 to 750°F); ±1% + 1°C (-20 to 400°C), ±2% + 4°F (-30 to -4°F, 750 to 1000°F); ±2% +2°C (-35 to -20, 400 to 540°C)
Sensor type	K-type thermocouple
Overload Protection	60 VDC or 30 VAC rms
Diode test
Test current	Approx. 1.0mA
Resolution	1mV
Accuracy	±(2% rdg + 3 dgts)
Open circuit volts	3.0Vdc typical
Audible indication	Less than 0.2V
Overload protection	500VDC or AC rms
Continuity
Audible indication	Less than 300Ω
Response time	500ms
Response time	100ms. Green LED will be on continuously.
Capacitance
Range	340μF
Resolution	0.1μF
Accuracy	±(3% rdg + 5 dgts)
Test frequency	16Hz
Test voltage	<3.0V
Overload Protection	500VDC or AC rms
