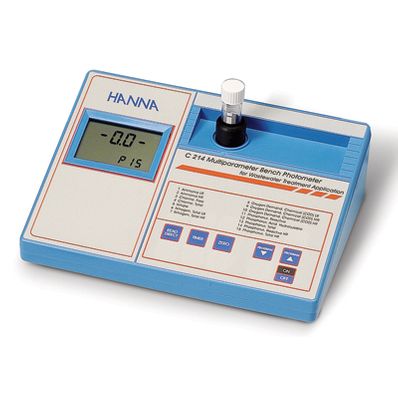

Hanna COD Meter and Multiparameter Photometer for Wastewater Analysis - HI83214

Item #:

HI83214

Brand:

Hanna Instruments

Hanna COD Meter and Multiparameter Photometer for Wastewater Analysis - HI83214

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

HI83214 COD Meter and Multiparameter Photometer for Wastewater Analysis by Hanna Instruments

The HI 83214 multiparameter photometer is a compact instrument featuring different ranges and methods, suitable for a wide range of applications.

HI 83214 is designed and built to perform COD analysis in accordance with EPA 410.4 and ISO 15705:2002 standards. Ensuring accurate and repeatable results, it is the ideal tool for documenting waste treatment processes.

Besides the fundamental parameter of COD, HI 83214 also measures total ammonia, free and total chlorine, nitrate, nitrogen and total reactive phosphorus.

HI 83214 allows for a complete wastewater analysis in a single, powerful instrument.

Easy COD measurement. HI 83214 multiparameter photometer is pre-calibrated to measure COD levels at three ranges at the touch of a key pad.
Outstanding measurement quality. An advanced optical system assures high accuracy measurements throughout the entire range.
Save space in your laboratory. The compact size of the HI 83214 allows users to eliminate the clutter of bulky and costly spectrophotometers.

Order Information:

HI 83214-01 (115V) and HI 83214-02 (230V) is supplied with glass cuvettes (5), batteries, 12 VDC adapter and instructions.

Specifications

Light Source

tungsten lamps with narrow-band interference filters

Light Detector

silicon photocell

Power Supply

external 12 VDC power adapter or built-in rechargeable battery

Auto-off

after 10 min. of non-use in measuring mode; after 1 hour of non-use in calibration mode with last reading reminder

Dimensions

235 x 200 x 110 mm (9.2 x 7.87 x 4.33")

Weight

0.9 Kg (2 lbs.)

Environment

0 to 50°C (32 to 122°F); RH max 90% non-condensing

Multi Parameter Specifications

Parameter	Range	Method	Reagent Code
Ammonia HR	0 to 100 mg/L	Nessler	HI 93764B-25
Ammonia LR	0.00 to 3.00 mg/L	Nessler	HI 93764A-25
Chlorine, Free	0.00 to 5.00 mg/L	DPD	HI 93701-01 HI 93701-03
Chlorine, Total	0.00 to 5.00 mg/L	DPD	HI 93711-01 HI 93711-03
COD HR	0 to 15000 mg/L	Dichromate	HI 93754C-25
COD LR, EPA	0 to 150 mg/L	Dichromate	HI 93754A-25
COD LR, ISO	0 to 150 mg/L	Dichromate	HI 93754F-25
COD LR, Mercury-free	0 to 150 mg/L	Dichromate, mercury-free	HI 93754D-25
COD MR, EPA	0 to 1500 mg/L	Dichromate	HI 93754B-25
COD MR, ISO	0 to 1000 mg/L	Dichromate	HI 93754G-25
COD MR, Mercury-free	0 to 1500 mg/L	Dichromate, mercury-free	HI 93754E-25
Nitrate	0.0 to 30.0 mg/L	Chromotropic acid	HI 93766-50
Nitrogen, Total	0.0 to 25.0 mg/L	Chromotropic acid	HI 93767A-50
Nitrogen, Total HR	10 to 150 mg/L	Chromotropic acid	HI 93767B-50
Phosphorus, Reactive	0.00 to 5.00 mg/L	Ascorbic acid	HI 93758A-50
Phosphorus, Reactive HR	0.0 to 100.0 mg/L	Vanadomolybdophosphoric acid	HI 93763A-50
Phosphorus, Total	0.00 to 3.50 mg/L	Ascorbic acid	HI 93758C-50
Phosphorus, Total HR	0.0 to 100.0 mg/L	Vanadomolybdophosphoric acid	HI 93763B-50
Phosphorus, Acid Hydrolyzable	0.00 to 5.00 mg/L	Ascorbic acid	HI 93758B-50
