Hanna ORP Transmitter with 4-20 mA Galvanically Isolated Output with LCD Screen - HI8615LN
Item #:
HI8615LN
Brand:
Hanna Instruments
Share this product:

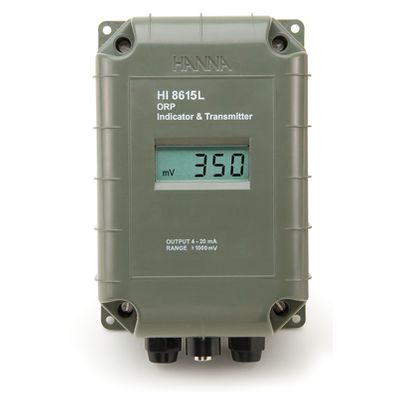

HI8615LN ORP Transmitter with 4-20 mA Galvanically Isolated Output with LCD Screen by Hanna Instruments
The HI 8615 has been designed for transmitting ORP measurements from remote locations.
This improved transmitter features two controls (one for 4 mA and one for 20 mA) to compensate for electronic drift and ambient temperature.
The HI 8615 uses a universal BNC socket for quick and secure connection of any ORP electrode with a BNC connector.
An IP65 rating and a rugged ABS casing provide optimum protection even in harsh environments making this instrument ideal for chromium hexavalent reductions and water sanitation. The transmitter can be connected to HANNA meters HI 8512, HI 8720 or any recorders, PC’s or data monitors that accept 4 to 20 mA input.
- Universal BNC connector for quick connections
- Rugged ABS casing
- Loop powered
- LCD screen
Order Information:
HI 8615LN (with display) is supplied with instructions.
| Range | ±1999 mV; 4–20 mA |
| Resolution | 1 mV; 0.01 mA |
| Accuracy @ 20°C | ±5 mV; ±0.02 mA |
| Calibration | offset: ±100 mV; ±0.8 mA; slope: 90 to 110%; ±0.8 mA |
| Input Impedance | 1012 Ohm |
| Recorder Output | 4-20 mA (isolated) |
| Protection | IP65 |
| Power Supply | 20-36 VDC |
| Load | max 500 Ohm |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% non-condensing |
| Dimensions | 165 x 110 x 71 mm (6.5 x 4.3 x 2.8’’) |
| Weight | 1 kg (2.2 lb.) |
