Sauermann Si-RD3 Refrigerant Leak Detector - 27867
Item #:
SAU-27867
Brand:
Sauermann
Share this product:

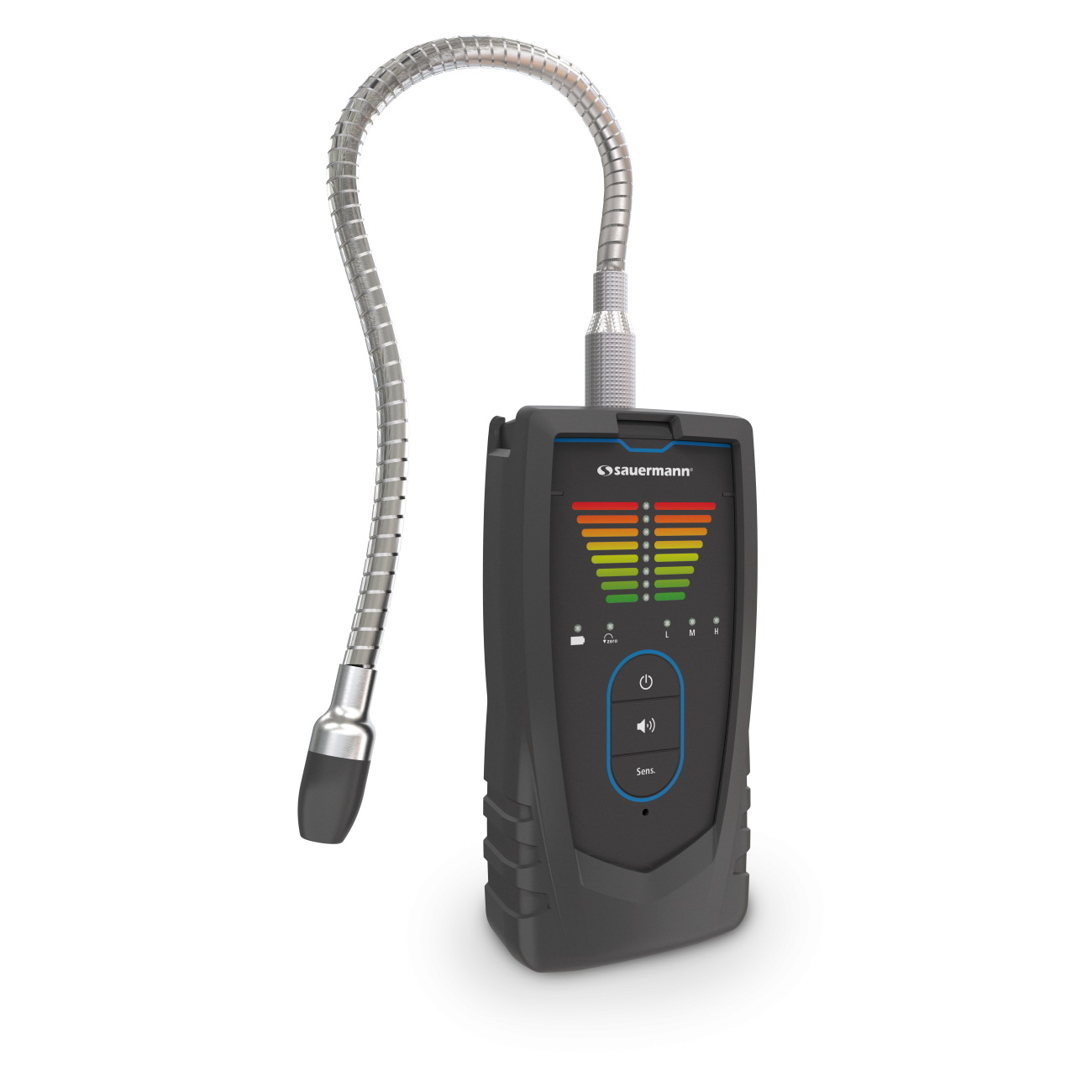

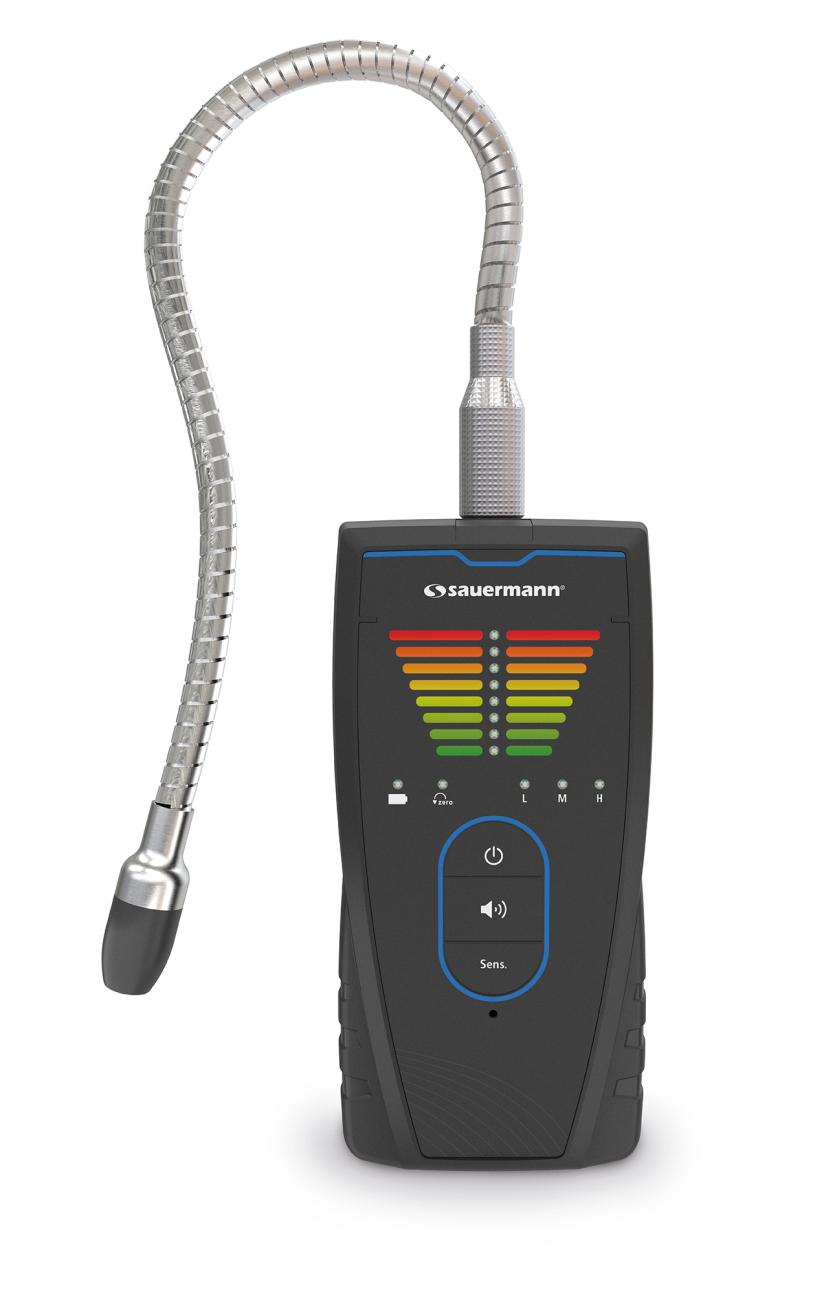

27867 Si-RD3 Refrigerant Leak Detector by Sauermann
The Si-RD3 refrigerant leak detector uncovers leaks of most common refrigerant gases to a high degree of sensitivity, including all HCFC and HFC refrigerants, R1234yf, R1234ze, R290, R600a, and 5% hydrogen–95% nitrogen mixtures (Nidron 5 and Trace-A-Gas).?
- Detects most common refrigerants and mixtures
- Visible and audible alarms
- Highly sensitive: 0 – 3 g/year
- 30 cm flexible probe
- Detection includes: all HFCF and HFC refrigerants, R1234yf, R1234ze, R290, R600a, and 5% hydrogen - 95% nitrogen mixtures (Nidron 5, Trace-A-Gas)
- Manual and automatic autozero. Immediately ready to use with no presets.
- Heated diode sensor
- 3 modes: Low, Normal and High sensitivity
Kit Includes:
- 1 Verification certificate
- 1 Transport case
- 1 Quick Start Guide
- 1 Filter
Mode |
Indicative measuring range (g/year) |
Visual alarm |
||
Low sensitivity ("L" on the device) |
From 0 to 300 g/year |
All the LEDs (8) for 300 g/year |
||
Normal sensitivity ("M" on the device) |
From 0 to 30 g/year |
All the LEDs (8) for 30 g/year |
||
High sensitivity ("H" on the device) |
From 0 to 3 g/year |
All the LEDs (8) for 3 g/year |
||
| *All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions. **Calculated value, only available on the app. Air flow is calculated with the surface given by the user. Accuracy of the result will depend on surface accuracy given by the user |
||||
| Main detected refrigerants | HFC: R134a, R404a, R407c, R410a, R32, R422a/b/c/d, R425a, R507a, R125 HCFC: R22 CFC: R12, R502 Others: 5% hydrogen - 95% nitrogen (Nidron 5, Trace-A-Gas), R290, R600a, R1234yf, R1234ze |
| Measuring element | Semiconductor sensor |
| Display | 13 LEDs: 8 for the graphic visualization of thresholds 3 for the sensitivity of detection 2 for the battery level and manual autozero |
| Indication | LED: gradual lighting up when the gas concentration increases Audible: the beep frequency increases when the gas concentration increases |
| Probe | Flexible, 300 mm length |
| Autonomy | > 12 hours |
| Housing | ABS topsafe, protection IP54 |
| Keypad | 3 keys |
| European directives | 2014/30/EU EMC; 2014/35/EU Low Voltage; RoHS 2011/65/EU (EU)2015/863; 2012/19/EU WEEE |
| Power supply | 4 AAA LR03 1.5 V batteries |
| Ambiance | Air and non-corrosive gases |
| Conditions of use (°C, %RH, m) | From 0 to +50 °C. In non condensing conditions. From 0 to 2000 m |
| Storage temperature | From -20 to +80 °C |
| Auto-extinction | 15 min |
| Weight | 295 g (10.4 oz) |
