ScichemTech SCT-ORP-MAXI ORP Maxi Controller - SCT-108.005.12
Item #:
SCT-108-005-12
Brand:
ScichemTech
Share this product:

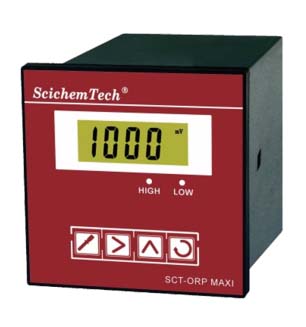

SCT-108.005.12 SCT-ORP-MAXI ORP Maxi Controller by ScichemTech
Includes:
- ORP sensor
- Fixation clamps
- Calibration solution
- Instruction manual
Features:
- SCT-ORP (Oxidation Reduction Potential) MAXI CONTROLLERS are designed with creativeness to get the elegance and produced with proper quality, and meets the specifications for the Water related applications with high level performance.
- SCT -ORP (Oxidation Reduction Potential) MAXI CONTROLLERS are supplied with the suitable electrode with SCT standard 10 meters cable. (New series).
- SCT-ORP (Oxidation Reduction Potential) MAXI CONTROLLERS are an industrial instrument used for online analysis and monitoring.
- SCT-ORP (Oxidation Reduction Potential) MAXI CONTROLLERS are made in a attractive pleasant colour with a Large and Clear blue white LCD Display
- SCT-ORP (Oxidation Reduction Potential) MAXI CONTROLLERS are Microprocessor based controllers, which gives stable and accurate readings.
- SCT-ORP (Oxidation Reduction Potential) MAXI CONTROLLERS uses Low power consumption and produces less internal heat.
- SCT-ORP (Oxidation Reduction Potential) MAXI CONTROLLERS has an isolated 4-20 mA current output.
- SCT-ORP (Oxidation Reduction Potential) MAXI CONTROLLERS proved to work continuously in any harsh environmental conditions for the In line measurement and control of accurate ORP value and it give the the direct measurement and readings
| Measurement range | -1000~ +1000 mV |
| Accuracy | ±2mV |
| Display mode | 3 1/2 bit LCD with BACKLIGHT |
| Output current | Isolate the active output of 4~20mA. |
| Output control | Dual-contact output with both higher and lower limits (normally-open and normally-close respectively) |
| Contact capacity | 7A/250V AC (resistive load) |
| Length of the cable | 10 m |
| Screw size | 3/4” pipe thread |
| Requirements on water samples | Pressure: ≤0.3MPa Flow rate: ≤3 m/s |
| Power supply | AC 220V±10%; 50Hz |
| Environmental conditions | Temperature: 0~50°C Humidity: ≤85%RH |
| Overall dimension | 96x96x120mm (Height x Width x Depth) |
| Face Opening | 92x92mm |
| Installation method | Panel-mounted |
