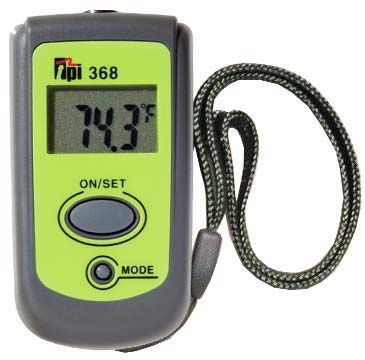

TPI 368 Close-Focus, Pocket Size Infrared Thermometer

368 Close-Focus, Pocket Size Infrared Thermometer by Test Products International

Thoroughly testing and diagnosing high efficiency HVACR systems or large surface areas can be labor intensive and expensive. Using the appropriate non-contact thermometer can reduce man hours and help insure system performance more easily, accurately and affordably.

Features:

• Close focus 1/8" ~ 1.5"
• Data logging capability: 16,000 readings with sampling interval from 1 second upto 24 hours.
• Auto Resolution (0.1° / 1°)
• Selectable Fahrenheit of Centigrade temperature range: 7° to 248°F or -22° to 120°C
• Compact - Easily fits in your pocket
• Auto Data Hold: Point the unit at the surface to be measured then press and hold down the ON/SET button. Temperature will be displayed in less than 2 seconds and held on the display for 10 seconds.
• Min/Max functions displays the minimum or maximum temperature of 8 samplings in 0.5 seconds.
• AUTO sets the 368 into scan mode to continuously scan surface temperatures in real time. Automatically powers off after 60 minutes.
• NOTE: Close-focus IR thermometers should be held a distance .5 to 2 inches from surface to be measured to obtain an accurate reading (spot size 0.35")

HVACR

• Compressor heads Vents
• Leaks around cooler or freezer doors
• Leaks around windows
• Steam traps
• Registers

Food

• Surface temperatures
• Holding cabinets
• Serving temperatures
• Storage temperatures

Electrical

• Cables
• Circuit breakers
• Connections
• Machinery
• Motors & Transformers
