Hanna Conductivity Analog Controller with Input from Probe or Transmitter, 0.01 mS/cm Resolution - HI8931BN

Item #:

HI8931BN

Brand:

Hanna Instruments

Hanna Conductivity Analog Controller with Input from Probe or Transmitter, 0.01 mS/cm Resolution - HI8931BN

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

HI8931BN Conductivity Analog Controller with Input from Probe or Transmitter, 0.01 mS/cm Resolution by Hanna Instruments

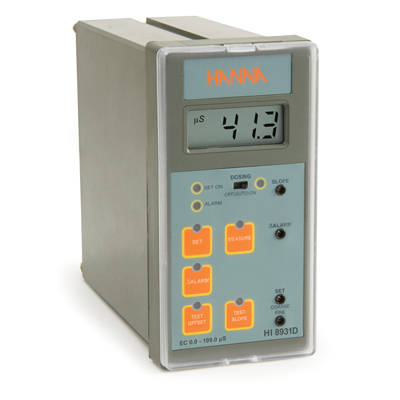

HI 8931 is a panel mounted conductivity controller designed for simplicity of use. For in-line applications, use the HI 7635 probe, while for tanks the HI 7638 with external threads is recommended. These probes are provided with a built-in NTC sensor for temperature compensated conductivity measurements. Using the HI 8931 in conjunction with a 4-20 mA output transmitter (HI 8936 or HI 8936L series) will assure a strong, interference free signal at distances up to 300 meters (1000').

Both electrode and transmitter compatible inputs accepted
Selectable manual ON, OFF and automatic dosing control with indicator
Built-in auto-diagnostic function for offset and slope
Both 4-20 and 0-20 mA output user selectable, all in one instrument
Backlit LCD
Transparent splash-proof cover included
Operational mode LED indicators

Order Information:

The HI 8931 series is supplied with mounting brackets and instructions.

Specifications

Range	0.00 to 19.99 mS/cm
Resolution	0.01 mS/cm
Accuracy @ 20 °C	±2% F.S. (excluding probe error)
Input from Transmitter	HI 8936B / BL
Temperature Compensation	automatic, 0 to 60°C with ß=2%/°C; see also transmitter HI 8936
Inputs	DIN (probe) or 4-20 mA (transmitter)
Conductivity Probe	HI 7635 for in-line applications or HI 3001D for flow-thru (not included)
Calibration	manual, two point, through offset and slope trimmers
Recorder Output	0 to 20 mA or 4 to 20 mA (isolated)
Setpoint and Alarm Relay	1, Isolated, 2A, max. 240V, resistive load, 1,000,000 strokes
Setpoint Range	0.00 to 19.99 mS/cm
Alarm Range	0.00 mS and 10.00 mS
Dosing Control	OFF/AUTO/ON with selection switch
Over Dosing Control	adjustable, from 5 min to 60 min with knob or disable by wire strap - on rear panel
Backlight	continuous on
Power Supply	115 VAC ±10% or 230 VAC ±10%; 50/60 Hz
Enclosure	flame retardant ABS body and front panel; transparent splash-proof front cover
Environment	-10 to 50°C (14 to 122°F); RH max 95% non-condensing
Panel Cutout	141 x 69 mm (5.6 x 2.7")
Weight	1 kg (2.2 lbs.)
