Sauermann Si-RV3 Vacuum Probe - 25554
Item #:
SAU-25554
Brand:
Sauermann
Share this product:

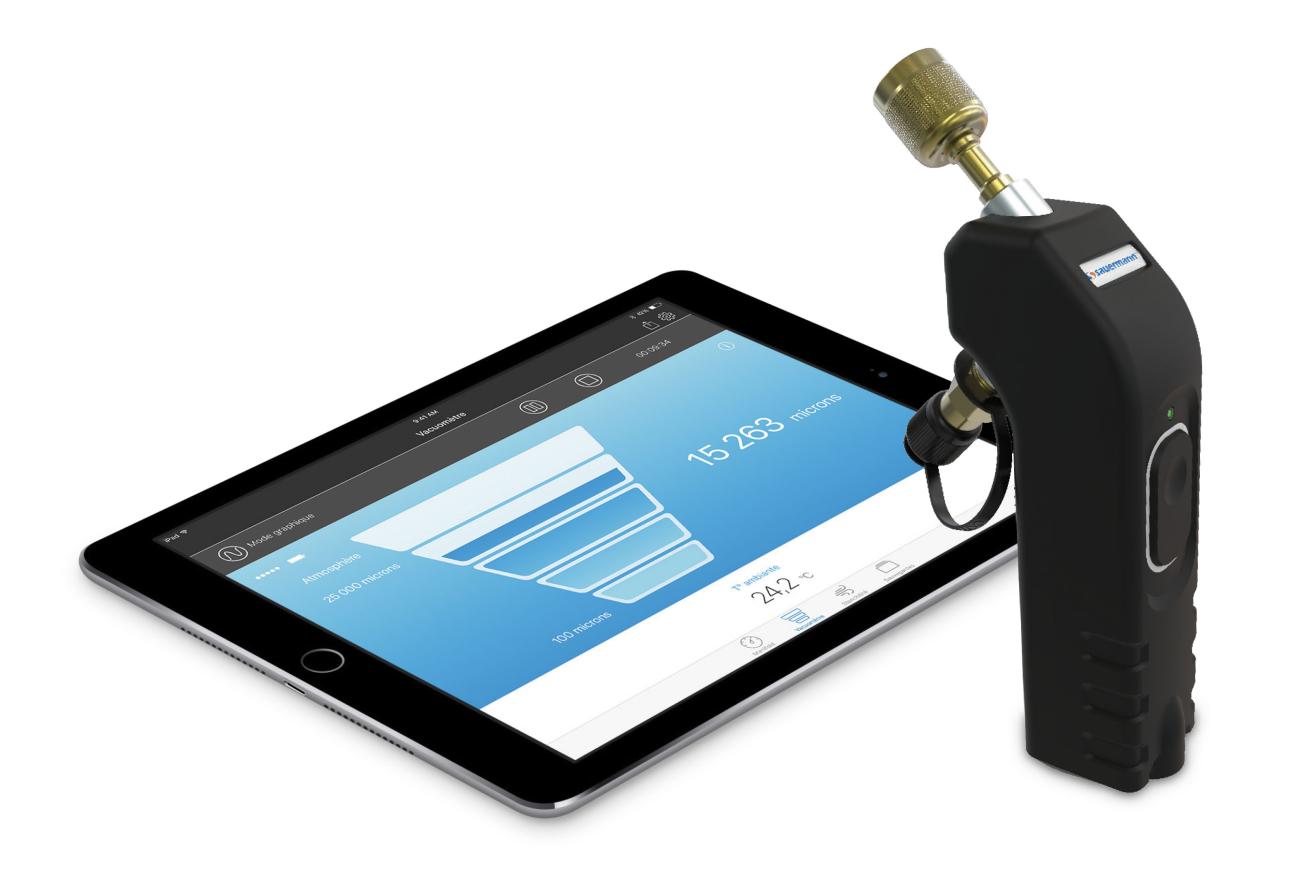

25554 Si-RV3 Vacuum Probe by Sauermann
Sauermann's vacuum probe supports the quick, safe evacuation of refrigeration systems and heat pumps with highly accurate measurements.
DEVICE KEY FEATURES
Smart wireless vacuum probe for measuring vacuum in a refrigeration system.
- Light and curved design for easy plug-in to facilities
- High accuracy Pirani® vacuum sensor
- Dual valve system enabling simultaneous vacuum measurement and evacuation of refrigerant
- Built-in Schrader® cores for easy refrigerant charging
- Range from 5 to 25,000 microns
- Reduce the use of hoses
- Overmoulding for easy handling and protection
- Long range wireless connection low energy
SI-MANIFOLD APP KEY FEATURES
General features
- Clear interface for easy reading in any condition
- Gauge, table or graphic visualizations
- Creation of measurements report with possibility to add pictures
- Report exportation in PDF, CSV and XML formats
- Data logging
- Chronometer function
- Free app for iOS and Android devices
- Minimum required versions: Android 4.4, IOS 8.0, BLE 4.0
Manifold features
- Superheat and subcooling real time calculation
- Configuration of superheat/subcooling target values
- Heating and cooling functions
- 126 refrigerant gases with favorite list
Vacuum features
- Vacuum measurement function
- Configuration of vacuum target value
- Temperature of water evaporation
Kit Includes
- Adjustment certificate
- Simplified User Manual
- 3 AAA batteries
| Vacuum | |
| Measurement and discharge valves | 2 valves |
| Measuring range | From 5 to 25,000 microns |
| Pressure sensing accuracy* | ±10% of the measured value ±10 microns** |
| Available units | micron, Pa, hPa, mbar, Torr, mmHg, inHg, inH2O |
| Resolution | 1 micron from 0 to 1000 microns 10 microns from 1000 to 2000 microns 100 microns from 2000 to 10,000 microns 500 microns from 10,000 to 25,000 microns |
| Overload | 10 bar (145 psi) |
| Burst pressure | 27.5 bar (400 psi) |
| Operating temperature (handle) | From -10 to 50°C (-4 to 122°F) |
| Storage temperature (handle) | From -20 to 60°C (-4 to 140°F) |
| Device | |
| Environmental conditions of use | Hygrometry: in non-condensing condition Maximum altitude: 2000 m (6561') Non-corrosive or combustible gases |
| Battery life | 250 h (for one measurement every three seconds @ 20°C / 68°F) |
| Wireless connection | Class 1 BLE 4.2 |
| Wireless connection range | Up to 30 m (98 ft) - Depending on smartphone and tablet wireless connection radio strength. |
| Connections | To installation: female ¼" FFL with Schrader® depressor To flexible: male ¼" MFL with Schrader® valve |
| Standards | 2011/65/EU RoHS II; 2012/19/EU WEEE; 2014/30/EU EMC; 2014/53/EU RED |
