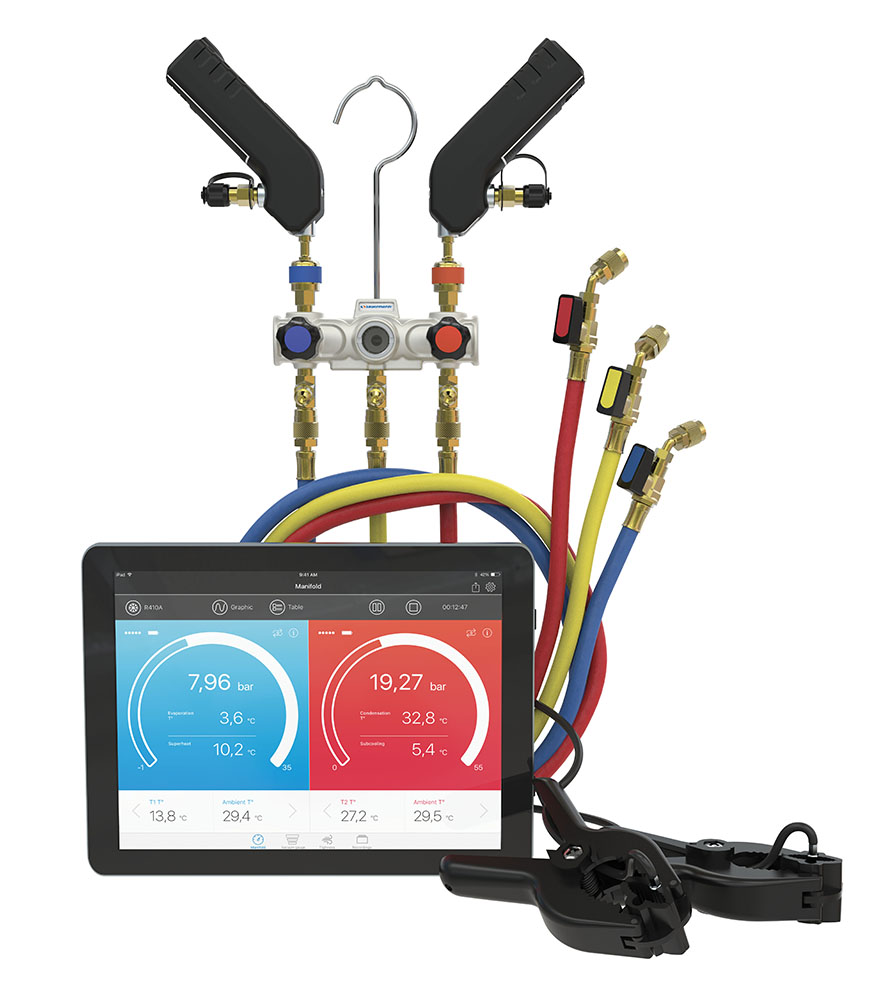

25558 Si-RM13 Wireless Digital Manifold - Full by Sauermann

This Si-RM13 combines the sturdiness of the analog manifold with digital smart wireless temperature and pressure probes.

This premium package includes a traditional 2-channel analog manifold body (by-pass type) with flexible hoses and a durable block made of anodised aluminum.

DEVICE KEY FEATURES

Smart wireless manifold probes for pressure and temperature measurements in a refrigeration system.

  • Light and curved design for easy plug-in to facilities
  • Dual valve system for simultaneous measurement and charge/discharge of refrigerant
  • Built-in Schrader® cores for easy refrigerant charging
  • Range up to 60 bar (870 psi)
  • Reduce the use of cumbersome hoses
  • Overmoulding for easy handling and protection
  • Two temperature clamps
  • Long range wireless connection low energy

2-channel manifold body (by-pass type) with flexible hoses and a full aluminium body designed for safety and perfect fit.

SI-MANIFOLD APP KEY FEATURES

General features

  • Clear interface for easy reading in any condition
  • Gauge, table or graphic visualizations
  • Creation of measurements report with possibility to add pictures
  • Report exportation in PDF, CSV and XML formats
  • Data logging
  • Chronometer function
  • Free app for iOS and Android devices
  • Minimum required versions: Android 4.4, IOS 8.0, BLE 4.0

Manifold features

  • Superheat and subcooling real time calculation
  • Configuration of superheat/subcooling target values
  • Heating and cooling functions
  • 126 refrigerant gases with favorite list

Vacuum features

  • Vacuum measurement function
  • Configuration of vacuum target value
  • Temperature of water evaporation

Kit Includes

  • 2 pressure probes. Ref: Si-RM1
  • 2 temperature probes. Ref: Si-RM2
  • 1 manifold body. Ref: ACC25561
  • Set of three flexible hoses of 1 m (39") length with stop valves. Ref: ACC25831
  • Adjustment certificate
  • Simplified User Manual
  • 6 AAA batteries
  • Elastomer rings
  • Robust transport case. Ref: ACC25563
Pressure
Pressure valves 2 valves
Measuring range From -1 to 60 bar (-14 to 870 psi)
Pressure sensing accuracy* ±0.5% of full scale
Available units psi, MPa, kPa, bar, Foot of head
Resolution 0.1 psi, 0.001 MPa, 1 kPa, 0.01 bar, 1 foot of head
Overload 65 bar (943 psi)
Burst pressure 150 bar (2175 psi)
Operating temperature (handle) From -20 to 50°C (-4 to 122°F)
Storage temperature (handle) From -20 to 60°C (-4 to 140°F)
Temperature
Number of probe 2 clamp probes
Temperature sensors High accuracy NTC thermistors
Temperature sensor range From -40 to 150°C (-40 to 302°F)
Temperature accuracy* ±1.3°C (±2.4°F)***
Maximum operating temperatures Jaws: 150°C (302°F) - Cable: 105°C (221°F) - Handle : 90°C (194°F)
Available units °C, °F, K
Resolution 0.1°C, 0.1°F, 0.1 K
Pipes diameter From 6 to 42 mm (0.2" to 1.7")
Cable 2 m length with strengthened Jack connector
3 points, Ø3.2 mm, in PVC, max. temperature 105°C (221°F)
Operating temperature From -20 to 50°C (-4 to 122°F)
Storage temperature From -20 to 60°C (-4 to 140°F)
Device
Environmental conditions of use Hygrometry: in non-condensing condition
Maximum altitude: 2000 m (6561')
Non-corrosive or combustible gases
Battery life 250 h (for one measurement every seconds @ 20°C / 68°F)
Wireless connection Class 1 BLE 4.2
Wireless connection range Up to 30 m (98 ft) - Depending on smartphone and tablet wireless connection radio strength.
Superheat and subcooling Automatically calculated by the Manifold app
Refrigerant database 126 refrigerant gases. Measurable products: CFC, HFC, HCFC, N, CO2, H20 (see the complete list on the user manual)
Connections To installation: female ¼" FFL with Schrader® depressor
To flexible: male ¼" MFL with Schrader® valve
Standards 2011/65/EU RoHS II; 2012/19/EU WEEE; 2014/30/EU EMC; 2014/53/EU RED
