IGD TOC-903-X5 Dual Gas Detector Transmitter

TOC-903-X5 Dual Gas Detector Transmitter by IGD

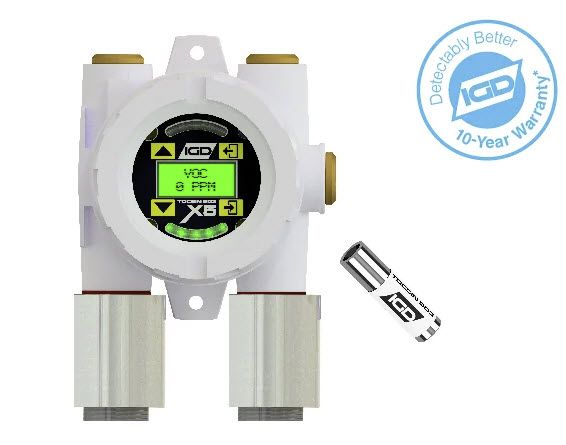

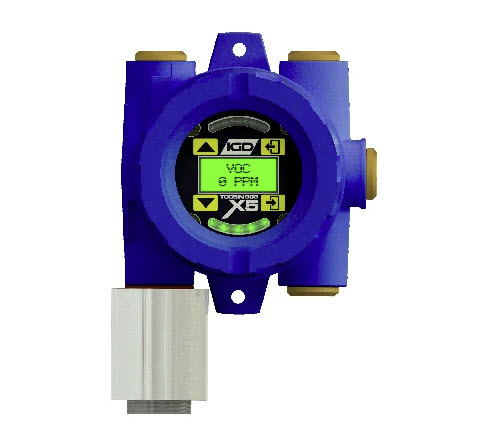

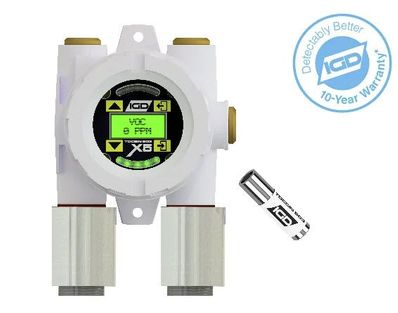

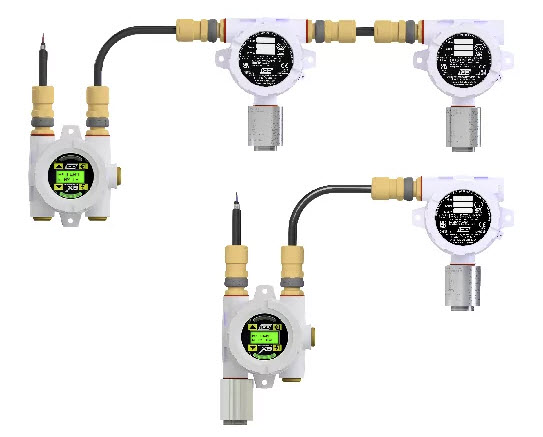

This is the TOC-903-X5 – a detector transmitter approved for ATEX Zone 1 and 2 flammable environments and Zone 21 and 22 dust environments, that can be easily integrated into our 2-Wire Addressable system, or used as a standalone 4-20mA transmitter.

The TOC-903-X5 brings a variety of new tools to the table featuring non-intrusive one-person calibration, and accommodating up to 2 independent sensors, 2 analogue outputs, relays and 2-Wire digital communication. Its ability to monitor for over 400 flammable, toxic or asphyxiant gases ensures suitability for a huge variety of applications cementing the TOC-903-X5 as the most versatile detector on the market. Simple to install, easy to use, and backed by more than a century of innovation.

Unparalleled Versatility

• 2 Independent 4-20mA outputs.
• 2-Wire Sentinel+TM digital communication.
• 1 Fault and 2 alarm relays.

Fully Certified

• UKCA, ATEX and IECEX certified.
• Built to withstand Zone 1 and 2 hazardous areas.

Easy to Use

• Intuitive digital display, concentration, alarms and fault status
• Plug-and-Play sensors.

Peace of Mind

• Designed and manufactured in the UK.
• Backed up by more than a century of expertise and our 10-year guarantee.
• All compliance is supported by 3rd party certification.

Features

• Magnetic Wand: Our Magnetic Wand operates as a stylus allowing you to access the controls without removing the ATEX housing. With the Magnetic Wand, personnel can perform a one-person calibration in ATEXzoned areas without a hot works permits.

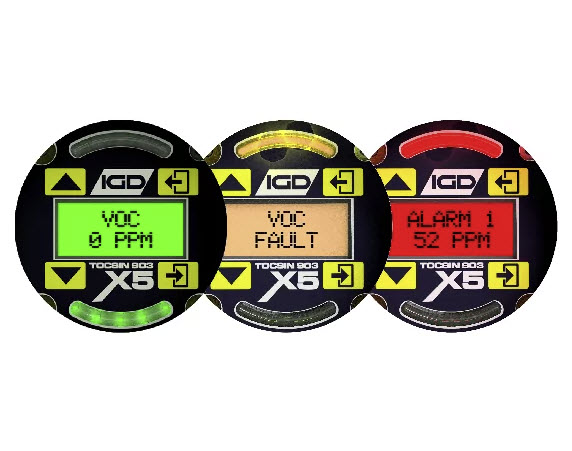

• At-a-Glance Status Checks: Our At-a-Glance LED status indicator is bright enough to be visible even in dim and dusty conditions and offers an immediate indication of the status of the environment. A green smile means all is well, a red frown indicates a hazard, and an orange frown indicates a fault.
• ATEX Stopping Plug: For unused ports on the X5 to keep ATEX rating. For example, if the sensor isn't installed in the port.
• Plug-and-Play Sensors: The TOC-903-X5 automatically updates itself when one of our plug-and-play sensors is fitted. Our industry-leading long-life sensors do the work for you, removing the need for setup. With sensors for over 400 flammable gases, the TOC-903-X5 maximises safety and minimises ongoing costs.
