Testo 405i Hot-wire Anemometer Wireless Smart Probe - 0560 1405 01

Testo 405i Hot-wire Anemometer Wireless Smart Probe - 0560 1405 01

$159.00

0560 1405 01 405i Hot-wire Anemometer Wireless Smart Probe by Testo

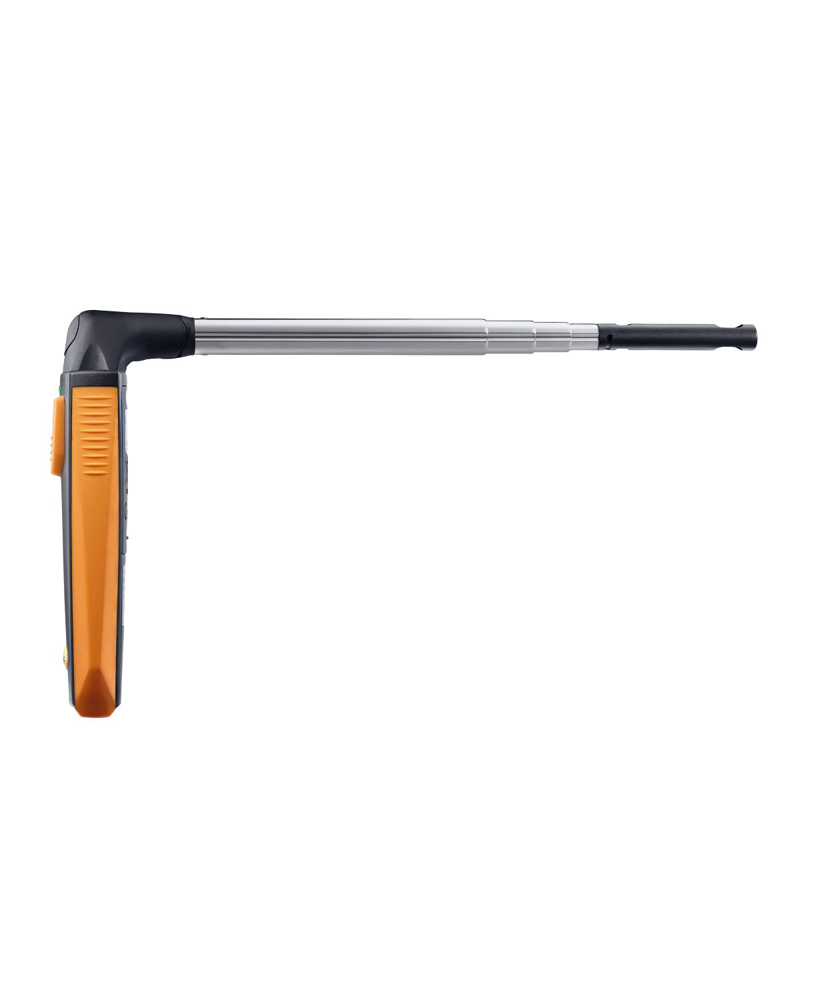

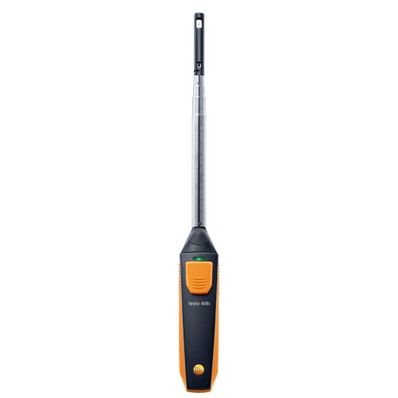

The testo 405i Smart Probe hot-wire anemometer is a wireless instrument for measuring air flow velocity, temperature, and volume flow. It is equipped with a telescopic shaft which extends to 15" for easy in-duct testing. You can reliably determine timed and multipoint flow traverses. Users can read the measurements using the testo Smart Probes App installed on their smart device. The app lets users configure duct dimensions to calculate volume flow measurements. Use the testo 405i along with the testo 605i thermo-hygrometer to determine cooling and heating performance. The testo 405i works on smart devices with either Android or Apple operating systems.

The testo Smart Probes App is a powerful and easy-touse tool. It allows you to remotely read measurements from up to six (6) Smart Probes and easily document/report the results. Automatic calculations make it a snap! All measurement data is displayed as instrument readings, tables, or graphs. The measurements can be quickly saved as PDF or Excel files. The App creates custom reports which can be saved and/or shared by email. All your data can be stored and retrieved saving you hours of time consuming paperwork!

  • Measures air velocity, volume flow, and temperature
  • Measures in-duct air flow and automatically calculates volume flow (enter duct dimensions simply)
  • Small dia. (<0.5") and 15" telescopic shaft length is ideal for in-duct flow averaging and timed traverse
  • Perform air duct leakage tests
  • Measurement data is transmitted to the convenient and powerful testo Smart Probes App in your smart device
  • Tough, accurate, and easy-to-use
  • For all HVAC/R technicians and contractors
Sensor type Hot wire Measuring range: 0 to 6,000 fpm
Accuracy: ±(20 fpm +5 % of m.v.) (0 to 394 fpm); ±(59 fpm +5 % of m.v.) (394 to +3,000 fpm)
Resolution: 1.97 fpm
Volume flow (cfm): 0 to 99,999 cfm (Resolution: 0.1 cfm)
NTC Measuring range: -4 to 140 °F
Accuracy: ±0.9 °F
Resolution: 0.1 °F
Compatibility requires iOS 8.3 (or later) / Android 4.3 (or later)
requires mobile device with Bluetooth 4.0
Storage temperature -4 to 140 °F
Operating temperature -4 to 122 °F
Battery type 3 AAA Batteries (incl.)
Battery life 15 hrs
Dimensions 7.9 x 1.2 x 1.6 in
Telescope extendable to 15.7 in.
Warranty 2 years
Measuring Units °F, °C, fpm, m/s, cfm, m3/h, l/s
