Testo 552 Digital Vacuum / Micron Gauge with Bluetooth - 0560 5522 01
Item #:
0560-5522-01
Brand:
Testo
Share this product:

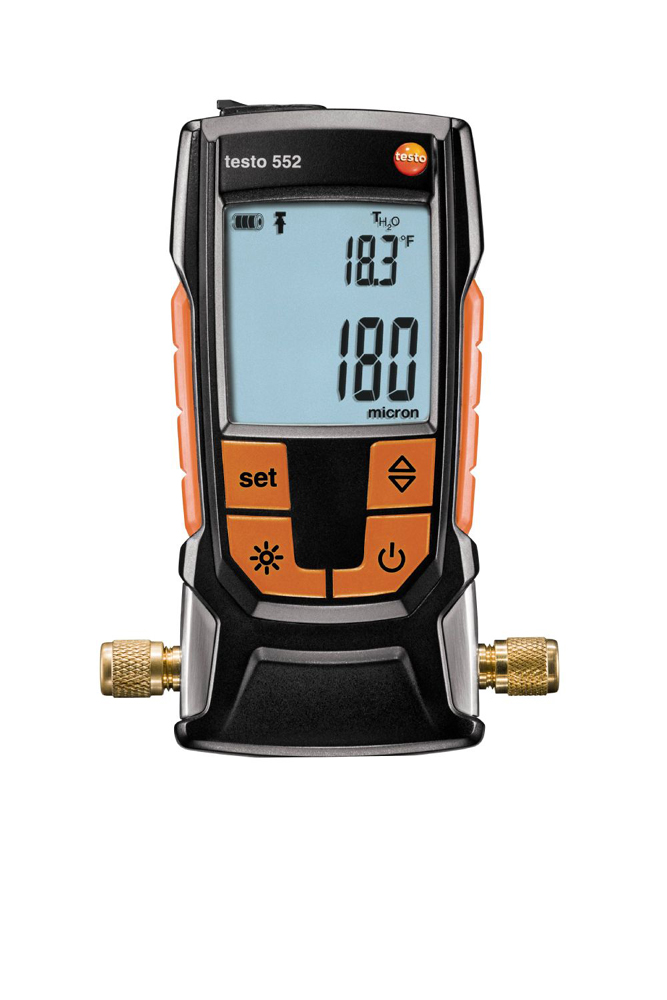

0560 5522 01 552 Digital Vacuum / Micron Gauge with Bluetooth by Testo
The testo 552 digital micron gauge is ideal for monitoring the evacuation of air conditioning, refrigeration, and heat pump systems. It is rich in features that make your work faster, easier, and more accurate.
Precise deep vacuum measurements, measuring down to single digit resolutions use optimized Pirani sensors. The testo 552 has real time calculations for the saturation temperature of water, which determines the proper micron/temperature levels at which moisture is removed from the system. These internal calculations inform you when/if the pressure is low enough to meet your evacuation target. This saves time and provides you with the assurance that the system is now free from moisture and contaminants. User defined alarm points alert you when target values are reached.
The new testo 552 with Bluetooth links to your smart phone or device. The testo 552 uses the free testo SMART Probes App which is a powerful and easy-to-use tool. It allows you to remotely read measurements of 1 to 6 Smart Probes including the testo 552. You can easily document / report the results.
- Precise and reliable vacuum measurements, 1 micron resolution
- Displays the saturation temperature of H2O to ensure full and proper evacuation
- Illuminated, backlit display with visual alarm for evacuation pressure
- Wireless Bluetooth communication to smart phone or tablet provides powerful analysis and reporting
- Display data, create reports, and send via email or SMS
| Sensor type | Absolute pressure sensor |
| Vacuum measuring range | 0 to 20,000 microns (0 to +26.66 mbar) |
| Accuracy vacuum ±1 digit (at +72 °F) | ±10 microns + 10 % of m.v. (100 to 1,000 microns) |
| Resolution | 1 micron (0 to 1,000 microns) 10 microns (1,000 to 2,000 microns) 100 microns (2,000 to 5,000 microns) 500 microns (5,000 to 10,000 microns) 5,000 microns (10,000 to 20,000 microns) |
| Overload vacuum | Absolute: 87 psi (6 bar) Relative: 72 psi (5 bar) |
| Storage temperature | -4 to 122 °F (-20 to +50 °C) |
| Operating temperature | 14 to 122 °F (-10 to +50 °C) |
| Dimensions | 9.8 x 6.5 x 2.2 in. (250 x 165 x 55 mm) |
| Weight | Approx. 1.1 lb. (500 g) |
| Protection class | IP 42 |
| Battery type | 2 AA batteries |
| Battery life | 50 hrs (without Bluetooth/backlighting) |
| Connection | 2 x 1/4" SAE (7/16" UNF) 1 x mini - DIN (connection to testo 570) |
| Measurement value sensor | Pirani sensor |
| Parameters | mmHg, Torr, mbar, hPa, micron, inH20, inHg, Pa |
| Measurement rate | 0.5 s |
| Warranty | 2 years |
| Compatability App connection | requires iOS 8.3 or newer / Android 4.3 or newer requires mobile device with Bluetooth 4.0 |
