Testo Refrigerant valve with Bluetooth - for digital refrigerant scale testo 560i - 0560 5600 01

Testo Refrigerant valve with Bluetooth - for digital refrigerant scale testo 560i - 0560 5600 01

$231.00

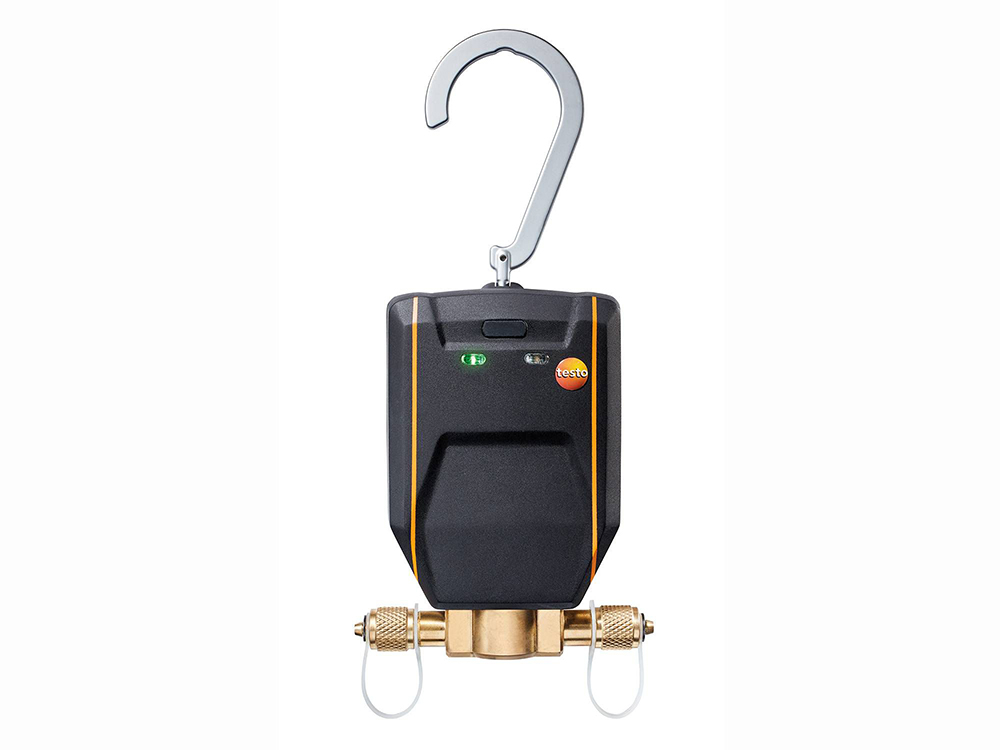

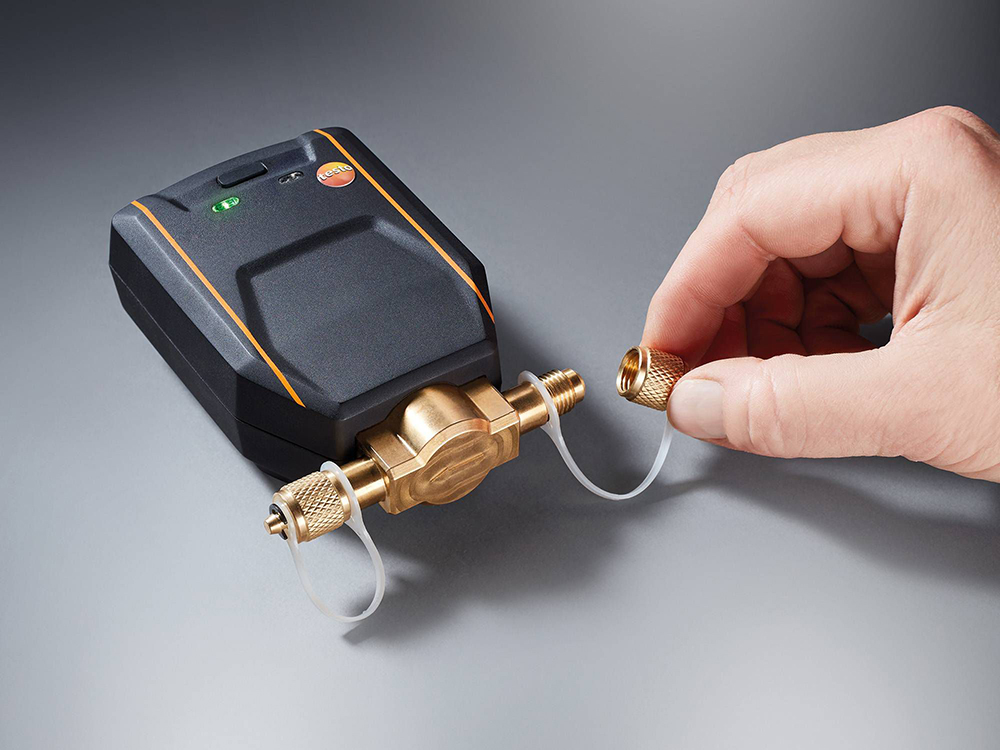

0560 5600 01 Refrigerant valve with Bluetooth - for digital refrigerant scale testo 560i by Testo

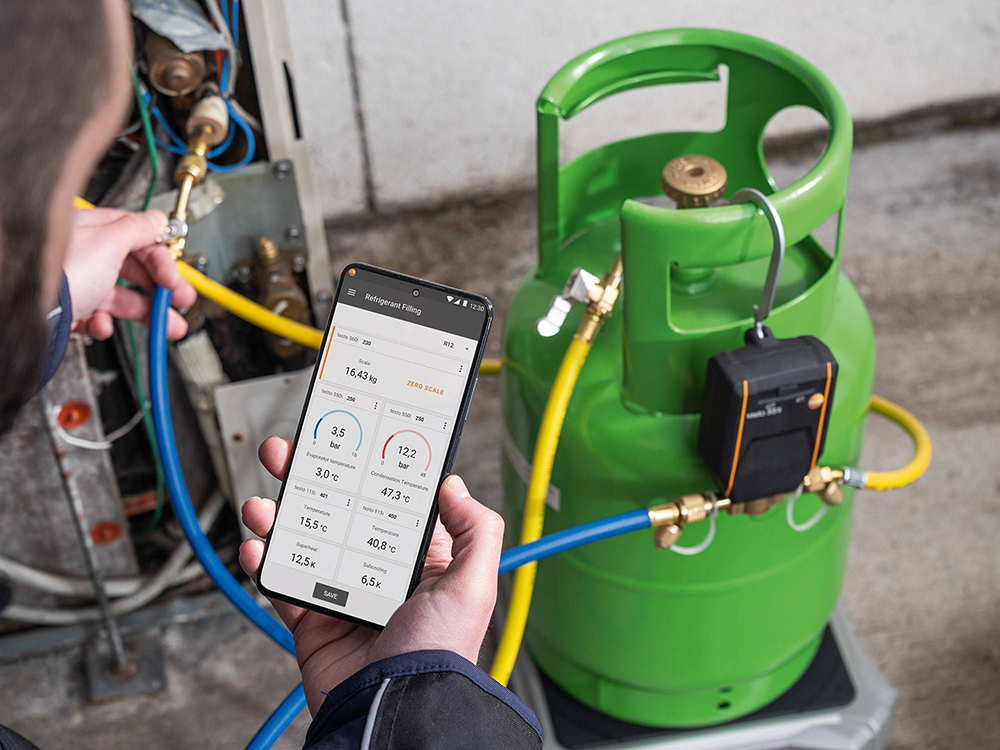

Fully automatic and precise charging of refrigeration systems and heat pumps: The intelligent refrigerant valve makes it possible - together with the separately available testo 560i refrigerant scale, a Testo manifold, Testo Smart Probes and the testo Smart App.

  • Intelligent Bluetooth valve for digital refrigerant scale testo 560i (available separately or as a kit) for automatic and precise refrigerant charging of refrigeration systems/heat pumps.
  • Easy operation via Testo manifold or testo Smart App with automatic charging programs according to target value superheat, subcooling or refrigerant weight.
  • Flexible in confined environments: Valve and scale automatically connect via Bluetooth to the manifold and App on your smartphone/tablet.
  • All measured values for the charging process at a glance in the manifold and App with storage of the measured data in the App.
  • Compatible with testo 560i, manifolds testo 557s/550s/550i as well as testo 557 /550, Smart Probes testo 115i/549 i/605i and testo Smart App for Android and iOS.

Advantages of the refrigerant valve

  • Especially robust thanks to IP54
  • High Bluetooth range of up to 150 m together with a Testo manifold (alone up to 50 m).
  • Long battery life of over 60 hours and replaceable 9 V block battery.

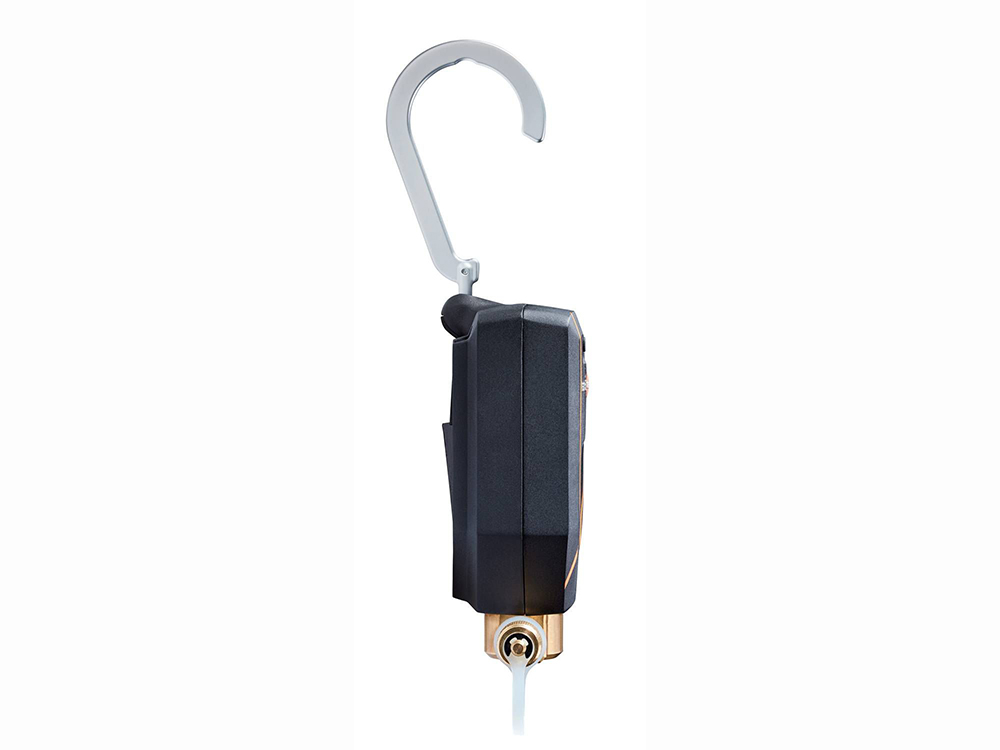

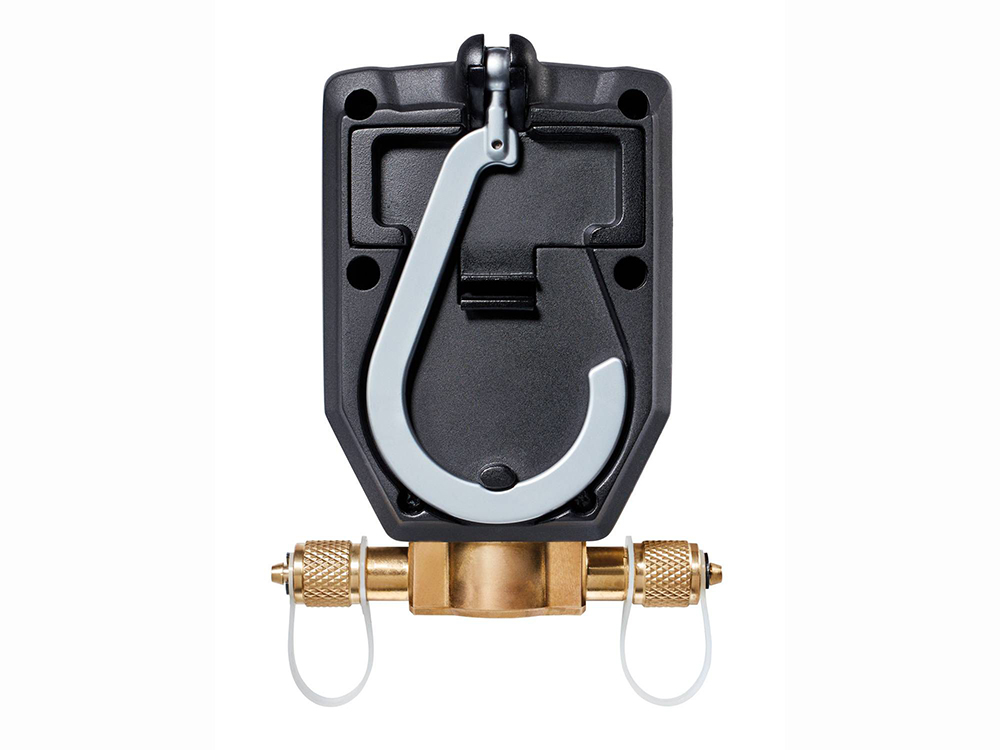

  • Very practical due to sturdy hook.

Delivery Scope

  • Refrigerant valve with Bluetooth for digital refrigerant scale testo 560i
  • 1 x 9V (6LR61) battery
  • Instruction manual
Operating humidity 0 to 80 %RH
Weight 570 g (incl. batteries)
Dimensions 95 x 119 x 47 mm (LxWxH)
Operating temperature -10 to +50 °C
Protection class IP54
Product colour black/orange; silver
Maximum working pressure 35 bar
Battery type 9 V (6LR61)
Battery life >60 hrs + 3000 valve operations
Interface Bluetooth® 4.2
Radio range 50 m
Storage temperature -10 to +50 °C
