Testo AC/Refrigeration Smart Probe Set (incl. 2x 549i, 2x 115i) 350 ft. Bluetooth range - 0563 0002 20

Item #:
0563-0002-20
Brand:
Testo
$429.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Testo AC/Refrigeration Smart Probe Set (incl. 2x 549i, 2x 115i) 350 ft. Bluetooth range - 0563 0002 20

Testo AC/Refrigeration Smart Probe Set (incl. 2x 549i, 2x 115i) 350 ft. Bluetooth range - 0563 0002 20

$429.00

0563 0002 20 AC/Refrigeration Smart Probe Set (incl. 2x 549i, 2x 115i) 350 ft. Bluetooth range by Testo

The testo AC/R Smart Probe Set is a combination of four instruments to measure high-side and low-side pressures and temperatures of A/C and refrigeration systems. Configured to be used during commissioning, servicing, PM and troubleshooting A/C and refrigeration systems. This kit can be operated with no tools other than your smart phone to communicate with the instruments. Users can remotely read the measurements from multiple probes by using the testo Smart Probes App. The large testo HVAC softcase includes space for all additional testo Smart Probes, allowing convenient transport.

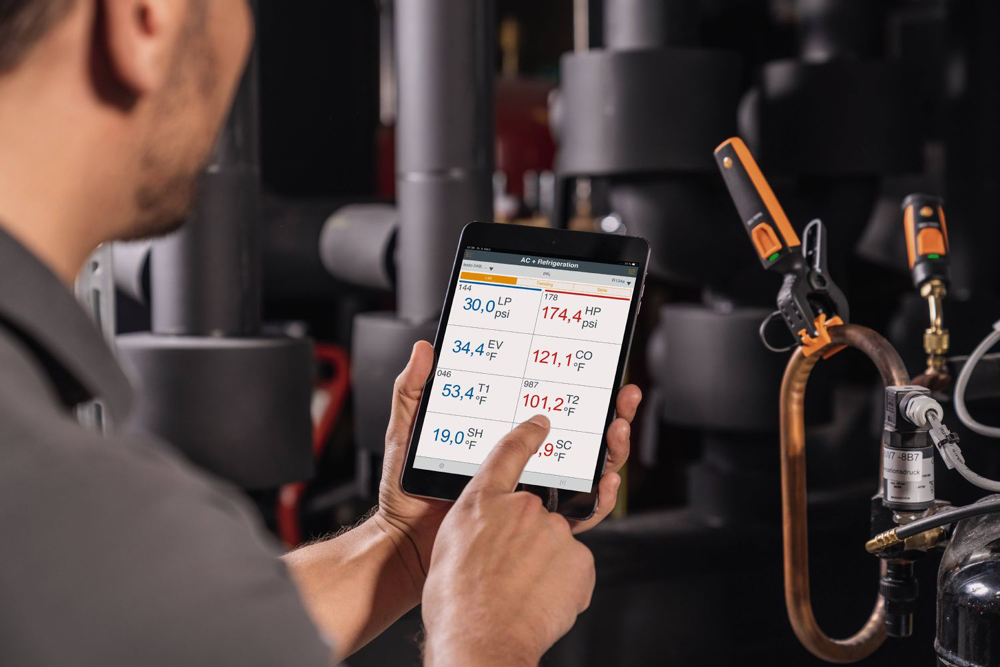

The testo Smart Probes App is a powerful and easy-touse tool. It allows you to remotely read measurements from up to six (6) Smart Probes and easily document/report the results. Automatic calculations make it a snap! All measurement data is displayed as instrument readings, tables, or graphs. The measurements can be quickly saved as PDF or Excel files. The App creates custom reports which can be saved and/or shared by email. All your data can be stored and retrieved saving you hours of time consuming paperwork!

  • Measure high-side & low-side refrigerant pressure & temperatures (simultaneously) of AC/refrigeration systems
  • Testo 549i now includes 45° angled hose connections
  • Low-loss AC/R system checks. No hoses required!
  • Complete and compact wireless AC/R test kit
  • Calculate superheat and subcooling in the Smart Probe App
  • Tough, accurate, and easy-to-use

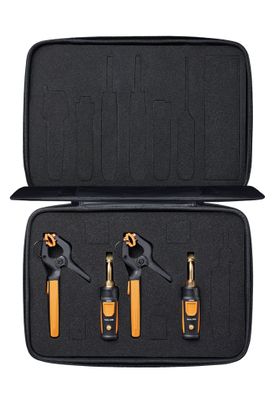

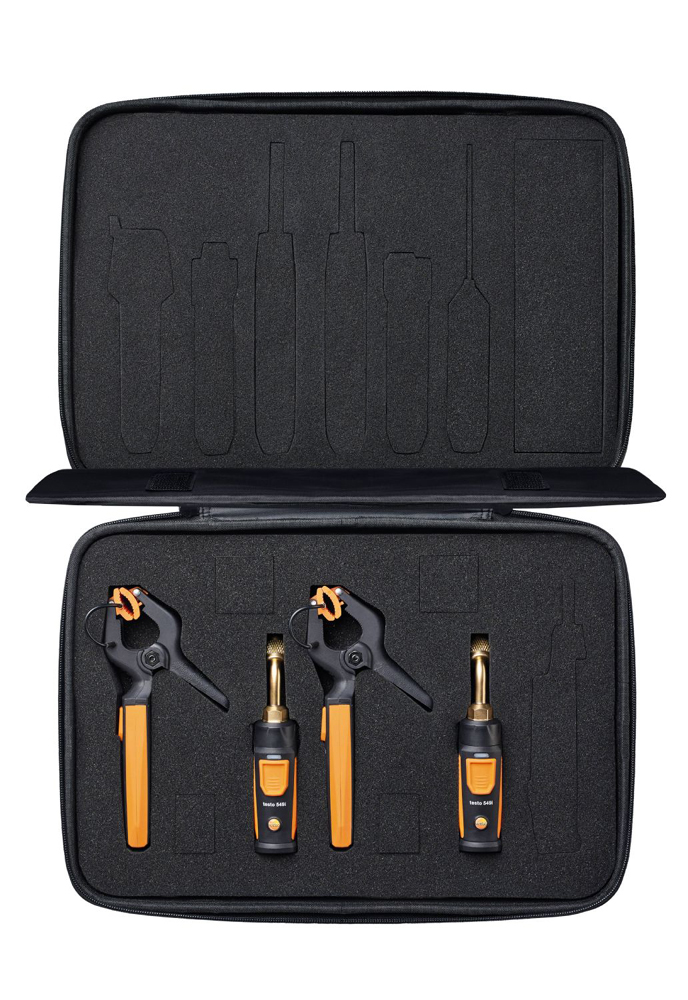

  • HVAC softcase holds the complete set of smart probes
  •
    testo 115i
    testo 549i
    Sensor type
    NTC
    Pressure
    Measuring range
    -58 to 302 °F
    -14 to 870 psi
    Accuracy
    ±2.3 °F (-4 to 185 °F)
    0.5 % of final value
    Resolution
    0.1 °F
    0.1 psi
    Connection

    7/16" - UNF
    Overload rel.

    940 psi
    Compatibility
    requires iOS 8.3 (or later) / Android 4.3 (or later)
    requires mobile device with Bluetooth 4.0
    Storage temperature
    -4 to 140 °F
    Operating temperature
    -4 to 122 °F
    Battery type
    3 AAA Batteries
    Battery life
    250 hrs
    150 hrs
    Dimensions
    7.2 x 3.5 x 1.2 in.
    4.9 x 1.3 x 1.2 in.
    Measurable media

    CFC, HFC, HCFC, N, H2O, CO2
    Warranty
    2 years
    Measuring Units
    °F, °C
    bar, psi, MPa, kPa
    Clamp opening diameter
    .25 to 1.5 in.
