Testo 400 Airflow Kit - 0563 0407

Item #:

0563-0407

Brand:

Testo

View All

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

0563 0407 400 Airflow Kit by Testo

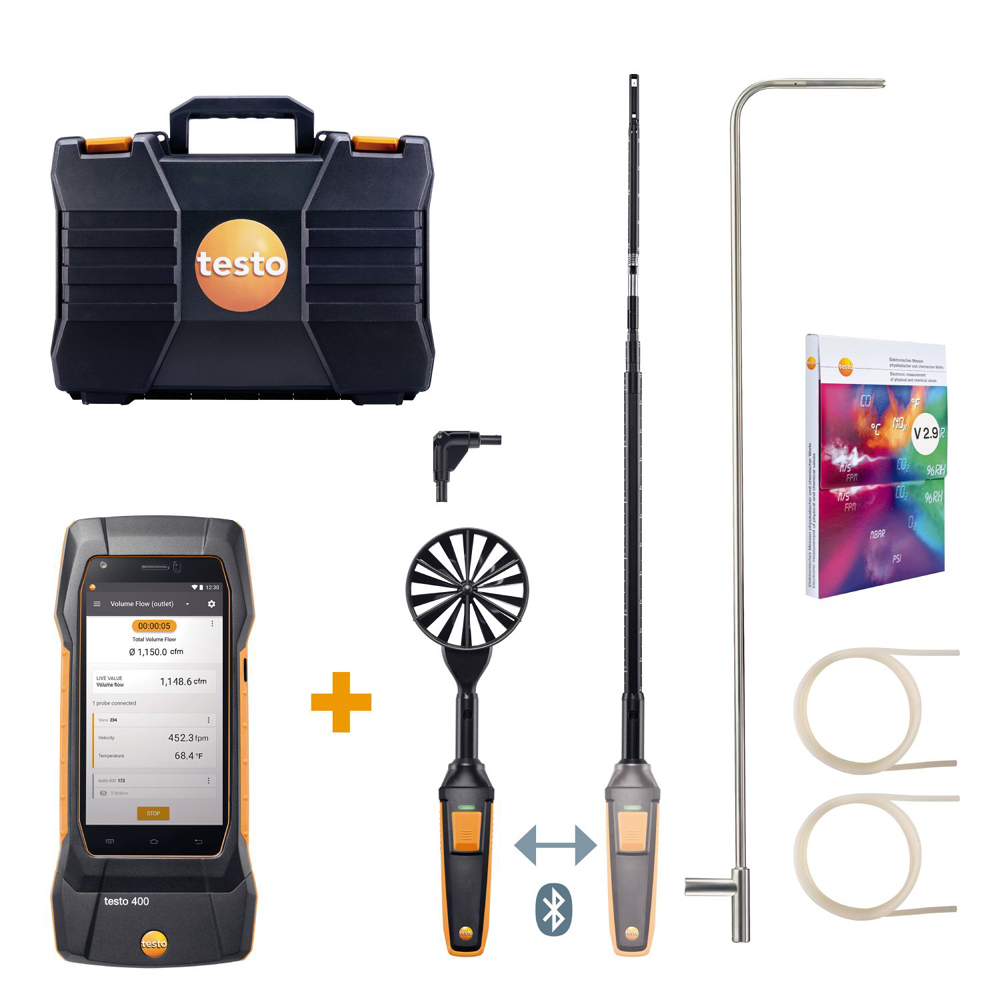

Kits includes:

Universal Airflow / IAQ Instrument
Hot wire probe incl. extension up to 1m and Bluetooth handle adapter
100mm vane probe head
90 degree angle adapter
Pitot tube
USB power supply
Software
Pressure connection hose (2)
Transport case for volume flow measurement with testo 400

Specifications

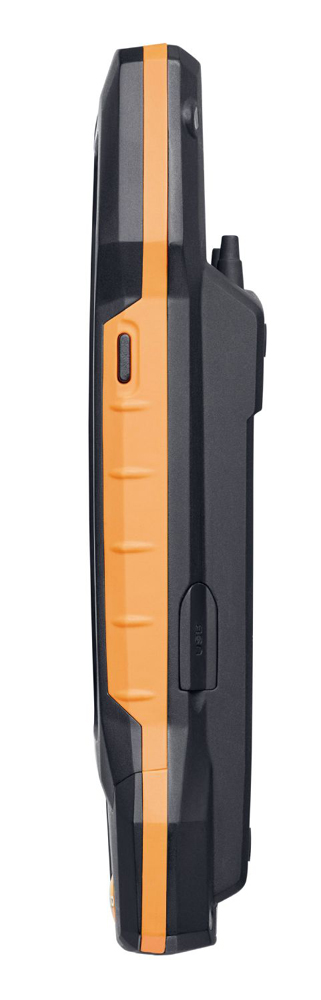

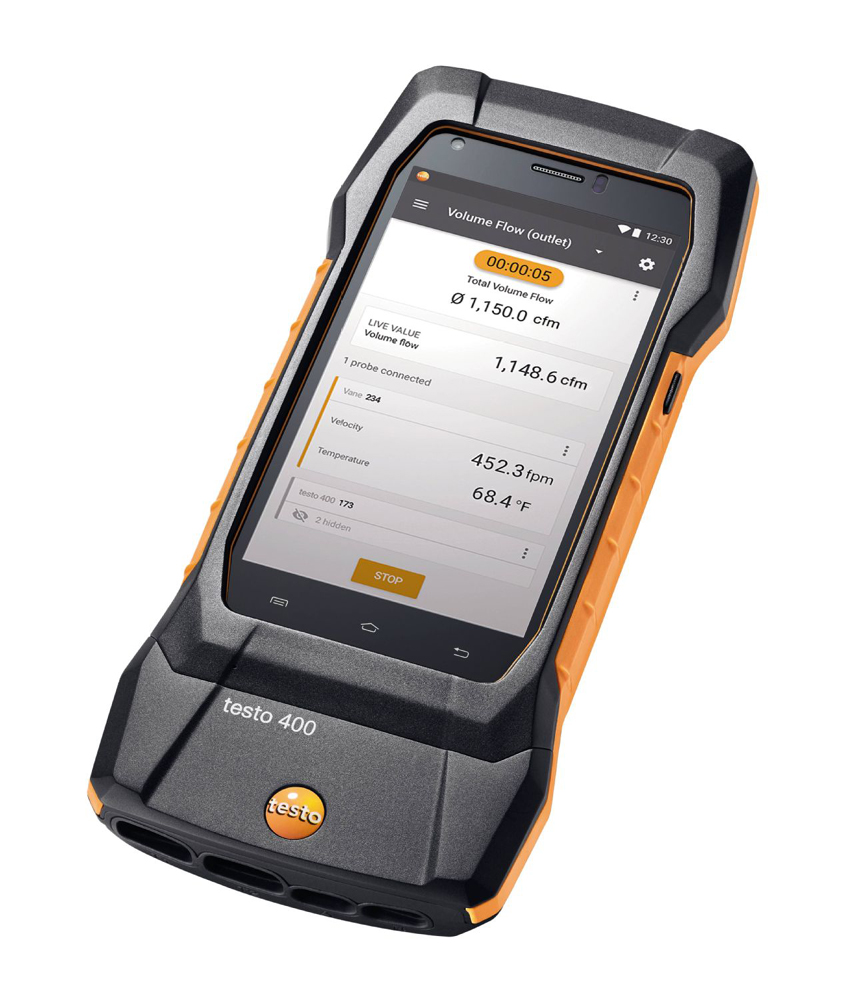

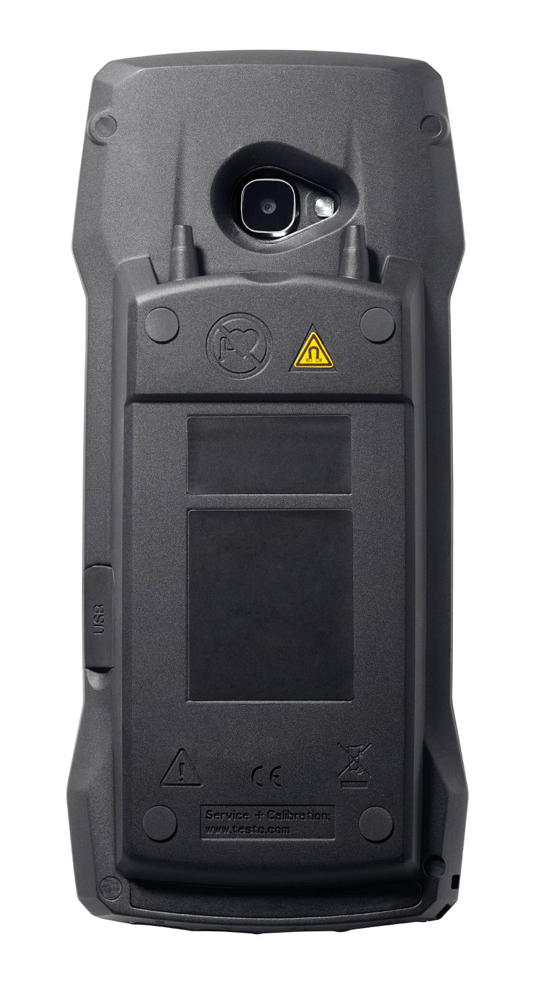

testo 400 - Universal Air Flow and IAQ Instrument

Temperature - NTC
Measuring range	-40.0° to 302.0 °F / -40 to +150 °C
Accuracy	±0.4 °F ±1 Digit (-13° to 166.8 °F) / ±0.2 °C ±1 Digit (-25 to +74.9 °C) ±0.7 °F ±1 Digit (-40° to -13.2 °F) / ±0.4 °C ±1 Digit (-40 to -25.1 °C) ±0.7 °F ±1 Digit (75° to 211.8 °F) / ±0.4 °C ±1 Digit (+75 to +99.9 °C) ±0.5 % of mv ±1 Digit (Remaining Range)
Resolution	0 °F / 0.1 °C
Temperature - Type KTC
Measuring range	-328.0° to 2498.0 °F / -200 to +1370 °C
Accuracy	±(0.5 °F + 0.1 % of mv) ±1 Digit / ±(0.3 °C + 0.1 % of mv) ±1 Digit
Resolution	0.1 °F / 0.1 °C
Differential pressure (internal sensor) - Piezoresistive
Measuring range	-40 to +80 InH₂O / -100 to +200 hPa
Accuracy	±(0.0 InH₂O + 1 % of mv) ±1 Digit (0 to 25 InH₂O) / ±(0.3 Pa + 1 % of mv) ±1 Digit (0 to 25 hPa) ±(0.0 InH₂O + 1.5 % of mv) ±1 Digit (10.000 to 80 InH₂O) / ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa)
Resolution	0.000 InH₂O / 0.001 hPa
Absolute Pressure (internal sensor and external probe)
Measuring range	280 to 440 InH₂O / 700 to 1100 hPa
Accuracy	±1 InH₂O / ±3 hPa
Resolution	0.1 InH₂O / 0.1 hPa
General technical data
Weight	17.99 oz. (instrument) / 510 g (instrument)
Dimensions	8.3 x 3.7 x 1.5 in. ((LxWxH)) / 210 x 95 x 39 mm ((LxWxH))
Operating temperature	23.0° to 113.0 °F / -5 to +45 °C
Housing	Plastic
Protection class	IP40
Connectable probes	4 x digital Bluetooth® probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable
Product colour	black/orange
Camera image size	Main camera: 8.0 MP; Front camera: 5.0 MP
Battery life	approx. 10 hrs continuous operation
Display type	5.0"; touch display, HD 1280*720 pixels, IPS (160 k)
Power supply	Rechargeable li-ion battery (5550 mAh)
Interface	Bluetooth®; USB; WLAN
Memory	2 GB; 1,000,000 measuring values
Storage temperature	-4.0° to 140.0 °F / -20 to +60 °C

Transport case for air flow measurements

General technical data
Weight	98.77 oz. / 2800 g
Dimensions	20.5 x 16.1 x 6.3 in. LxWxH / 520 x 410 x 160 mm LxWxH
Housing	Plastic
Product colour	Black

Hot wire probe (digital) - with Bluetooth® including temperature and humidity sensor

Temperature - NTC
Measuring range	-4° to 158 °F / -20 to +70 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C
Humidity - Capacitive
Measuring range	5 to 95 %rH
Accuracy	±3 %rH (10 to 35 %rH) ±2 %rH (35 to 65 %rH) ±3 %rH (65 to 90 %rH) ±5 %rH (Remaining Range) ±0.06 %rF/K (k=1)
Resolution	0.1 %rH
Absolute Pressure
Measuring range	+280 to +440 InH₂O / +700 to +1100 hPa
Accuracy	±1.2 InH₂O / ±3.0 hPa
Resolution	0.1 InH₂O / 0.1 hPa
Velocity - Hot wire anemometer
Measuring range	0 to 9843 fpm / 0 to 50 m/s
Accuracy	±(5.91 fpm + 4 % of mv) / ±(0.03 m/s + 4 % of mv) (0 to 3937 fpm) / (0 to 20 m/s) ±(98.4 fpm + 5 % of mv) / ±(0.5 m/s + 5 % of mv) (3938.98 to 5906 fpm) / (20.01 to 30 m/s)
Resolution	1.97 fpm / 0.01 m/s
General technical data
Storage temperature	-4° to 140 °F / -20 to +60 °C
Weight	14.1 oz. / 400 g
Dimensions	30.7 x 2.0 x 1.6 in. / 780 x 50 x 40 mm
Operating temperature	23° to 122 °F / -5 to +50 °C
Length telescope	39.37 in. / 1,000 mm
Probe head diameter	0.354 in. / 9 mm
Diameter telescope	0.63 in. / 16 mm
Product colour	black/orange
Length probe shaft	9.055 in. / 230 mm
Diameter probe shaft	0.354 in. / 9 mm
Battery type	4 x AA batteries
Battery life	21.5 h
Data transfer	Bluetooth®
Radio range	65.616 ft. / 20 m

100 mm vane probe head

Temperature - NTC
Measuring range	-4° to 158 °F / -20 to +70 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C
Velocity / Volume flow
Measuring range	59.1 to 6890 fpm / 0.3 to 35 m/s
Accuracy	±(19.7 fpm + 1.5 % of mv) (59.1 to 3937 fpm) / ±(0.1 m/s + 1.5 % of mv) (0.3 to 20 m/s) ±(39.4 fpm t1 1.5 % of mv) (3938.98 t2 6890 fpm) / ±(0.2 m/s t1 1.5 % of mv) (20.01 t2 35 m/s)
Resolution	1.97 fpm / 0.01 m/s
General technical data
Storage temperature	-4° to 158 °F / -20 to +70 °C
Weight	4.4 oz. / 125 g
Dimensions	7.1 x 4.1 x 1.8 in. / 180 x 105 x 46 mm
Operating temperature	-4° to 158 °F / -20 to +70 °C
Probe head diameter	3.937 in. / 100 mm
Product colour	Black

90° angle for connecting vane probes (Ø 100 mm)

General technical data
Weight	0.9 oz. / 25 g
Dimensions	2.6 x 2.6 x 0.6 in. / 65 x 65 x 15 mm
Product colour	Black

Pitot tube, 13.8 in. - stainless steel

General technical data
Weight	3.32 oz. / 94 g
Operating temperature	32.0° to 1112.0 °F / 0 to +600 °C
Length probe shaft	13.78 in. / 350 mm
Housing	Metal housing
Diameter probe shaft	0.276 in. / 7 mm
Product colour	Silver
Measuring range	+197 to +19685 fpm / +1 to +100 m/s
