Testo 400 IAQ Kit - 0563 0408
Item #:
0563-0408
Brand:
Testo
Share this product:

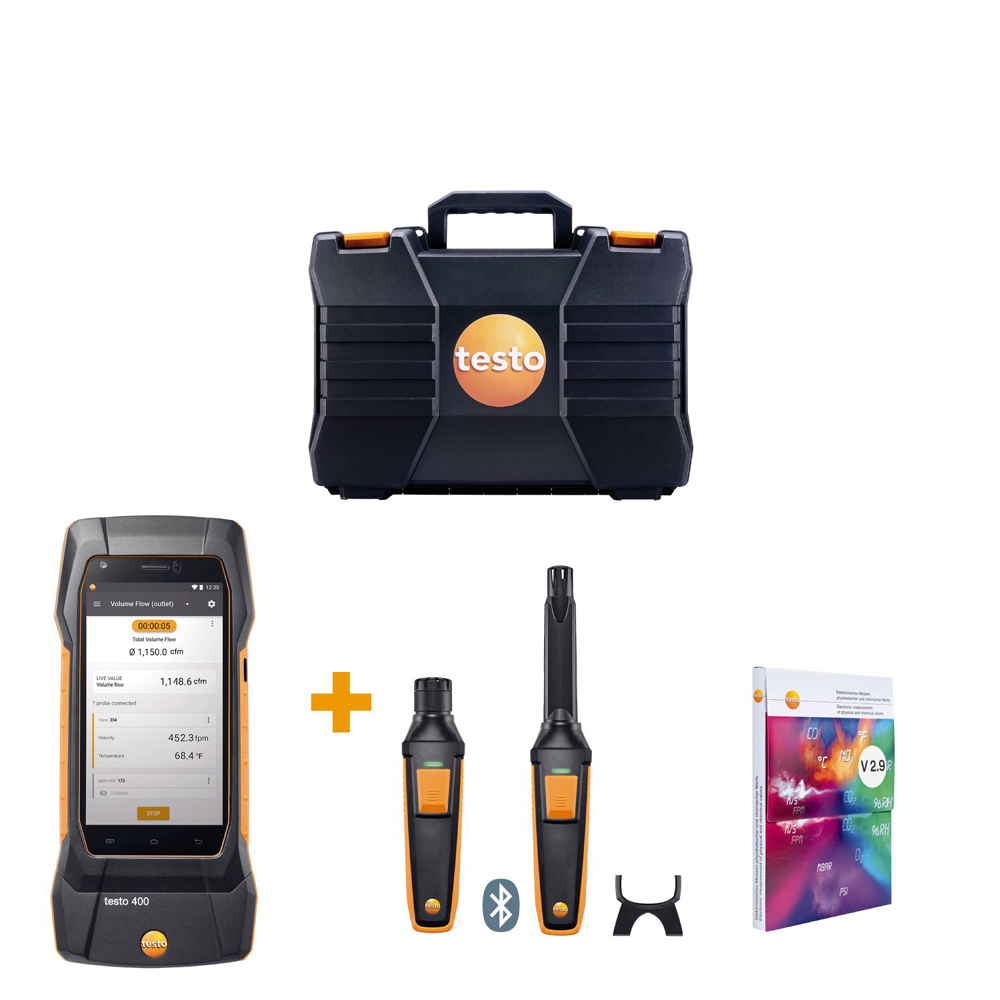

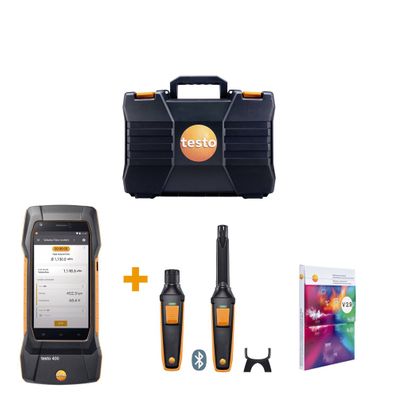

0563 0408 400 IAQ Kit by Testo
Kits includes:
- Universal Airflow / IAQ Instrument
- CO2 probe with Bluetooth, incl. temperature and humidity sensor and stand
- CO probe with Bluetooth
- USB power supply
- Software
- Pressure connection hose
- Transport case for volume flow measurement with testo 400
| Temperature - NTC | |
| Measuring range | -40.0° to 302.0 °F / -40 to +150 °C |
| Accuracy | ±0.4 °F ±1 Digit (-13° to 166.8 °F) / ±0.2 °C ±1 Digit (-25 to +74.9 °C) ±0.7 °F ±1 Digit (-40° to -13.2 °F) / ±0.4 °C ±1 Digit (-40 to -25.1 °C) ±0.7 °F ±1 Digit (75° to 211.8 °F) / ±0.4 °C ±1 Digit (+75 to +99.9 °C) ±0.5 % of mv ±1 Digit (Remaining Range) |
| Resolution | 0 °F / 0.1 °C |
| Temperature - Type KTC | |
| Measuring range | -328.0° to 2498.0 °F / -200 to +1370 °C |
| Accuracy | ±(0.5 °F + 0.1 % of mv) ±1 Digit / ±(0.3 °C + 0.1 % of mv) ±1 Digit |
| Resolution | 0.1 °F / 0.1 °C |
| Differential pressure (internal sensor) - Piezoresistive | |
| Measuring range | -40 to +80 InH2O / -100 to +200 hPa |
| Accuracy | ±(0.0 InH2O + 1 % of mv) ±1 Digit (0 to 25 InH2O) / ±(0.3 Pa + 1 % of mv) ±1 Digit (0 to 25 hPa) ±(0.0 InH2O + 1.5 % of mv) ±1 Digit (10.000 to 80 InH2O) / ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa) |
| Resolution | 0.000 InH2O / 0.001 hPa |
| Absolute Pressure (internal sensor and external probe) | |
| Measuring range | 280 to 440 InH2O / 700 to 1100 hPa |
| Accuracy | ±1 InH2O / ±3 hPa |
| Resolution | 0.1 InH2O / 0.1 hPa |
| General technical data | |
| Weight | 17.99 oz. (instrument) / 510 g (instrument) |
| Dimensions | 8.3 x 3.7 x 1.5 in. ((LxWxH)) / 210 x 95 x 39 mm ((LxWxH)) |
| Operating temperature | 23.0° to 113.0 °F / -5 to +45 °C |
| Housing | Plastic |
| Protection class | IP40 |
| Connectable probes | 4 x digital Bluetooth® probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable |
| Product colour | black/orange |
| Camera image size | Main camera: 8.0 MP; Front camera: 5.0 MP |
| Battery life | approx. 10 hrs continuous operation |
| Display type | 5.0"; touch display, HD 1280*720 pixels, IPS (160 k) |
| Power supply | Rechargeable li-ion battery (5550 mAh) |
| Interface | Bluetooth®; USB; WLAN |
| Memory | 2 GB; 1,000,000 measuring values |
| Storage temperature | -4.0° to 140.0 °F / -20 to +60 °C |
| General technical data | |
| Weight | 98.77 oz. / 2800 g |
| Dimensions | 20.5 x 16.1 x 6.3 in. LxWxH / 520 x 410 x 160 mm LxWxH |
| Housing | Plastic |
| Product colour | Black |
| Ambient CO | |
| Measuring range | 0 to 100 ppm 100.1 to 500 ppm |
| Accuracy | ±3 ppm (0 to 30 ppm) ±5 ppm (30.1 to 100 ppm) ±10 % of mv (100.1 to 500 ppm) |
| Resolution | 0.1 ppm |
| General technical data | |
| Storage temperature | (recommended: 14° to 86 °F) / (recommended: -10 to +30 °C) -4° to 122 °F / -20 to +50 °C |
| Weight | 5.6 oz. / 160 g |
| Dimensions | 7.9 x 2.0 x 1.6 in. / 200 x 50 x 40 mm |
| Operating temperature | 23° to 122 °F / -5 to +50 °C |
| Length probe shaft | 1.181 in. / 30 mm |
| Probe head diameter | 1.181 in. / 30 mm |
| Product colour | black/orange |
| Battery type | 4 x AA batteries |
| Battery life | 70 h |
| Data transfer | Bluetooth® |
| Radio range | 65.616 ft. / 20 m |
| Temperature - NTC | |
| Measuring range | 32° to 122 °F / 0 to +50 °C |
| Accuracy | ±0.9 °F / ±0.5 °C |
| Resolution | 0.1 °F / 0.1 °C |
| Humidity - Capacitive | |
| Measuring range | 5 to 95 %rH |
| Accuracy | ±3 %rH (10 to 35 %rH) ±2 %rH (35 to 65 %rH) ±3 %rH (65 to 90 %rH) ±5 %rH (Remaining Range) ±0.06 %rF/K (32° to +122 °F) / ±0.06 %RH/K (0 to +50 °C) |
| Resolution | 0.1 %rH |
| Absolute Pressure | |
| Measuring range | +280 to +440 InH2O / +700 to +1100 hPa |
| Accuracy | ±1.2 InH2O / ±3.0 hPa |
| Resolution | 0.1 InH2O / 0.1 hPa |
| Ambient CO2 | |
| Measuring range | 0 to 10000 ppm |
| Accuracy | ±(50 ppm + 3 % of mv) (0 to 5000 ppm) ±(100 ppm + 5 % of mv) (5001 to 10000 ppm) |
| Resolution | 1 ppm |
| General technical data | |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
| Weight | 6.9 oz. / 195 g |
| Dimensions | 11.6 x 2.0 x 1.6 in. / 295 x 50 x 40 mm |
| Operating temperature | 23° to 122 °F / -5 to +50 °C |
| Length probe shaft | 5.118 in. / 130 mm |
| Probe head diameter | 1.181 in. / 30 mm |
| Product colour | black/orange |
| Battery type | 4 x AA batteries |
| Battery life | 21.5 h |
| Data transfer | Bluetooth® |
| Radio range | 65.616 ft. / 20 m |
