Testo 400 Comfort Kit - 0563 0409

Item #:

0563-0409

Brand:

Testo

View All

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

0563 0409 400 Comfort Kit by Testo

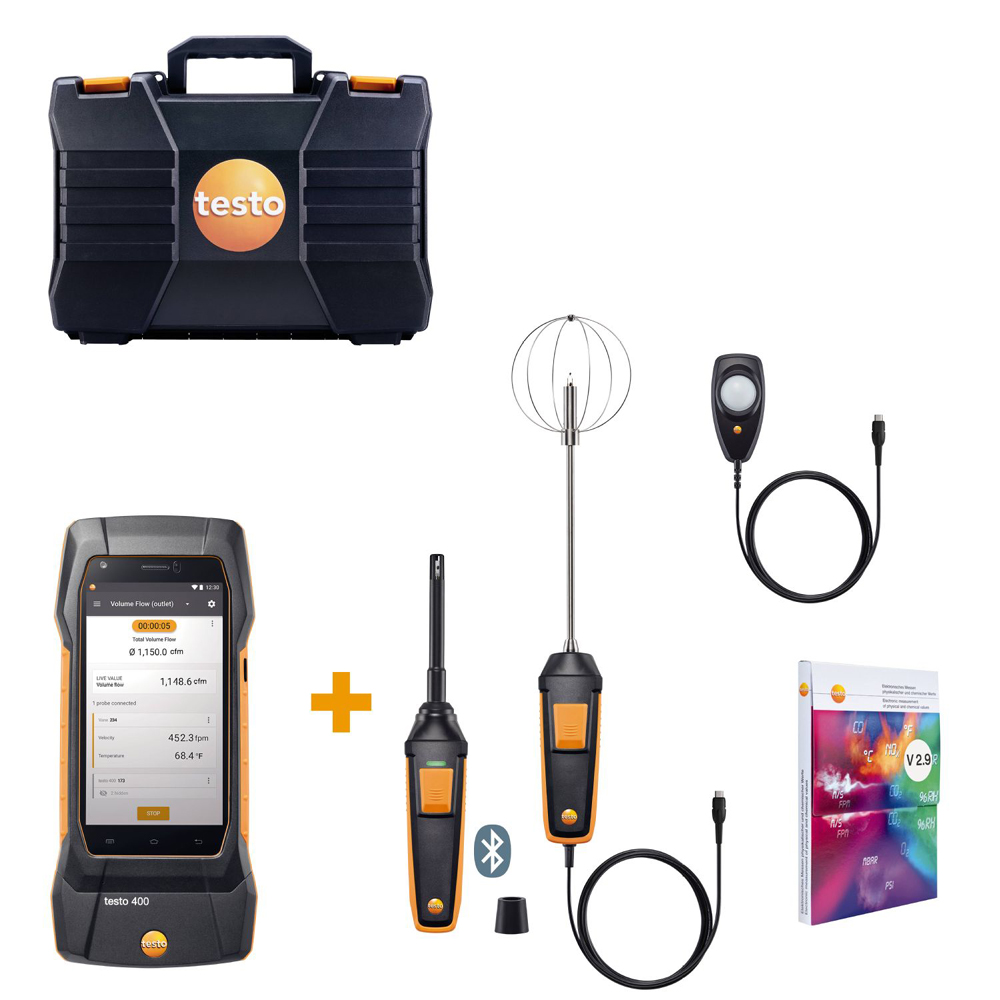

Kits includes:

Universal Airflow / IAQ Instrument
Humidity temperature probe with Bluetooth
Turbulence probe with cable
Lux probe with cable
USB power supply
Software
Pressure connection hose
Service case for comfort measurement with testo 400

Specifications

testo 400 - Universal Air Flow and IAQ Instrument

Temperature - NTC
Measuring range	-40.0° to 302.0 °F / -40 to +150 °C
Accuracy	±0.4 °F ±1 Digit (-13° to 166.8 °F) / ±0.2 °C ±1 Digit (-25 to +74.9 °C) ±0.7 °F ±1 Digit (-40° to -13.2 °F) / ±0.4 °C ±1 Digit (-40 to -25.1 °C) ±0.7 °F ±1 Digit (75° to 211.8 °F) / ±0.4 °C ±1 Digit (+75 to +99.9 °C) ±0.5 % of mv ±1 Digit (Remaining Range)
Resolution	0 °F / 0.1 °C
Temperature - Type KTC
Measuring range	-328.0° to 2498.0 °F / -200 to +1370 °C
Accuracy	±(0.5 °F + 0.1 % of mv) ±1 Digit / ±(0.3 °C + 0.1 % of mv) ±1 Digit
Resolution	0.1 °F / 0.1 °C
Differential pressure (internal sensor) - Piezoresistive
Measuring range	-40 to +80 InH₂O / -100 to +200 hPa
Accuracy	±(0.0 InH₂O + 1 % of mv) ±1 Digit (0 to 25 InH₂O) / ±(0.3 Pa + 1 % of mv) ±1 Digit (0 to 25 hPa) ±(0.0 InH₂O + 1.5 % of mv) ±1 Digit (10.000 to 80 InH₂O) / ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa)
Resolution	0.000 InH₂O / 0.001 hPa
Absolute Pressure (internal sensor and external probe)
Measuring range	280 to 440 InH₂O / 700 to 1100 hPa
Accuracy	±1 InH₂O / ±3 hPa
Resolution	0.1 InH₂O / 0.1 hPa
General technical data
Weight	17.99 oz. (instrument) / 510 g (instrument)
Dimensions	8.3 x 3.7 x 1.5 in. ((LxWxH)) / 210 x 95 x 39 mm ((LxWxH))
Operating temperature	23.0° to 113.0 °F / -5 to +45 °C
Housing	Plastic
Protection class	IP40
Connectable probes	4 x digital Bluetooth® probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable
Product colour	black/orange
Camera image size	Main camera: 8.0 MP; Front camera: 5.0 MP
Battery life	approx. 10 hrs continuous operation
Display type	5.0"; touch display, HD 1280*720 pixels, IPS (160 k)
Power supply	Rechargeable li-ion battery (5550 mAh)
Interface	Bluetooth®; USB; WLAN
Memory	2 GB; 1,000,000 measuring values
Storage temperature	-4.0° to 140.0 °F / -20 to +60 °C

Transport case for IAQ and comfort level measurements

General technical data
Weight	114.64 oz. / 3250 g
Dimensions	20.5 x 16.1 x 8.3 in. LxWxH / 520 x 410 x 210 mm LxWxH
Housing	Plastic
Product colour	Black

Turbulence probe (digital) - wired

Temperature - NTC
Measuring range	32° to 122 °F / 0 to +50 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C
Absolute Pressure
Measuring range	+280 to +440 InH₂O / +700 to +1100 hPa
Accuracy	±1.2 InH₂O / ±3.0 hPa
Resolution	0.1 InH₂O / 0.1 hPa
Velocity - Hot wire anemometer
Measuring range	0 to 984 fpm / 0 to 5 m/s
Accuracy	±(5.91 fpm + 4 % of mv) / ±(0.03 m/s + 4 % of mv)
Resolution	1.97 fpm / 0.01 m/s
General technical data
Storage temperature	-4° to 140 °F / -20 to +60 °C
Weight	8.8 oz. / 250 g
Dimensions	15.7 x 3.5 x 3.5 in. / 400 x 90 x 90 mm
Operating temperature	32° to 122 °F / 0 to +50 °C
Cable length	4.593 ft. / 1.4 m
Probe head diameter	32.283 in. / 820 mm
Product colour	black/orange
Standards	EN ISO 7730 / ASHRAE 55

Lux probe (digital) - for measuring illuminance, wired

Light
Measuring range	0 to 100000 Lux 0 to 9300 ftc
Accuracy	DIN 13032-1 Appendix B F1 = 6 % = V(Lambda) adjustment F2 = 5 % = cos-true evaluation Class C according to DIN 5032-7
Resolution	0.1 Lux (< 10000) 1 Lux (> 10000)
General technical data
Storage temperature	-4° to 122 °F / -20 to +50 °C
Weight	3.9 oz. / 110 g
Dimensions	4.3 x 2.2 x 0.9 in. / 110 x 55 x 22 mm
Operating temperature	32° to 122 °F / 0 to +50 °C
Cable length	4.593 ft. / 1.4 m
Product colour	Black

Humidity/temperature probe (digital) - with Bluetooth®

Temperature - NTC
Measuring range	-4° to 158 °F / -20 to +70 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C
Humidity - Capacitive
Measuring range	0 to 100 %rH
Accuracy	±2 %rH (5 to 90 %rH) ±0.03 %rF/K (k=1)
Resolution	0.1 %rH
General technical data
Storage temperature	-4° to 140 °F / -20 to +60 °C
Weight	5.8 oz. / 165 g
Dimensions	11.4 x 2.0 x 1.6 in. / 290 x 50 x 40 mm
Operating temperature	23° to 122 °F / -5 to +50 °C
Length probe shaft	5.512 in. / 140 mm
Diameter probe shaft	0.472 in. / 12 mm
Product colour	black/orange
Battery type	4 x AA batteries
Battery life	140 h
Data transfer	Bluetooth®
