Testo 860i kit - Wireless thermal imager for smartphones - 0563 0860 01
Item #:
0563-0860-01
Brand:
Testo
Share this product:
0563 0860 01 860i kit - Wireless thermal imager for smartphones by Testo
The new testo 860i wireless thermal imager for smart devices gives users simple operation and display paired with the testo Smart App making it the perfect choice for quick spot checks in the HVAC trade, maintenance, buildings and many other applications.
Testo 860i enables quick and easy measurements of Delta T (differential temperature) in the thermal image using applicationspecific measurement functions: DeltaHeat for quick readings of supply and return temperatures on heating type appliances, DeltaCool for quickly establishing the differential temperature in refrigeration and air conditioning systems.

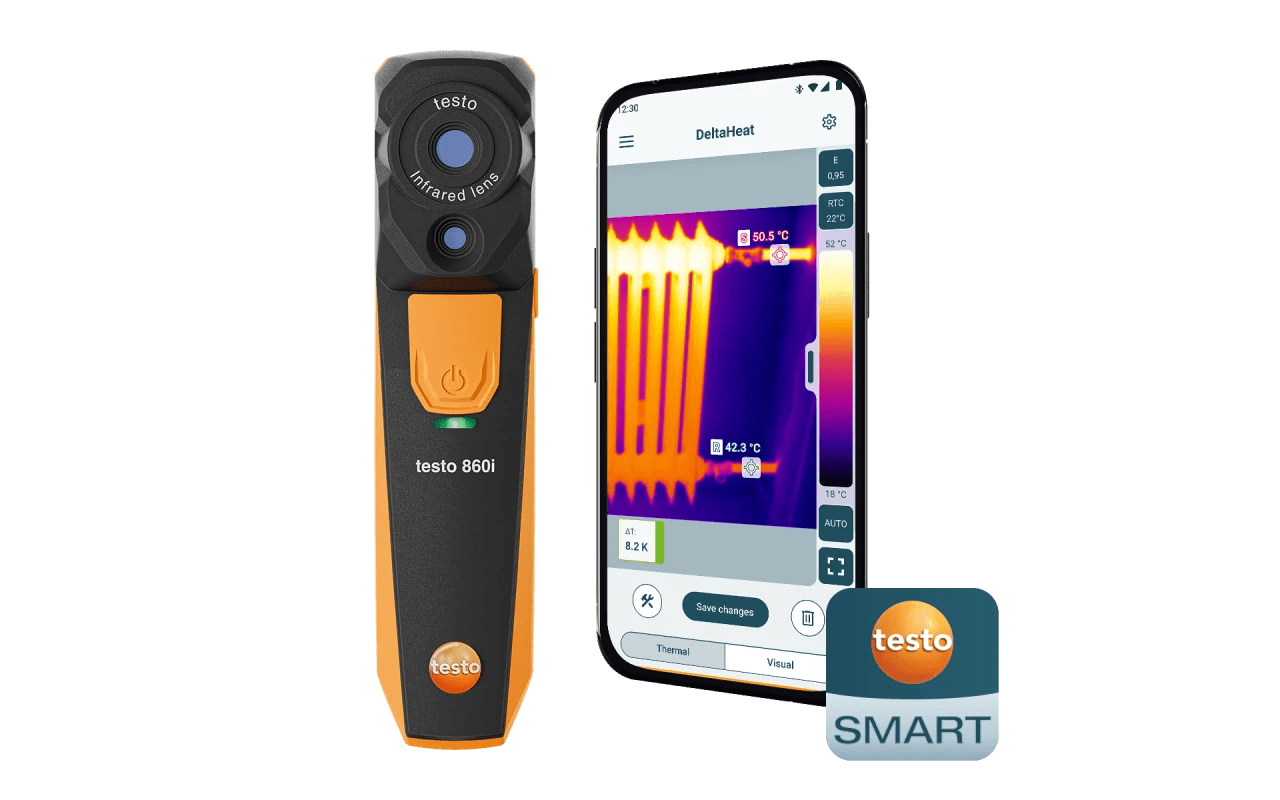

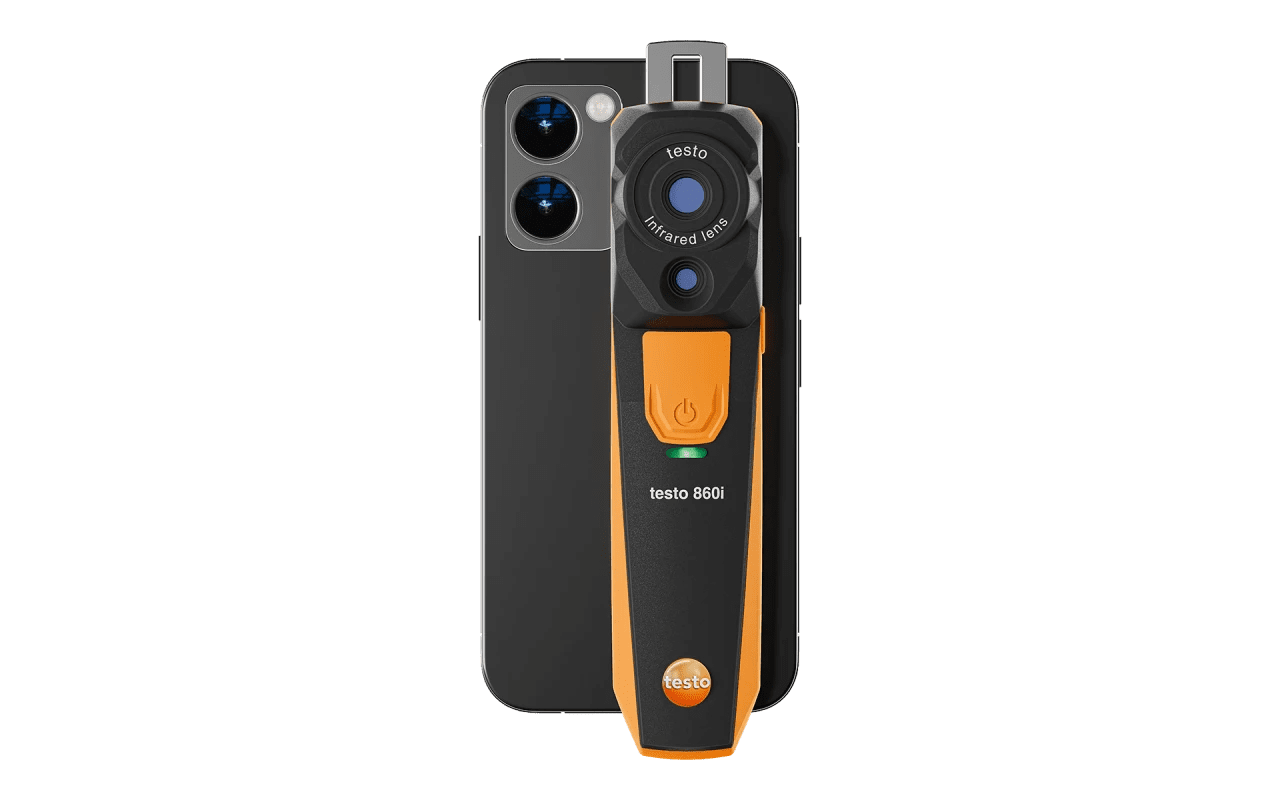

The testo Smart App is used to operate the testo 860i, display the thermal image and differential temperature, and document findings—it's simple, quick, and smart. The testo 860i is versatile and can be directly attached to a smartphone or tablet or used one-handed separately. Designed for everyday field use, with durability, portability, and a rechargeable lithium battery with a 2-hour operating time, the testo 860i is a reliable companion that can see what we cannot see.
- Wirelessly connects to your mobile device for fast inspections with the Testo Smart App
- Razor-sharp thermal images thanks to high infrared resolution (256 x 192 pixels)
- Full Radiometric Temperatures and DeltaT, DeltaHeat, DeltaCool to speed analysis
- Flexibility designed in, use one-handed or clipped directly to your device
- IP54 and Drop Tested (5 ft) for everyday field use.

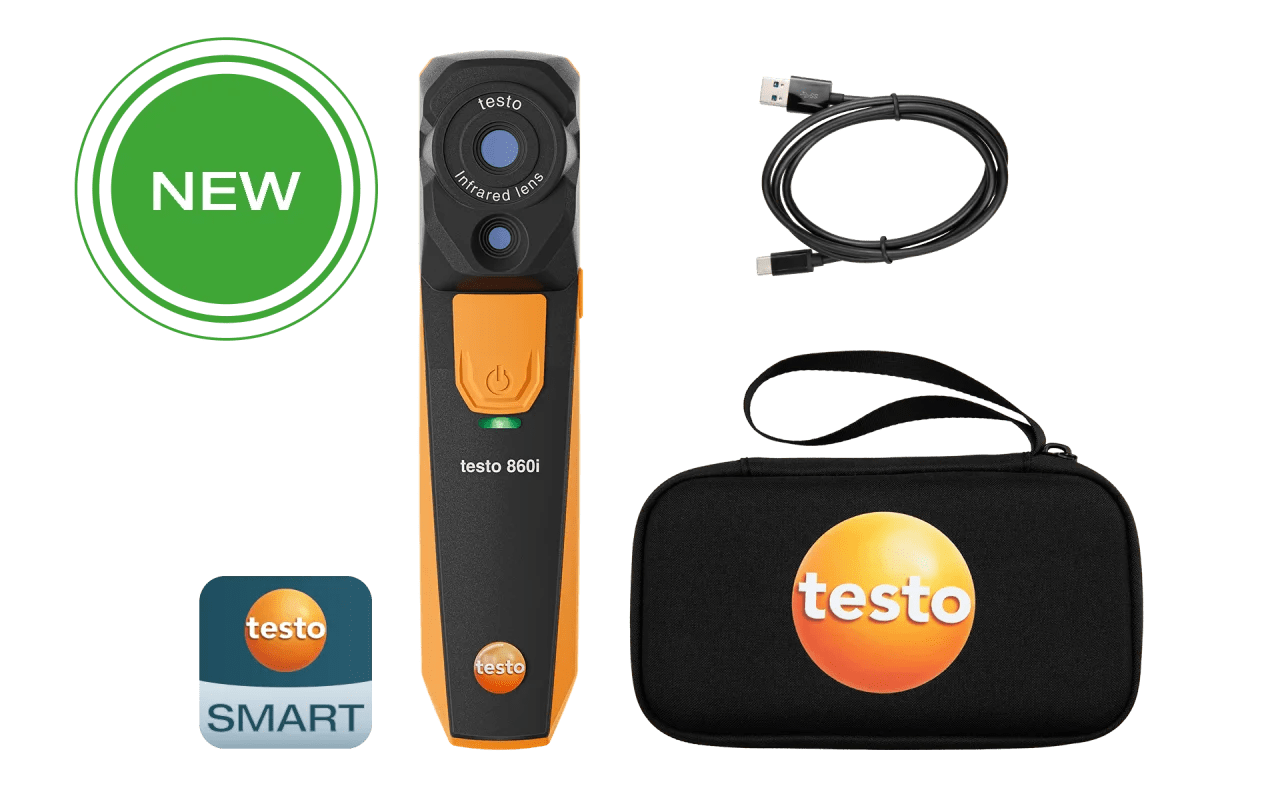

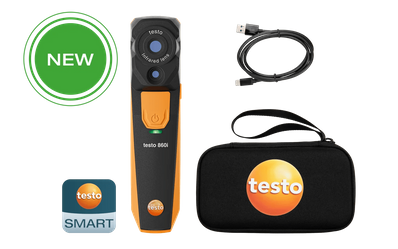

Includes:
- Wireless thermal imager

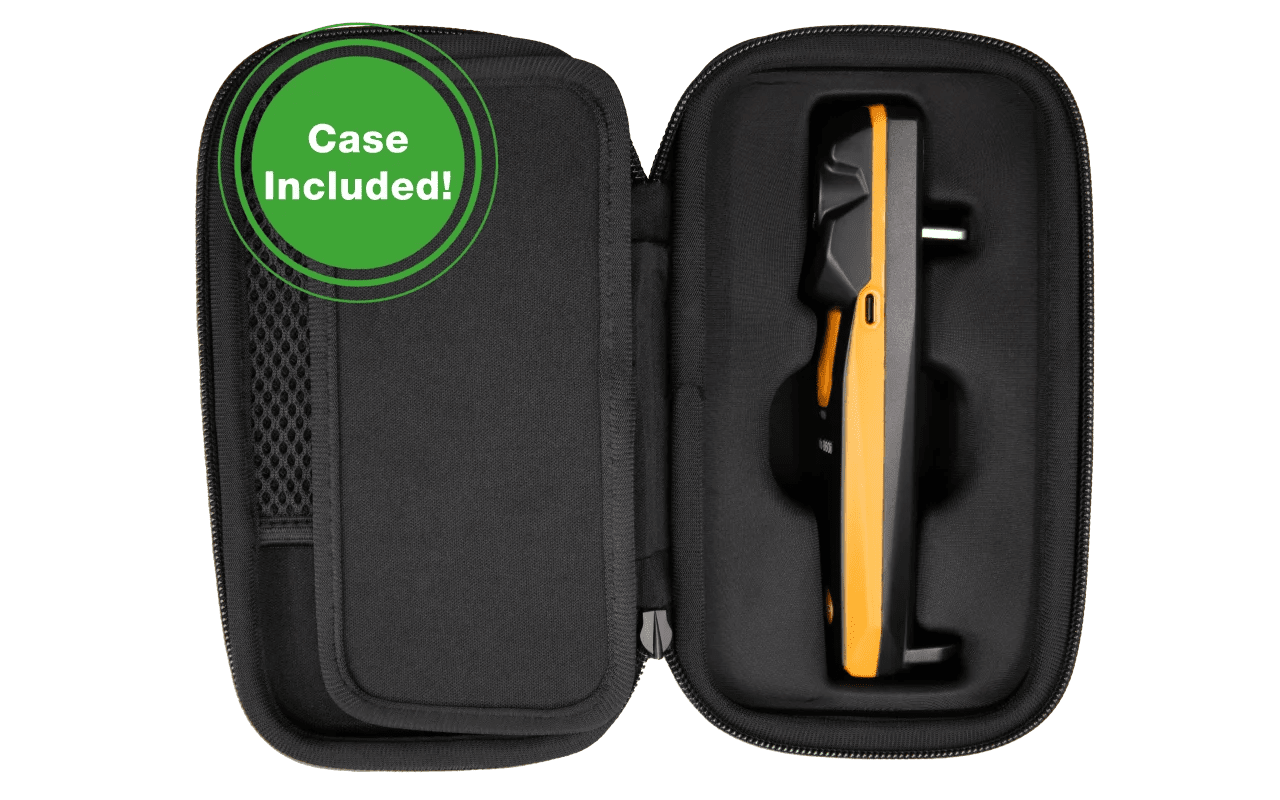

- Bag for safe transport
- USB-C cable
- Cardboard packaging
| Infrared image output | |
| Infrared resolution | 256 x 192 pixels |
| Thermal sensitivity (NETD) | 50 mK |
| Field of view (VFOV/ HFOV)/ min. focusing distance | 48° x 36° / 1 ft |
| Geometric resolution (IFOV) | 3.3 mrad |
| Image refresh rate | 9 Hz |
| Focus | Fixed |
| Spectral range | 8 to 14 μm |
| Visual image output | |
| Image size / min. focusing distance | 640 x 480 pixels / 0.4 m |
| Measurement | |
| Measuring range | -4 to +662 °F (-20 to +350 °C) |
| Accuracy | ±3 °C (5.4°F) or ±3 % of m.v. (at ambient temp. -10 to 40 °C (14°F to 104°F) and scene temp. 0 to +150 °C (32°F to 302°F) or +100 to +350 °C (212°F to 662°F) |
| Emissivity/reflected | 0.01 to 1 / manual (via testo Smart App) |
| Measurement functions (in the testo Smart App) | |
| Analysis functions | Hot/cold spots, Delta T, up to 10 selectable individual measuring points, area measurement (min./max. on area) |
| Application-specific measurement functions | DeltaHeat, DeltaCool, humidity mode |
| Humidity mode – manual | Yes |
| Humidity measurement with humidity measuring instrument | Automatic transfer of the optional testo 605i or testo 625 thermohygrometer readings via Bluetooth to the testo Smart App |
| Electrical mode – manual | Input of current, voltage or power |
| Electrical measurement with clamp meter | Automatic reading transfer of the optional testo 770-3 clamp meter via Bluetooth to the testo Smart App |
| Image presentation (in the testo Smart App) | |
| Display options | IR image, real image |
| Fullscreen mode | Yes |
| Color palettes | Iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT, humidity palette |
| Digital zoom | Yes |
| General app functions | |
| File format | Share saved images as .bmt (for editing in IRSoft), .jpg, and .csv files with the testo Smart App |
| Image storage | On a mobile device |
| Remote-controlled operation | Up to 32ft (10 m) from the mobile device (via WLAN) |
| Power supply | |
| Battery type | Integrated Li-ion rechargeable battery |
| Battery life | 2 hours |
| Charging interface | USB-C |
| Charging time | Approx. 90 min 15-min charge of an empty battery equals 30 min of operating time |
| Ambient conditions | |
| Operating temperature range | 14 to 122 °F (-10 to +50 °C) |
| Storage temperature range | -4 to 140 °F (-20 to +70 °C) |
| Air humidity | 5 to 95 %RH, non-condensing |
| Housing protection class (IEC 60529) | IP54 |
| Impact resistance test | 5 ft (1.5 m) |
| Vibration | IEC 60068-2-6 |
| Physical features | |
| Weight | 6.9oz (195 g) |
| Dimensions | 6.5 x 1.7 x 1.5 in |
| Mobile device attachment | Clip span: min. 4.72 in, max. 6.7 in and device depth up to max. .5 in |
| Tripod socket | 1/4" UNC thread |
| Compatibility | |
| testo Smart App | Requires iOS 17 or later/Android 14 or later Requires mobile terminal device with Bluetooth 4.0 |
| PC software testo IRSoft | Windows 11, Windows 10 |
| Data interface | |
| WLAN* | Communication with the testo Smart App; WLAN: IEEE 802.11b/g/n |
| Bluetooth* | Peer-to-peer for fast connection set-up |
| * An overview of the radio authorisations in the different countries can be found in the download section of the testo 860i product page in the "Quick Start Guide testo 860i" document. | |
