Testo 206 pH2 Instrument Kit - 0563 2062

Testo 206 pH2 Instrument Kit - 0563 2062


0563 2062 206 pH2 Instrument Kit by Testo

The testo 206 series is ideally suited for applications in liquid and semi-solid media. The instruments stand out thanks to the combination of a pH immersion probe and a temperature probe for precise and fast temperature compensation. Thanks to the large volume of gel electrolyte and the dual wall diaphragm, the probe is leak-proof, maintenance-free and insensitive to dirt.

The automatic final value recognition supports the user during measurement. The protective cover TopSafe provides the instruments with the protection class IP68, it is dishwasher-safe, hygienic and protects the measuring instrument from dirt, water and impact.

The testo 206-pH1 is specially designed for fast pH checks in liquids.

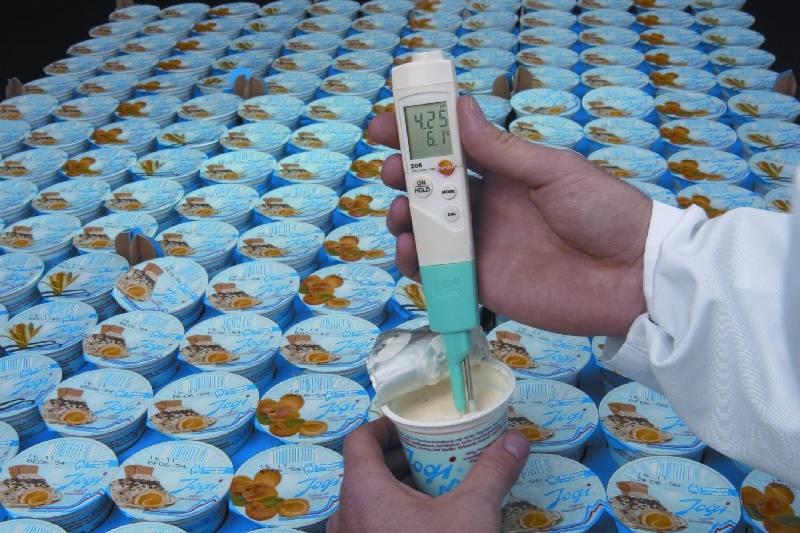

The testo 206-pH2 is ideally suited for pH measurement in semi-solid and protein-rich foods such as jellies, creams, cheese, fruit etc.

The testo 206-pH3 is equipped with a BNC socket which allows the connection of any pH probes to the instrument, depending on the application. This makes the instrument universally applicable.

Kit includes:

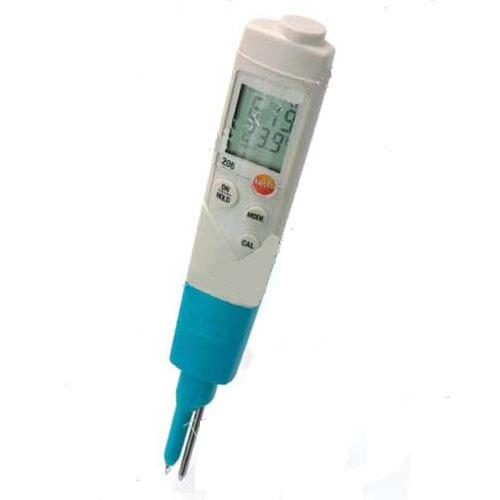

  • One-hand pH/°C measuring instrument

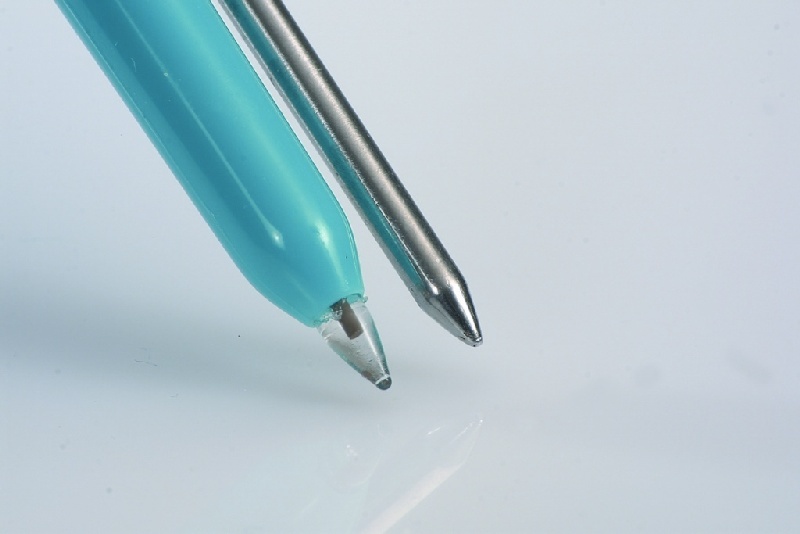

  • pH2 probe head for semi-solid substances, incl. storage cap with gel
  • TopSafe
  • Belt/wall holder

  • Ideally suited to applications in liquid and semi-solid media (e.g. in the food sector)
  • Built-in temperature sensor
  • Maintenance-free gel electrolyte
  • Robust, waterproof and dishwasher-safe protective cover (TopSafe, protection class IP65)
  • Automatic final value recognition (Auto-hold)
  • Two-line display
  • 1, 2, or 3-point calibration possible
Probe type NTC Meas. range: 0 to 60 °C (Short-term to +80 °C max. 5 min)
Accuracy ±1 digit: ±0.4 °C
Resolution: 0.1 °C
Probe type PH electrode Meas. range: 0 to 14 pH
Accuracy ±1 digit: ±0.02 pH
Resolution: 0.01 pH
Storage temp. -20 to +70 °C
Oper. temp. 0 to +60 °C
No. meas. channels 2 channel
Temperature compensation Automatic
Meas. rate 2 measurements per second
Battery type 1x CR2032
Material/Housing ABS with TopSafe, Protection type IP 68
Battery life 80 h (Auto Off 10 min)
Weight 69 g
Dimensions 197 x 33 x 20 mm
Display LCD, 2 lines
