Testo 440 Delta P Air Flow ComboKit 1 with Bluetooth - 0563 4409

Item #:

0563-4409

Brand:

Testo

View All

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

0563 4409 440 Delta P Air Flow ComboKit 1 with Bluetooth by Testo

With the testo 440 delta P flow ComboKit 1 with Bluetooth®, all IAQ-related parameters at air vents, in ducts and at filters can be measured and documented wirelessly. The air velocity & IAQ measuring instrument recognizes probes automatically, and its structured measurement menus simplify the adjustment of air conditioning and ventilation systems. In addition to a Bluetooth® probe, a wired probe and a thermocouple Type K temperature probe can also be connected to the measuring instrument.

The versatile Bluetooth® handle allows the connection of many different wireless probe heads for all applications. The kit also contains a vane probe head, a hot wire probe head, an extendable telescope for flow velocity probes and a storage case.

Structured, intuitive measurement menus for volume flow
Parallel measurement of flow, differential pressure, humidity and temperature
Universal Bluetooth® handle for different wireless probe heads
Internal data storage and USB port for data export
Integrated differential pressure sensor and a large portfolio of digital probes

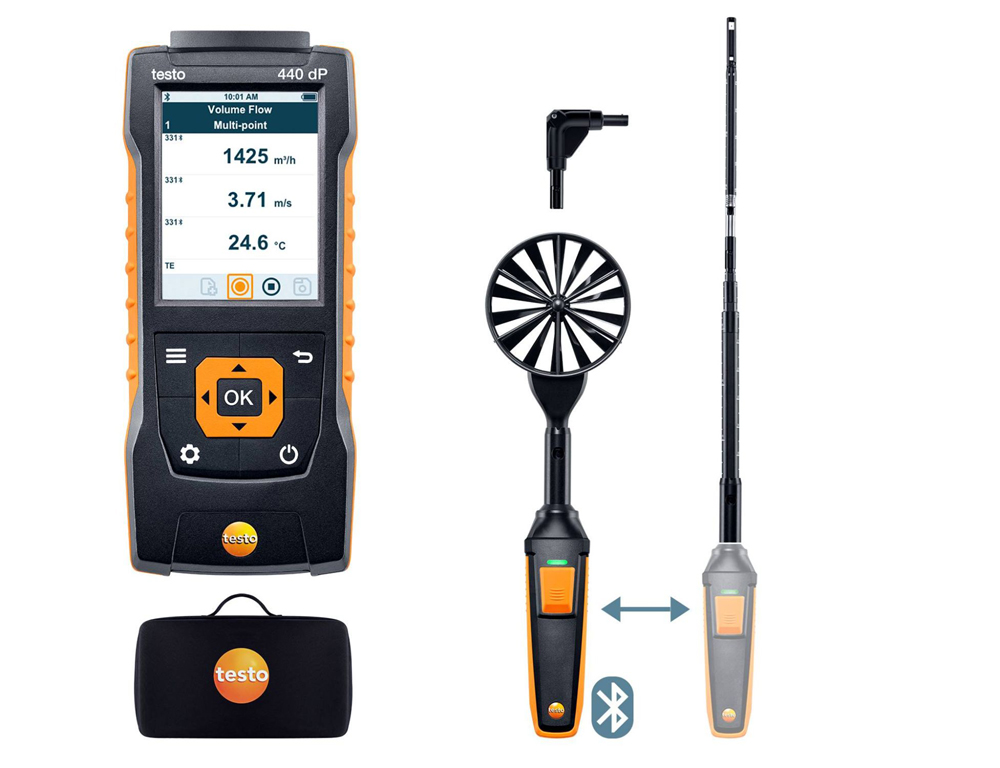

Kit Includes:

testo 440 dP air velocity & IAQ measuring instrument, incl. differential pressure sensor, connection hose, 3x AA batteries, USB cable and calibration protocol (0560 4402)
Vane probe (Ø 100 mm) with Bluetooth® incl. temperature sensor (consisting of 100 mm vane probe head, handle adapter and Bluetooth® handle); bracket for testovent measurement funnel; 4x AA batteries and calibration protocol (0635 9431)
Hot wire probe head (Ø 9 mm) including temperature and humidity sensor and calibration protocol (0635 1570)
Extendable telescope (length up to 1 m) for flow probes with a universal handle including 90° angle (0554 0960)
Combi-case for testo 440 and multiple probes (0516 4401)

Specifications

testo 440 dP - Air velocity and IAQ measuring instrument with differential pressure sensor

Temperature - NTC	Measuring range	-40° to 302 °F / -40 to +150 °C
	Accuracy	±0.7 °F (-40° to -13.2 °F) / ±0.4 °C (-40 to -25.1 °C) ±0.5 °F (-13° to 166.8 °F) ±0.7 °F (167° to 211.8 °F) / ±0.4 °C (+75 to +99.9 °C) ±0.5 % of mv (Remaining Range)
	Resolution	0.1 °F / 0.1 °C
Temperature - Type K TC	Measuring range	-328.0° to 2498.0 °F / -200 to +1370 °C
	Accuracy	±(0.5 °F + 0.3 % of mv) / ±(0.3 °C + 0.3 % of mv)
	Resolution	0.1 °F / 0.1 °C
Differential pressure (internal sensor) - Piezoresistive	Measuring range	-60 to +60 InH₂O / -150 to +150 hPa
	Accuracy	±0.02 InH₂O (0 to 0.40 InH₂O) / ±0.05 hPa (0 to 1.00 hPa) ±0.1 InH₂O + 1.5 % of mv / ±0.2 hPa + 1.5 % of mv (0.40 to +60 InH₂O) / (1.01 to +150 hPa)
	Resolution	0.00 InH₂O / 0.01 hPa
Weight		8.8 oz. / 250 g
Dimensions		6.1 x 2.6 x 1.3 in. / 154 x 65 x 32 mm
Operating temperature		-4.0° to 122.0 °F / -20 to +50 °C
Product colour		black/orange
Connectable probes		1 x digital probe with cable or 1 x Temperature NTC TUC, 1 x digital Bluetooth probe or testo Smart Probe, 1 x differential pressure (internal), 1 x Temperature TC Type K
Battery type		3 x AA 1.5 V
Battery life		12 h (typically vane measurement)
Interface		Bluetooth®; USB
Storage temperature		-4.0° to 122.0 °F / -20 to +50 °C

Vane probe (Ø 100 mm, digital) - with Bluetooth® including temperature sensor

Temperature - NTC	Measuring range	-4° to 158 °F / -20 to +70 °C
	Accuracy	±0.9 °F / ±0.5 °C
	Resolution	0.1 °F / 0.1 °C
Velocity / Volume flow	Measuring range	59.1 to 6890 fpm / 0.3 to 35 m/s
	Accuracy	±(19.7 fpm + 1.5 % of mv) (59.1 to 3937 fpm) / ±(0.1 m/s + 1.5 % of mv) (0.3 to 20 m/s) ±(39.4 fpm + 1.5 % of mv) (3938.98 to 6890 fpm) / ±(0.2 m/s + 1.5 % of mv) (20.01 to 35 m/s)
	Resolution	1.97 fpm / 0.01 m/s
Storage temperature		-4° to 140 °F / -20 to +60 °C
Weight		12.7 oz. / 360 g
Dimensions		14.8 x 4.1 x 1.8 in. / 375 x 105 x 46 mm
Operating temperature		23° to 122 °F / -5 to +50 °C
Probe head diameter		3.937 in. / 100 mm
Product colour		black/orange
Battery type		4 x AA batteries
Battery life		60 h
Data transfer		Bluetooth®
Radio range		65.616 ft. / 20 m

Hot wire probe head including temperature and humidity sensor

Temperature - NTC	Measuring range	-4° to 158 °F / -20 to +70 °C
	Accuracy	±0.9 °F (32° to 158 °F) / ±0.5 °C (0 to +70 °C) ±1.4 °F (-4° to 32 °F) / ±0.8 °C (-20 to 0 °C)
	Resolution	0.1 °F / 0.1 °C
Humidity - Capacitive	Measuring range	5 to 95 %rH
	Accuracy	±3 %rH (10 to 35 %rH) ±2 %rH (35 to 65 %rH) ±3 %rH (65 to 90 %rH) ±5 %rH (Remaining Range) ±0.06 %rF/K (k=1)
	Resolution	0.1 %rH
Absolute Pressure	Measuring range	+280 to +440 InH₂O / +700 to +1100 hPa
	Accuracy	±1.2 InH₂O / ±3.0 hPa
	Resolution	0.1 InH₂O / 0.1 hPa
Velocity - Hot wire anemometer	Measuring range	0° to 9843 fpm / 0 to 50 m/s
	Accuracy	±(5.91 fpm + 4 % of mv) / ±(0.03 m/s + 4 % of mv) (0 to 3937 fpm) / (0 to 20 m/s) ±(98.4 fpm + 5 % of mv) / ±(0.5 m/s + 5 % of mv) (3938.98 to 5906 fpm) / (20.01 to 30 m/s)
	Resolution	0.10 %rH
Storage temperature		-4° to 158 °F / -20 to +70 °C
Weight		1.2 oz. / 35 g
Dimensions		9.3 x 0.4 x 0.4 in. / 235 x 9 x 9 mm
Operating temperature		-4 to +158 °F / -20 to +70 °C
Length probe shaft		9.055 in. / 230 mm
Diameter probe shaft		0.354 in. / 9 mm
Product colour		Black

Extendable telescope (up to 1 m in length) for flow probes

Weight		5.5 oz. / 155 g
Dimensions		telescope: 14.8 x 0.7 x 0.6 in. / telescope: 375 x 17 x 16 mm angle: 2.6 x 2.6 x 0.6 in. / angle: 65 x 65 x 15 mm
Operating temperature		23° to 122 °F / -5 to +50 °C
Length telescope		39.37 in. / 1,000 mm
Diameter telescope		0.472 in. / 12 mm
Product colour		Black
Storage temperature		-4° to 140 °F / -20 to +60 °C

Combi-case - for testo 440 and multiple probes

Weight		49.4 oz. / 1400 g
Dimensions		20.3 x 5.3 x 10.1 in. / 516 x 135 x 256 mm
Operating temperature		-4° to 158 °F / -20 to +70 °C
Product colour		Black
