Testo 440 Delta P Air Flow ComboKit 2 with Bluetooth - 0563 4410

Item #:

0563-4410

Brand:

Testo

View All

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

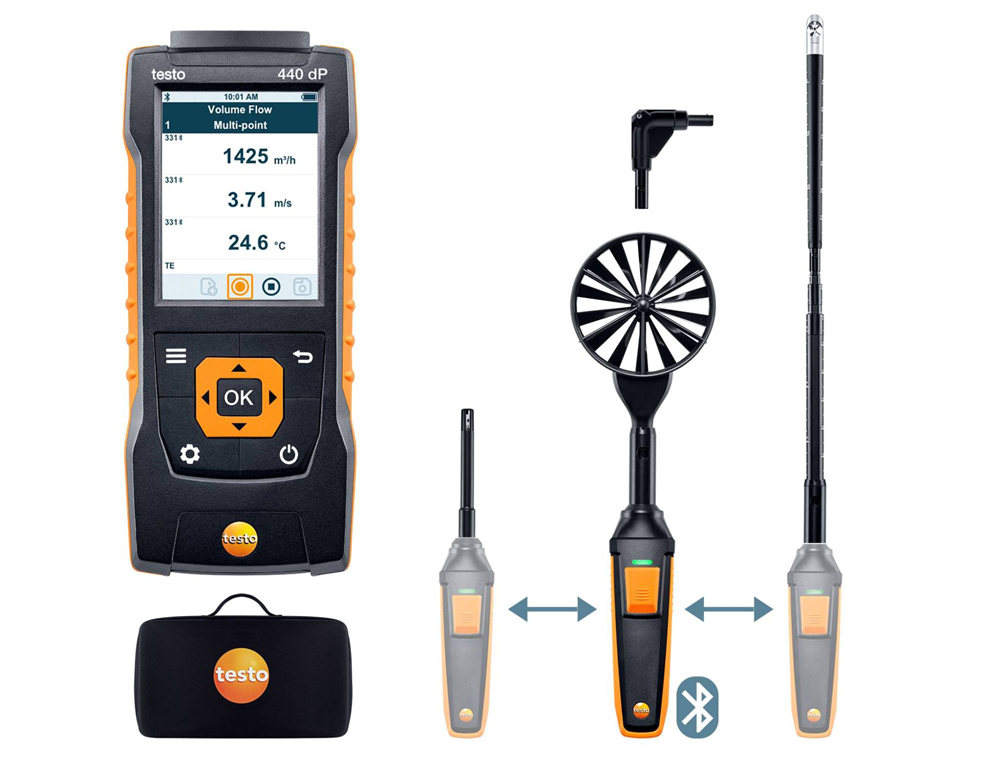

0563 4410 440 Delta P Air Flow ComboKit 2 with Bluetooth by Testo

Carry out measurements without any annoying cables: use the kit to handle all relevant measurements in ventilation ducts and at air/ceiling outlets. You will receive the testo 440 dP air velocity and IAQ measuring instrument including differential pressure sensor, two vane probe heads (Ø 100 mm and Ø 16 mm) and a humidity/temperature probe head - all three can be attached to the universal Bluetooth® handle supplied. To make measurements more convenient, both vane probe heads can be combined with the telescope included in the kit. The equipment can be transported safely and conveniently in the robust case.

Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, differential pressure, humidity and temperature in ventilation ducts, at ventilation outlets and in work rooms
Space-saving: combine the universal Bluetooth handle with the humidity/temperature probe head or extendable telescope (1.0 m). Vane probe heads (Ø 16 mm, Ø 100 mm) can simply be plugged onto the telescope
Convenient: wireless probes, internal data storage and USB port for data export
As multifaceted as your challenges themselves: the testo 440 dP has an integrated differential pressure sensor and can be expanded with a large portfolio of digital probes

Kit Includes:

testo 440 dP air velocity and IAQ measuring instrument including differential pressure sensor, connection hose, 3 x AA batteries, USB cable and calibration protocol (0560 4402)
Vane probe (Ø 100 mm) with Bluetooth® including temperature sensor (consisting of 100 mm vane probe head, handle adapter and Bluetooth® handle); bracket for testovent measurement funnel; 4 x AA batteries and calibration protocol (0635 9431)
16 mm vane probe head including temperature sensor and calibration protocol (0635 9570)
Humidity/temperature probe head (Ø 12 mm) including calibration protocol (0636 9730)
Extendable telescope (up to 1 m in length) for flow probes with a universal handle including 90° angle (0554 0960)
Combi-case for testo 440 and multiple probes (0516 4401)

Specifications

testo 440 dP - Air velocity and IAQ measuring instrument with differential pressure sensor

Temperature - NTC	Measuring range	-40° to 302 °F / -40 to +150 °C
	Accuracy	±0.7 °F (-40° to -13.2 °F) / ±0.4 °C (-40 to -25.1 °C) ±0.5 °F (-13° to 166.8 °F) ±0.7 °F (167° to 211.8 °F) / ±0.4 °C (+75 to +99.9 °C) ±0.5 % of mv (Remaining Range)
	Resolution	0.1 °F / 0.1 °C
Temperature - Type K TC	Measuring range	-328.0° to 2498.0 °F / -200 to +1370 °C
	Accuracy	±(0.5 °F + 0.3 % of mv) / ±(0.3 °C + 0.3 % of mv)
	Resolution	0.1 °F / 0.1 °C
Differential pressure (internal sensor) - Piezoresistive	Measuring range	-60 to +60 InH₂O / -150 to +150 hPa
	Accuracy	±0.02 InH₂O (0 to 0.40 InH₂O) / ±0.05 hPa (0 to 1.00 hPa) ±0.1 InH₂O + 1.5 % of mv / ±0.2 hPa + 1.5 % of mv (0.40 to +60 InH₂O) / (1.01 to +150 hPa)
	Resolution	0.00 InH₂O / 0.01 hPa
Weight		8.8 oz. / 250 g
Dimensions		6.1 x 2.6 x 1.3 in. / 154 x 65 x 32 mm
Operating temperature		-4.0° to 122.0 °F / -20 to +50 °C
Product colour		black/orange
Connectable probes		1 x digital probe with cable or 1 x Temperature NTC TUC, 1 x digital Bluetooth probe or testo Smart Probe, 1 x differential pressure (internal), 1 x Temperature TC Type K
Battery type		3 x AA 1.5 V
Battery life		12 h (typically vane measurement)
Interface		Bluetooth®; USB
Storage temperature		-4.0° to 122.0 °F / -20 to +50 °C

Vane probe (Ø 100 mm, digital) - with Bluetooth® including temperature sensor

Temperature - NTC	Measuring range	-4° to 158 °F / -20 to +70 °C
	Accuracy	±0.9 °F / ±0.5 °C
	Resolution	0.1 °F / 0.1 °C
Velocity / Volume flow	Measuring range	59.1 to 6890 fpm / 0.3 to 35 m/s
	Accuracy	±(19.7 fpm + 1.5 % of mv) (59.1 to 3937 fpm) / ±(0.1 m/s + 1.5 % of mv) (0.3 to 20 m/s) ±(39.4 fpm + 1.5 % of mv) (3938.98 to 6890 fpm) / ±(0.2 m/s + 1.5 % of mv) (20.01 to 35 m/s)
	Resolution	1.97 fpm / 0.01 m/s
Storage temperature		-4° to 140 °F / -20 to +60 °C
Weight		12.7 oz. / 360 g
Dimensions		14.8 x 4.1 x 1.8 in. / 375 x 105 x 46 mm
Operating temperature		23° to 122 °F / -5 to +50 °C
Probe head diameter		3.937 in. / 100 mm
Product colour		black/orange
Battery type		4 x AA batteries
Battery life		60 h
Data transfer		Bluetooth®
Radio range		65.616 ft. / 20 m

16 mm vane probe head including temperature sensor

Temperature - NTC	Measuring range	14° to 158 °F / -10 to +70 °C
	Accuracy	±3.2 °F / ±1.8 °C
	Resolution	0.1 °F / 0.1 °C
Velocity / Volume flow	Measuring range	118.1 to 9843 fpm / 0.6 to 50 m/s
	Accuracy	±(39.4 fpm + 1 % of mv) (118.1 to +7874 fpm) / ±(0.2 m/s + 1 % of mv) (0.6 to +40 m/s) ±(39.4 fpm + 2 % of mv) (7893.7 to 9843 fpm) / ±(0.2 m/s + 2 % of mv) (40.1 to 50 m/s)
	Resolution	19.7 fpm / 0.1 m/s
Storage temperature		14° to 158 °F / -10 to +70 °C
Weight		2.1 oz. / 60 g
Dimensions		9.6 x 0.6 x 0.6 in. / 245 x 16 x 16 mm
Operating temperature		14° to 158 °F / -10 to +70 °C
Length probe shaft		9.055 in. / 230 mm
Diameter probe shaft		0.63 in. / 16 mm
Probe head diameter		0.63 in. / 16 mm
Product colour		Black

Humidity/temperature probe head

Temperature - NTC	Measuring range	-4° to 158 °F / -20 to +70 °C
	Accuracy	±0.9 °F / ±0.5 °C
	Resolution	0.1 °F / 0.1 °C
Humidity - Capacitive	Measuring range	0 to 100 %rH
	Accuracy	±2 %rH (5 to 90 %rH) ±0.03 %rF/K (k=1)
	Resolution	0.1 %rH
Storage temperature		-4° to 158 °F / -20 to +70 °C
Weight		1.1 oz. / 30 g
Dimensions		6.3 x 1.1 x 1.1 in. / 160 x 28 x 28 mm
Operating temperature		-4° to 158 °F / -20 to +70 °C
Length probe shaft		5.512 in. / 140 mm
Diameter probe shaft		0.472 in. / 12 mm
Product colour		Black

Extendable telescope (up to 1 m in length) for flow probes

Weight		5.5 oz. / 155 g
Dimensions		telescope: 14.8 x 0.7 x 0.6 in. / telescope: 375 x 17 x 16 mm angle: 2.6 x 2.6 x 0.6 in. / angle: 65 x 65 x 15 mm
Operating temperature		23° to 122 °F / -5 to +50 °C
Length telescope		39.37 in. / 1,000 mm
Diameter telescope		0.472 in. / 12 mm
Product colour		Black
Storage temperature		-4° to 140 °F / -20 to +60 °C

Combi-case - for testo 440 and multiple probes

Weight		49.4 oz. / 1400 g
Dimensions		20.3 x 5.3 x 10.1 in. / 516 x 135 x 256 mm
Operating temperature		-4° to 158 °F / -20 to +70 °C
Product colour		Black
