Testo 550s Smart Kit - Smart Digital Manifold with Wireless Clamp Temperature Probes and Wireless Vacuum Probe - 0564 5504 01

Item #:
0564-5504-01
Brand:
Testo
$679.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Testo 550s Smart Kit - Smart Digital Manifold with Wireless Clamp Temperature Probes and Wireless Vacuum Probe - 0564 5504 01

Testo 550s Smart Kit - Smart Digital Manifold with Wireless Clamp Temperature Probes and Wireless Vacuum Probe - 0564 5504 01

$679.00

0564 5504 01 550s Smart Kit - Smart Digital Manifold with Wireless Clamp Temperature Probes and Wireless Vacuum Probe by Testo

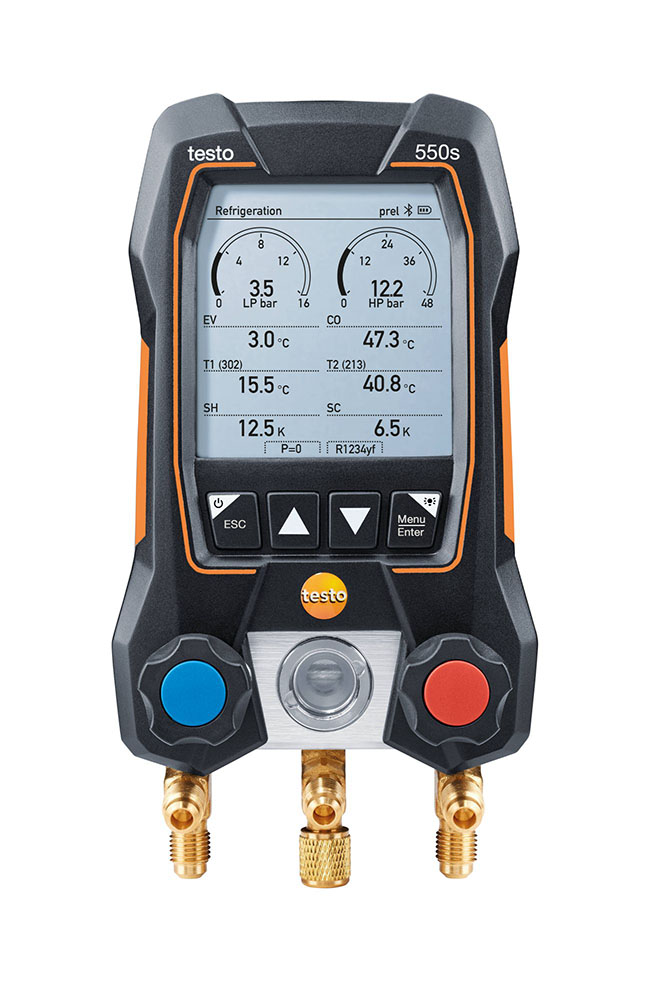

The testo 550s digital manifold with 2-way valve block enables you to carry out your measurements on refrigeration, air conditioning systems, and heat pumps fast. The large display helps evaluate the results in graphic forms. Stored programs guide you through measurements and enable the automatic determination of numerous important system parameters such as superheating/subcooling, target superheat, cooling/heating capacity and many other areas.

Bluetooth probes for temperature, vacuum, and humidity can be easily connected and offer maximum flexibility in their application. In conjunction with the testo Smart App, you can take care of digital documentation directly on site.

Its proven quality and great durability guarantee the continuously high performance of your manifold in all conditions.

Includes:

  • testo 550s digital 2-way manifold including batteries (4 x AA) and calibration protocol
  • 2 x testo 115i wireless Bluetooth clamp thermometers
  • testo 552i wireless Bluetooth vacuum probe
  • Transport case
  • testo Smart App (free download)
  • Instruction manuals

  • Large graphic display shows all results at a glance
  • Simple wireless humidity, temperature, and vacuum measurements via Bluetooth connectivity
  • Fast and easy pressure value display in analog look
  • Rugged housing with IP 54 for maximum reliability in daily use
  • Refrigerant listing updates automatically using the App
  • Integrated calculation of the target superheat
  • Easy to Use
testo 550s Specifications
Sensor Specifications
  Pressure Temperature
Measuring range -14 to 870 psi (-1 to 60 bar) -58 to 302 °F
Accuracy (at 71.6 °F) ±0.5% fs ±0.9 °F
Resolution 0.1 psi (0.01 bar) 0.1 °F
Probe connections 3 x 7/16" – UNF 2 x plug-in (NTC)
Overload 940 psi -
General technical data
Operating temperature 14 to 122 °F
Storage temperature -4 to 140 °F
Battery type 4 AA batteries
Battery life 250 hrs with no illumination, no Bluetooth®
100 hrs with illumination and Bluetooth®
Auto power off After 10 minutes when not connected via Bluetooth
Dimensions 8.3 x 4.8 x 2.4 in
Weight 1.8 lbs
Protection class IP54
Bluetooth technology/ range Bluetooth® 5.0 (up to 500 ft)
Compatibility requires iOS 11.0 or newer/Android 6.0 or newer
requires mobile terminal device with Bluetooth® 4.0

testo 115i Specifications
Sensor Specifications
Measuring range -40 to 302 °F
Accuracy ±1 digit ±2.3 °F (-4 to 185 °F)
Resolution 0.18 °F
General technical data
Compatibility requires iOS 11.0 or newer/Android 6.0 or newer
requires mobile terminal device with Bluetooth® 4.0
Storage temperature -4 to 140 °F
Operating temperature -4 to 122 °F
Battery type 3 AAA batteries
Battery life 150 hrs
Dimensions 7.2 x 3.54 x 1.18 in
Bluetooth® range up to 325 ft
Weight 4.49 oz.

testo 552i Specifications
Sensor Specifications
Measuring range 0 to 20,000 microns (0 to 26.66 mbar)
Accuracy ±1 digit ±10 microns + 10% of m.v. (100 to 1000 microns)
Resolution 1 micron (0 to 1000 microns)
10 microns (1000 to 2000 microns)
100 microns (2000 to 5000 microns)
Connection 7/16" – UNF
Overload 87 psi (relative: 72 psi)
General technical data
Connection Bluetooth 5.0
Bluetooth® range 425 feet
Storage temperature -4 to 122 °F
Operating temperature -14 to 122 °F
Battery type 3 AAA batteries
Battery life 39 hrs
Auto power off After 10 minutes when not connected via Bluetooth
Protection class IP54
Dimensions 5.90 x 1.25 x 1.22 in
Weight 5 oz
