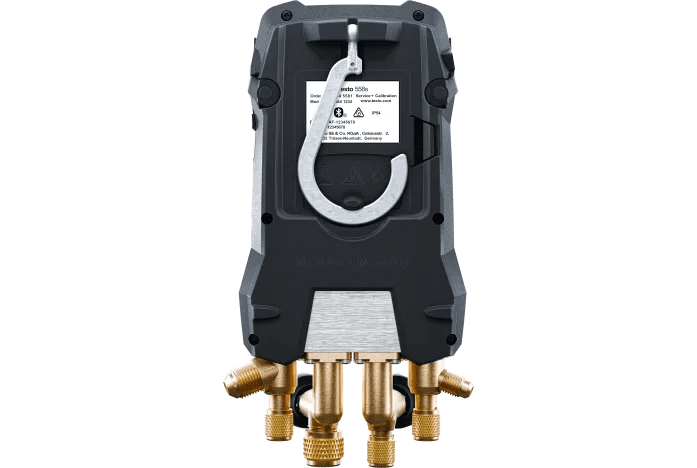

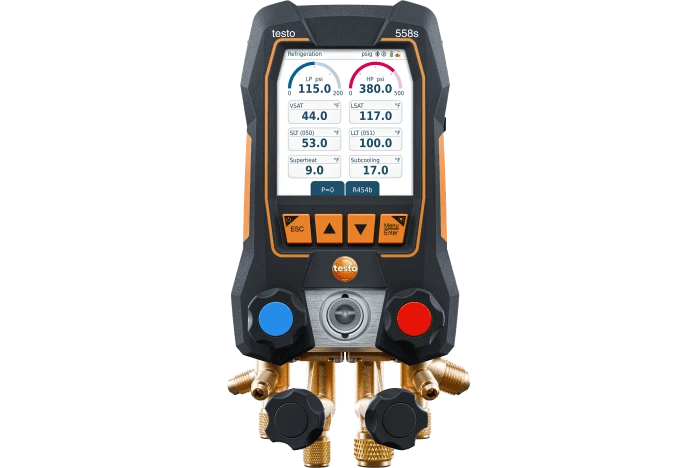

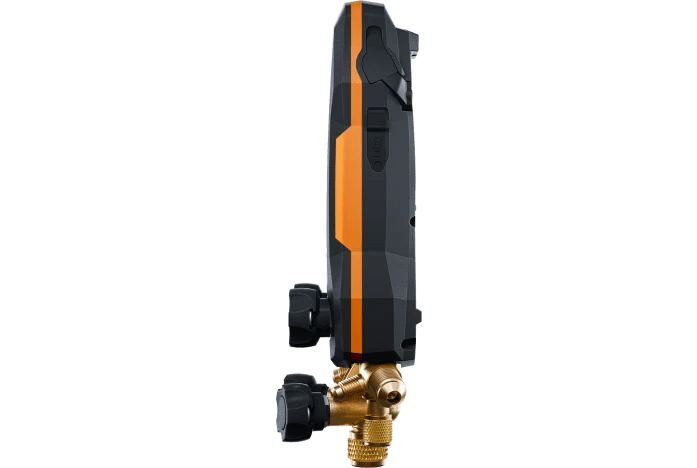

Testo 558s Digital Manifold Kit with hoses - 0564 5583 01

0564 5583 01 558s Digital Manifold Kit with hoses by Testo

Providing a dynamic view of trending data in the palm of your hand – that's where digital manifold testo 558s excels. Interpreting data is even more important to ensuring an efficient refrigeration system with today's standards. Touchscreen operation makes configuration, control and documentation even easier. Alternatively, the instrument can be operated entirely via the testo Smart App or via buttons for working with gloves. To make everyday work even easier, the measurement results can be shown on a large color display in clear graphs as 30-minute data trends to make critical diagnostic decision even faster.

The high measuring pressure accuracy of 0.25 % full scale enables quick and reliable measurements supports getting the job done efficiently and limiting call backs. Thanks to the large number of stored measurement menus and connectivity across the entire Testo refrigeration portfolio, any application can be controlled via the manifold.

For maximum safety, the manifold is compatible with flammable class A2L and A3 refrigerants. With over 90+ refrigerants stored in the manifold and regular Over-The-Air updates, the manifold is always up to date and ready to accomplish any task.

• Dynamic app feel with touchscreen and graphical measurements showing data trends over 30 minutes
• Full flexibility thanks to unique operability via touchscreen, classic operation via keypad and testo Smart App Integration
• Superior pressure measuring accuracy of +/- 0.25% full scale ensures accurate results
• Everything in one instrument: All applications in one manifold thanks to wireless connection to the testo Smart Probes, Vacuum pump, Clamp meter, and Refrigerant scale with Intelligent Valve
• A2L and A3 compatible for maximum safety even with flammable refrigerants
• Always ready to go dual power system consisting of batteries and rechargeable battery (USB-C)

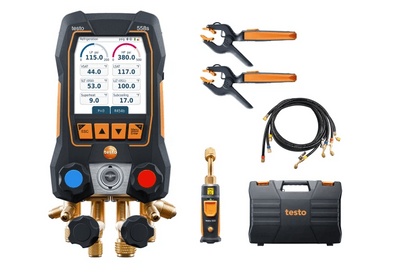

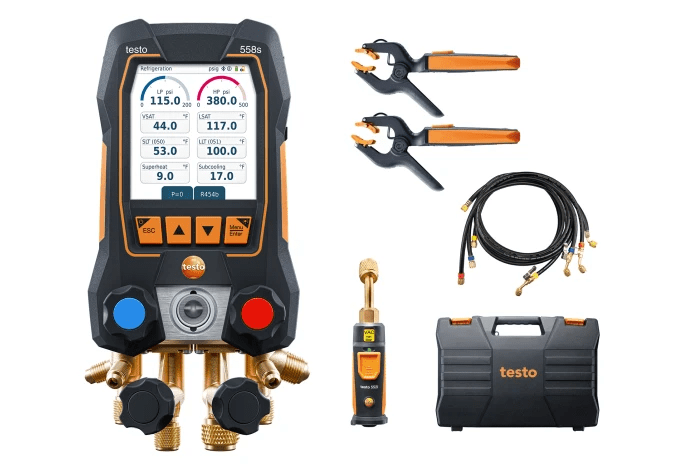

Includes:

• testo 558s digital 4-way manifold
• 2 x testo 115i wireless clamp thermometers
• 1 x testo 552i wireless vacuum probe
• 4 x charging hoses with valve 1/4" - 1/4" SAE
• Transport case
• USB-C cable
• testo Smart App (free download)
• Calibration protocol
• Instruction manual
