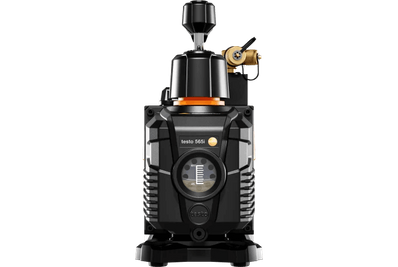

Testo 565i - smart vacuum pump, 10 CFM - 0564 5653 01

0564 5653 01 565i - smart vacuum pump, 10 CFM by Testo

The future of the smart connected technician is now with the testo 565i Smart Vacuum Pump. With the integration of testo's core platform - the testo Smart App, paired with the testo 552i digital micron gauge via Bluetooth, evacuations on refrigeration systems and heat pumps are now fully automated. When the desired vacuum target is reached, the smart pump is stops automatically and a vacuum decay test begins. This unique feature allows technicians to confidently ensure the refrigeration circuit has no leaks - all shown live via the app. This means that evacuations can now be executed easier than ever!

Thanks to its compatibility with A2L and A3 refrigerants, the testo 565i Smart Vacuum Pump guarantees maximum safety at all times. Oil changes are simple with the clear glass indicator on the front of the pump to ensure oil is full and clean, so vacuums are reached more efficiently. The auto shutoff feature prevents the loss of vacuum in the event of a power failure by closing the valve automatically. Once power is restored, the pump can return to work and start where it left off, still maintaining the vacuum.

• Fully automated evacuation and decay test when paired with the testo 552i digital micron gauge*
• Safe use with flammable class A2L and A3 refrigerants
• One app for everything: Configure measurements, monitor and manage data with the testo Smart App

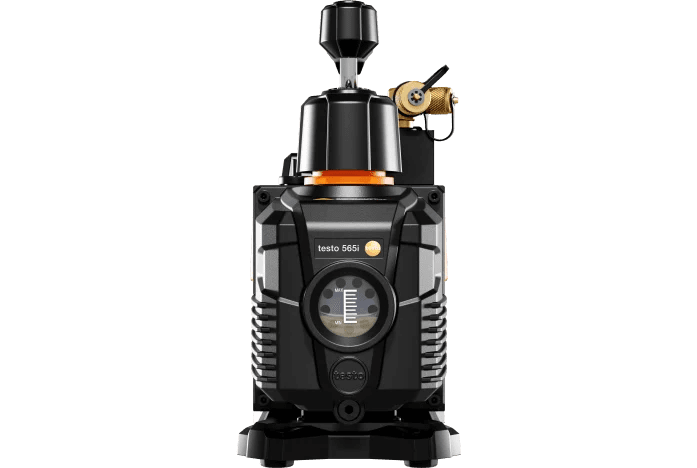

• Easy oil change. Inspection glass for quick assessment of the oil level
• Auto Shutoff – Prevents vacuum loss in case of power failure

Delivery Scope

• testo 565i Smart Vacuum Pump
• Oil bottle
• Calibration protocol and instruction manual
