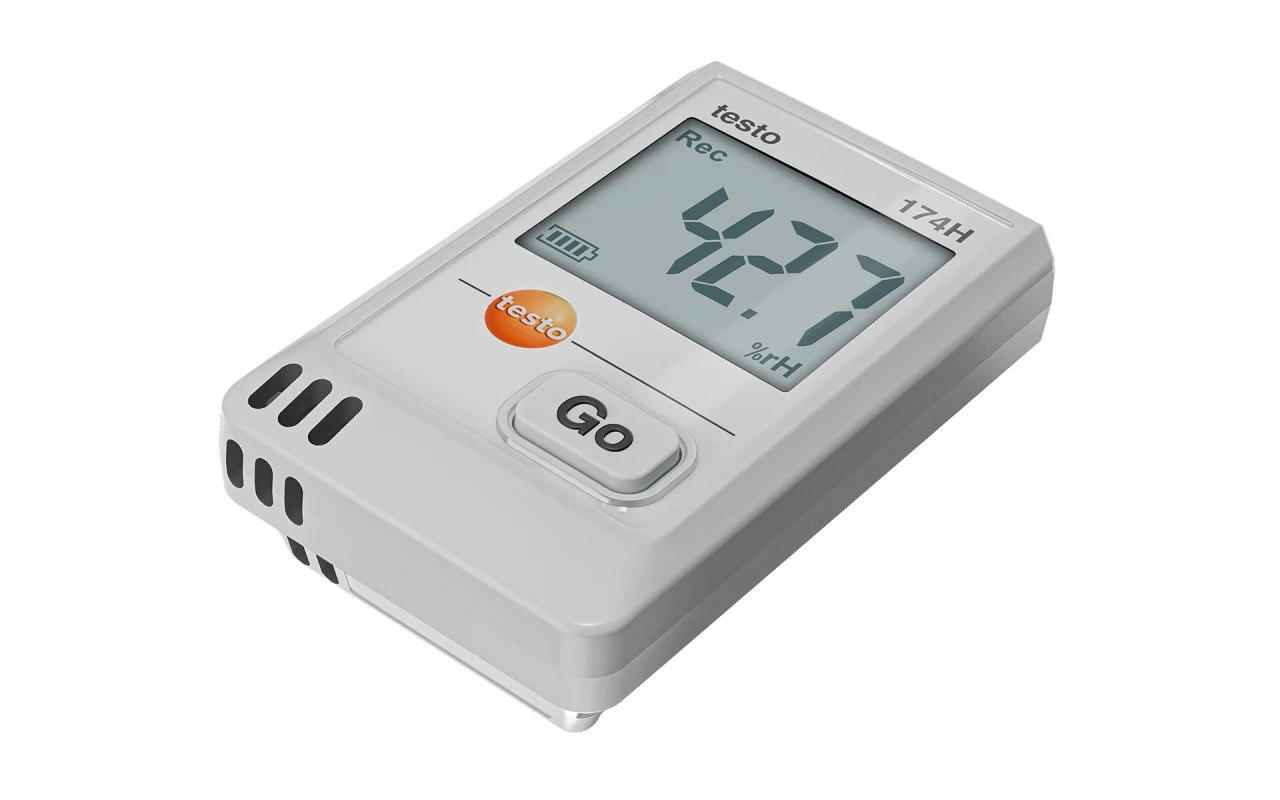

Testo 174 H (white) mini temperature data logger, including wall bracket, batteries, USB cable - 0572 1741 01
Item #:
0572-1741-01
Brand:
Testo
Share this product:
0572 1741 01 174 H (white) mini temperature data logger, including wall bracket, batteries, USB cable by Testo
The testo 174 mini data logger instruments are ideal for continuous monitoring temperature and humidity-sensitive goods in warehouses, restaurants and building climate with food in mind thanks to HAACP and NSF certifications. The testo 174 H and testo 174 H BT loggers measure temperature and humidity, while the testo 174 T and testo 174 T BT focus on temperature. All models store up to 16,000 values and protect against data loss with automatic backup during battery changes.
The free ComSoft Basic software allows quick setup and easy data analysis, including Excel export and PDF reports. ComSoft Professional provides advanced features for trend analysis, multilocation reports, and secure archiving. All for the 174 H and 174 T loggers.
Bluetooth models (174 H BT and 174 T BT) offer convenient operation via the testo Smart App, available for iOS and Android. The app lets you view measurements, create PDF reports, add photos/comments, and email results directly from your smartphone or tablet. These reliable, cost-effective loggers deliver precise data and support compliance with quality assurance standards.
testo 174 T / testo 174 H Features
- Broad temperature measuring range from -22 to 158 °F (-30 °C to +70 °C)
- Fast and uncomplicated data readout via USB-C
- Professional software for Excel export, logger programming, data analysis and PDF reporting
- Precise measurement of humidity and temperature in the range from -4 to 158 °F (-20 °C to +70 °C)
- Reliable automatic data backup in the event of an empty battery or battery change; convenient storage of up to 16,000 measured values measured values
testo 174 T BT / testo 174 H BT Features
- Broad temperature measuring range from -22 to 158 °F (-30 °C to +70 °C)
- Free testoSmart App includes export function and report generation
- Precise measurement of humidity and temperature in the range from -4 °F to 158 °F (-20 °C to +70 °C)
- Simple and intuitive configuration as well as analysis of measurement data with the testo Smart App
- Reliable automatic data backup in the event of a flat battery or battery change; convenient storage of up to 16,000 measured values
testo 174 H Includes
- mini data logger testo 174 H
- PC software
- 2 channel, incl. wall bracket
- batteries (2 x CR 2032 lithium)
- test report
testo 174 H BT Includes
- mini data logger testo 174 H BT
- PC software
- 2 channel, incl. wall bracket
- batteries (2 x CR 2032 lithium)
- test report
testo 174 T (NTC) |
testo 174 T BT (Digital) |
|
| Measuring range | -4 to 158 °F (-20 to +70 °C) |
|
| Accuracy ±1 digit | ±0.9 °F (-4 to 158 °F) (±0.5 °C (-20 to +70 °C) |
|
| Resolution | 0.1 °F / °C |
|
| Sensor type | Testo humidity sensor, capacitive |
|
| Measuring range | 0 to 100 %RH* |
|
| Accuracy ±1 digit | ±3 %RH (2 to 98 %RH) ±0.03 %RH/K |
|
| Resolution | 0.1 %RH |
|
| * Not for condensing atmospheres. For continuous application in high humidity (>80 %RH at ≤86 °F (30 °C) for >12 h, >60 %RH at >86 °F (30 °C)) for >12 h), please contact us via our website | ||
| Channels | 2 x internal |
|
| Battery type | 2 Lithium batteries (CR 2032) |
|
| Battery life | 1 year (15 min. measuring cycle, 77 °C (+25 °C)) |
|
| Operating temperature | -4 to 158 °F (-20 to +70 °C) |
|
| Storage temperature | -40 to 158 °F (-40 to +70 °C) |
|
| Dimensions | 2.4 X 1.5 X 0.7 in (60 X 38 X 18.5mm) |
|
| Weight | 1.2 oz (35g) |
|
| Certification | HACCP |
|
| Protection class | IP20 |
|
| Measuring cycle | 1 min to 24 h |
|
| Memory | 16,000 readings |
|
| Connection/connector | USB 2.0 |
Bluetooth |
| Software | testo ComSoft Basic testo ComSoft Professional |
testo Smart App |
| Logger configuration | ✓ |
|
| Measurement data evaluation | ✓ |
|
| Reporting | ✓ |
✓ (only possible after registration) |
| Measurement data export | PDF / XLS / HTML / CSV |
PDF / CSV / JSN |
