Testo 176 T3 4-Channel Temperature Logger in metal housing with 4 external thermocouple connections (Type T, K, J) - 0572 1763

Item #:
0572-1763
Brand:
Testo
Testo 176 T3 4-Channel Temperature Logger in metal housing with 4 external thermocouple connections (Type T, K, J) - 0572 1763
$745.00
Qty
Ask a Question
Send This Page to a Friend
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Testo 176 T3 4-Channel Temperature Logger in metal housing with 4 external thermocouple connections (Type T, K, J) - 0572 1763

Testo 176 T3 4-Channel Temperature Logger in metal housing with 4 external thermocouple connections (Type T, K, J) - 0572 1763

$745.00

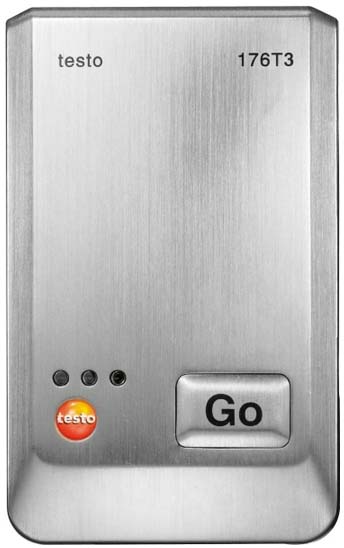

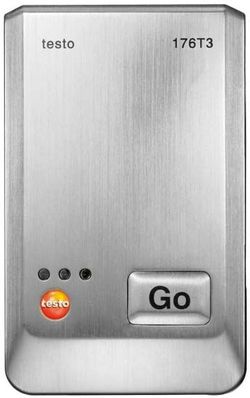

0572 1763 176 T3 4-Channel Temperature Logger in metal housing with 4 external thermocouple connections (Type T, K, J) by Testo

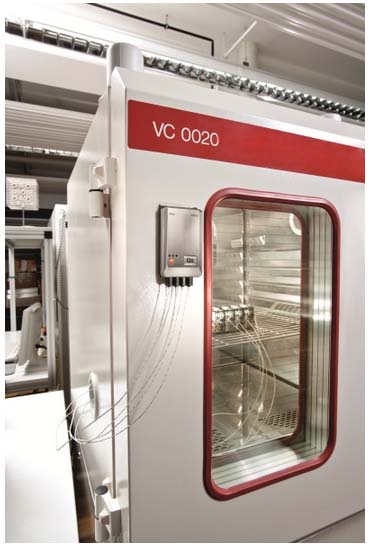

It is sometimes important to test whether the prescribed temperature limit values in a process are being adhered to. The testo 176 T3 in its robust metal housing is the right data logger for parallel measurement and recording of temperature values at 4 different sites in industrial processes. The requirements of a many different applications can be fulfilled using a broad range of connectable thermocouple probes (Type K, Type T, Type J).

  • Wareproof according to IP65

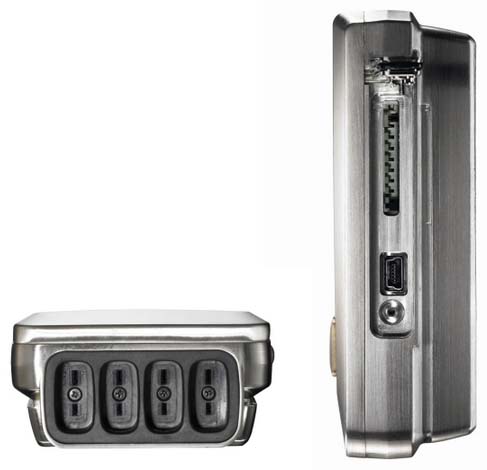

  • Integrated USB and SD card interface for reading out data
  • Large memory for 2 million measurement values - robust metal housing (without display)
  • Simultaneous temperature measurement at up to four measurement sites thanks to different connectable thermocouple probes for the most widely differing applications
  • Robust metal housing protects from mechanical influences such as impact
Memory 2.000.000 readings
Storage temperature -40 to +85 °C
Operating temperature -20 to +70 °C
Dimensions 103 x 63 x 33 mm
Probe type Typ T (Cu-CuNi) Meas. range: -200 to +400 °C
Accuracy: ±1 % of mv (-200 to -100,1 °C); ±0.3 °C (-100 to +70 °C); ±0.5 % of mv (+70,1 to +1000 °C)
Resolution: 0.1 °C
Probe type Type K Meas. Range: -195 to +1000 °C
Accuracy: ±1 % of mv (-200 to -100,1 °C); ±0.3 °C (-100 to +70 °C); ±0.5 % of mv (+70,1 to +1000 °C)
Resolution: 0.1 °C
Probe type Typ J (FeCuNi) Meas. Range: -100 to +750 °C
Accuracy: ±1 % of mv (-200 to -100,1 °C); ±0.3 °C (-100 to +70 °C); ±0.5 % of mv (+70,1 to +1000 °C)
Resolution: 0.1 °C
