Testo 16 mm Vane Probe Head includes Temperature Probe - 0635 9570
Item #:
0635-9570
Brand:
Testo
Share this product:

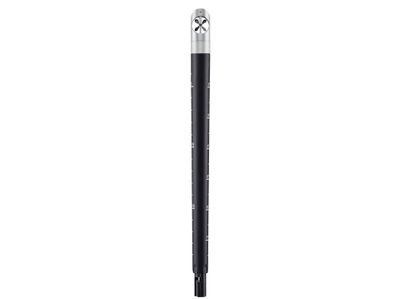

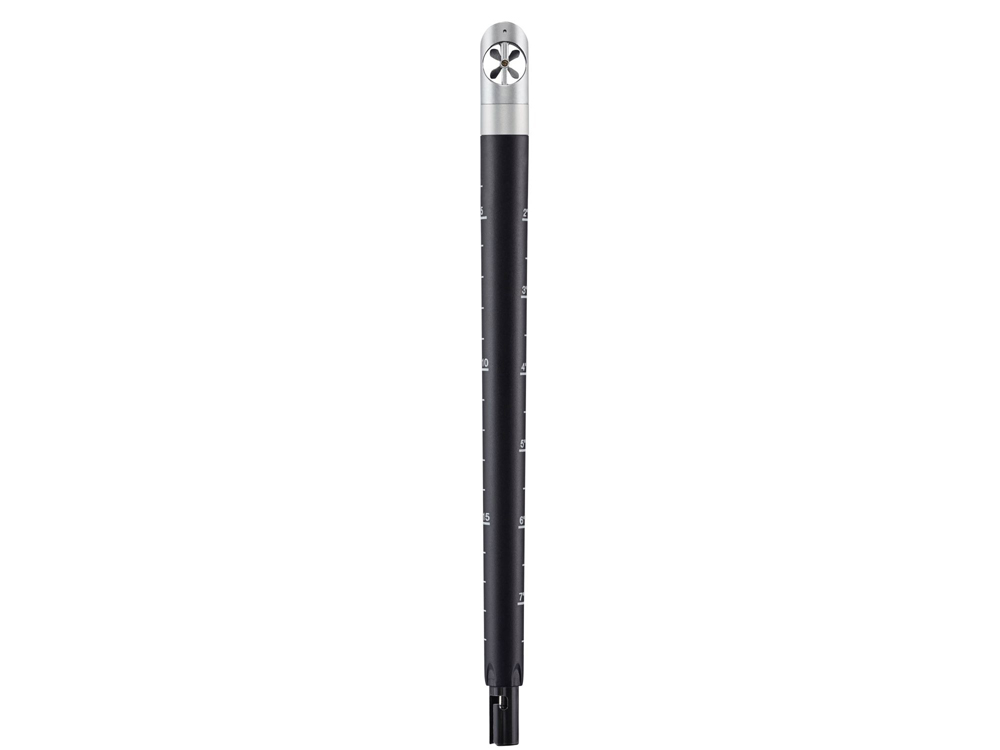

0635 9570 16 mm Vane Probe Head includes Temperature Probe by Testo
Simply plug the probe head onto the extendable telescope for air velocity probes and use the adapter (order number 0554 2160) to attach them both to the handle with Bluetooth or cable.
- Intuitive: parallel determination of flow velocity, volume flow and humidity
- Precise: accurate measurement results from +0.6 to +50 m/s
- Convenient: simply plug the probe head onto the extendable telescope for air velocity probes - and use the adapter to attach them to the universal handle with Bluetooth® or cable (available to order separately)
- Intelligent calibration concept: only send in the probe head for calibration
Includes:
16 mm vane probe head including temperature sensor and calibration protocol.
| Temperature - NTC | Measuring range | 14° to 158 °F / -10 to +70 °C |
| Accuracy | ±3.2 °F / ±1.8 °C | |
| Resolution | 0.1 °F / 0.1 °C | |
| Velocity / Volume flow | Measuring range | 118.1 to 9843 fpm / 0.6 to 50 m/s |
| Accuracy | ±(39.4 fpm + 1 % of mv) (118.1 to +7874 fpm) / ±(0.2 m/s + 1 % of mv) (0.6 to +40 m/s) ±(39.4 fpm + 2 % of mv) (7893.7 to 9843 fpm) / ±(0.2 m/s + 2 % of mv) (40.1 to 50 m/s) |
|
| Resolution | 19.7 fpm / 0.1 m/s | |
| Storage temperature | 14° to 158 °F / -10 to +70 °C | |
| Weight | 2.1 oz. / 60 g | |
| Dimensions | 9.6 x 0.6 x 0.6 in. / 245 x 16 x 16 mm | |
| Operating temperature | 14° to 158 °F / -10 to +70 °C | |
| Length probe shaft | 9.055 in. / 230 mm | |
| Diameter probe shaft | 0.63 in. / 16 mm | |
| Probe head diameter | 0.63 in. / 16 mm | |
| Product colour | Black | |
