Testo Robust Temperature-humidity Probe for Temperatures up to +180 °C, Fixed Cable - 0636 9775

Item #:

0636-9775

Brand:

Testo

View All

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

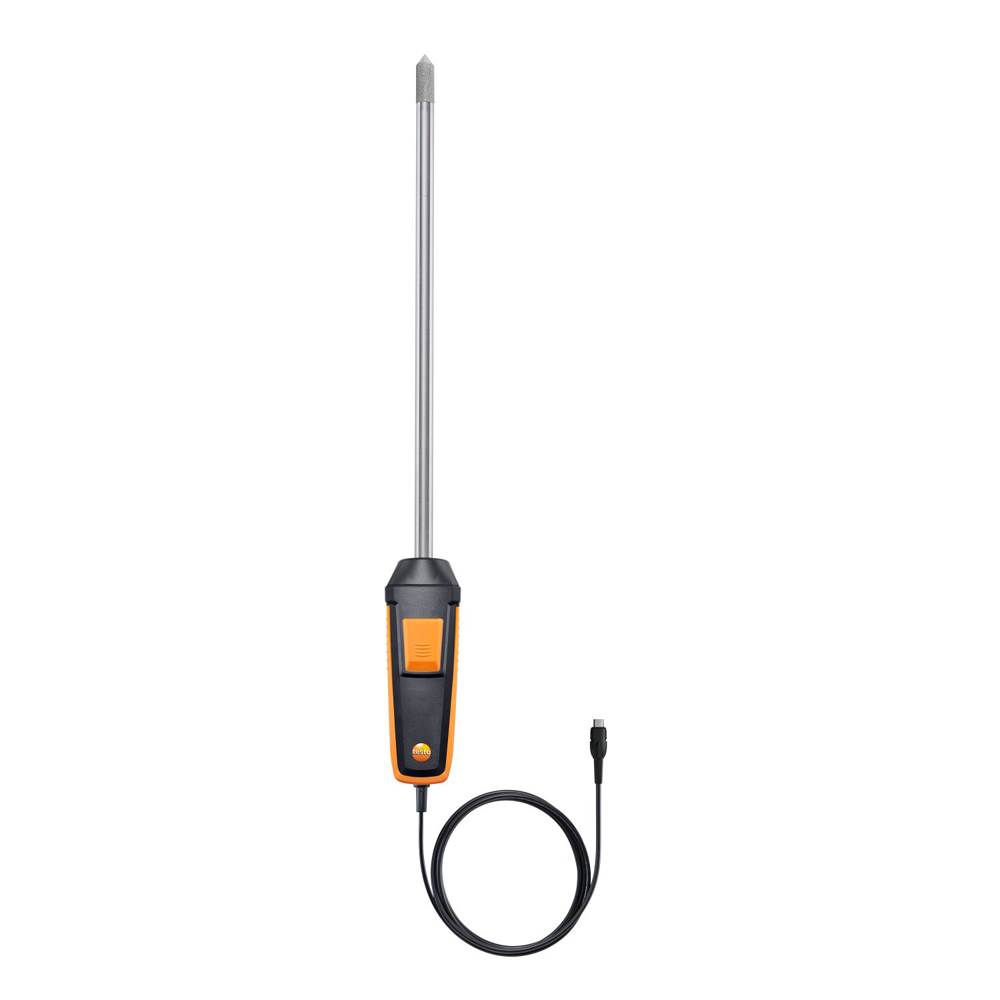

0636 9775 Robust Temperature-humidity Probe for Temperatures up to +180 °C, Fixed Cable by Testo

Use the robust humidity/temperature probe with the compatible testo multifunction measuring instrument (please order separately) to measure relative humidity and air temperature. Absolute humidity, wet bulb temperature and dew point are calculated at the same time.

Robust humidity/temperature probe - features and areas of application

Use the fixed cable to connect the probe to the measuring instrument.

Particularly useful: store individual readings directly in the measuring instrument by pressing the button on the probe. The clearly structured measurement menu for long-term measurement enables the measuring instrument to be operated intuitively. Reading trends are reliably recorded thanks to the convenient input of measurement time and measuring cycle.

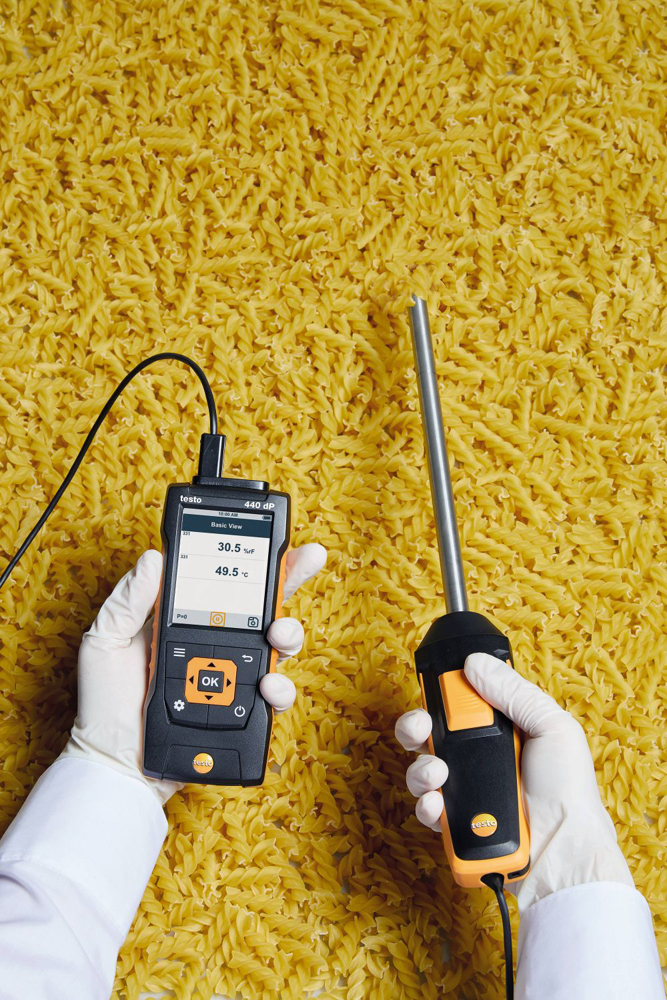

The robust humidity/temperature probe was specifically designed for use in sophisticated production and treatment processes. The screwable PTFE sintered filter is highly resistant to aggressive media and is water-repellent, and reliably protects the humidity and temperature sensor. The probe can be used in dusty atmospheres, at high air velocity and under mechanical stress: for example, for measurements in industrial exhaust air (during drying processes), in bulk materials and in climatic test cabinets.

Intelligent calibration concept

You will get exceptionally accurate measurement results with the digital humidity/temperature probe, because the measuring instrument makes measurement uncertainty a thing of the past. You only need to send the probe in for calibration - so the measuring instrument remains in continuous use.

Intuitive: clearly structured measurement menu for long-term measurement and parallel determination of relative humidity and air temperature in industrial exhaust air, bulk goods and climatic test cabinets
Precise: calculation of wet bulb temperature, dew point and absolute humidity
Robust: suitable for measurements in harsh environmental conditions up to +180 °C
Intelligent calibration concept

Includes:

Robust humidity/temperature probe with fixed cable (cable length 1.4 m) and calibration protocol.

Specifications

Temperature - NTC	Measuring range	-4° to 356 °F / -20 to +180 °C
	Accuracy	±0.9 °F (-4° to 32 °F) / ±0.5 °C (-20 to 0 °C) ±0.7 °F (32.2° to 122 °F) / ±0.4 °C (+0.1 to +50 °C) ±0.9 °F (122.2° to 356 °F) / ±0.5 °C (+50.1 to +180 °C)
	Resolution	0.1 °F / 0.1 °C
Humidity - Capacitive	Measuring range	0 to 100 %rH
	Accuracy	±3 %rH (0 to 2 %rH) ±2 %rH (2.1 to 98 %rH) ±3 %rH (98 to 100 %rH) ±0.03 %rF/K (-4° to +122 °F) k=1 / ±0.03 %RH/K (-20 to +50 °C) (k=1) ±0.06 %rF/K (+122° to +356 °F) k=1 / ±0.06 %RH/K (+50 to +180 °C) (k=1)
	Resolution	0.01 %rH
Storage temperature		-4° to 140 °F / -20 to +60 °C
Weight		9.0 oz. / 255 g
Dimensions		16.5 x 2.0 x 1.6 in. / 420 x 50 x 40 mm
Operating temperature		23° to 122 °F / -5 to +50 °C
Length probe shaft		10.63 in. / 270 mm
Cable length		4.593 ft. / 1.4 m
Diameter probe shaft		0.472 in. / 12 mm
Product colour		black/orange
