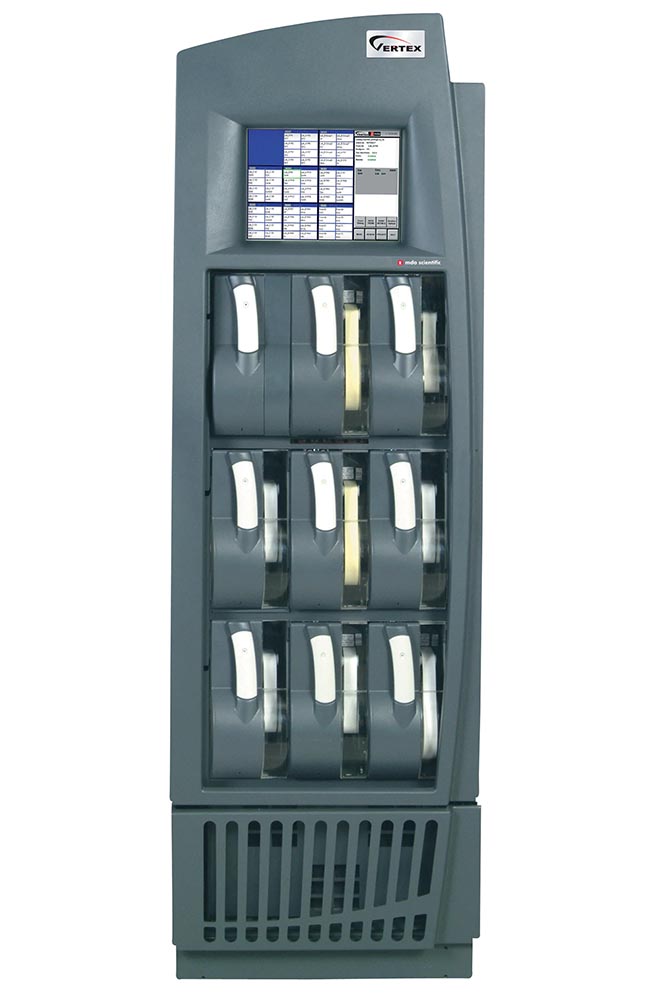

Honeywell Analytics Vertex Base Rack Enclosure - 1290-0019

1290-0019 Vertex Base Rack Enclosure by Honeywell Analytics

Vertex™ provides the most sensitive and reliable multi-point low level toxic gas monitoring system backed by physical evidence of an actual gas release.

Vertex™ provides a cost-effective monitoring solution that adapts to your changing gas detection needs

Flexible

Start your Vertex™ System with as little as eight points. As your monitoring needs change, Vertex™ expands, offering you up to 72 points of continuous gas detection. Place your sampling points up to 400 feet (120 meters) from the system. There is a choice of universal analyzer modules and/or pyrolyzer analyzers.

Reliable

Vertex™ offers powerful, built-in system redundancy as standard equipment to effectively safeguard against downtime.

• Back-up pump and internal power module
• Chemcassette® technology provides physical evidence of gas event
• System data back-up. If main data acquisition PC fails, analyzers continue to monitor, log data and alarm
• Drip resistant cap for system protection from overhead leaks
• Automated leak test with line integrity option

Easy to use

• Touch screen for easy access to data
• Software updates via CD-ROM or network to all system components
• Configuration profile editing and data retrieval are all achievable without taking unit offline
• Radio frequency identification tag (RFID) ensures Chemcassettes® are installed into appropriately programmed analyzer, eliminating human error
• On-line help system

Security

• Multiple levels of password protection
• Reconfigure security setup without taking unit offline

Low cost of ownership

• Vertex's™ smaller footprint and greater density of points reduce your cost per point
• Eight points per analyzer lowers Chemcassette® costs
• Maximized 72 point systems provide low cost per point as compared to other continuous monitors
• One system monitors up to nine gas families and more than 40 gases
• You can split your sample to more than one analyzer

Easy to maintain

• Vertex™ uses cost-effective XP Chemcassettes®, providing up to three months of continuous monitoring
• Simplified replacement of Chemcassettes® and automated optics verification
• No dynamic calibration required
• No flow balancing
• Easy access to analyzers, pumps, power supplies and touch screen from front panel
• Onscreen interactive electronic manual

Advanced communications

• Built-in configurable PLCs with optional 176 relay contacts
• Standard OPC interface for easy integration into your existing factory automation system or HMI
• Optional Ethernet/CIP, LONWORKS®, DeviceNetTM, DF1 Interface, PROFIBUS, Modbus Plus, Modbus/TCP or ControlNet outputs available
• Optional Chemcam camera permits viewing of stain, locally or remotely, for proof of gas event. Image is electronically saved for future retrieval.
• Optional remote control/viewing software enables total visualization of the monitor screens at a remote PC
