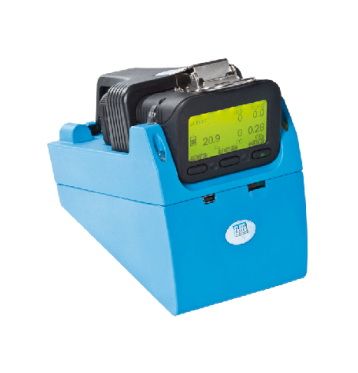

GfG TS400 Test Station Includes Tubing, Software, USB Cable and Manual - 1450-601

GfG TS400 Test Station Includes Tubing, Software, USB Cable and Manual - 1450-601

Item #
1450-601
Brand
GfG
Price:

$750.00

Quantity:


    1450-601 TS400 Test Station Includes Tubing, Software, USB Cable and Manual by GfG

    Easy operation

    The operation of the TS400 test station couldn't be any easier. Simply place the G450 or the G460 in the station and the system will take over from there. The TS400 automatically performs a full functional test that includes performance of all sensors and alarms.

    Extensive diagnostics

    The TS400 is designed to go beyond the traditional basic bump test and includes sensor diagnostics tests such as T50 and T90. After all, what good is a sensor that can respond to gas when it takes too long to get there? With the TS400 you can have confidence with this added level of safety.

    Charging option

    The TS400 is available (optionally) for use as a charger as well as a test station. After all tests have been completed you may remove and begin using the detector or leave it in the TS400 for recharging.

    Record Keeping

    A good gas detection instrument maintenance program is not complete without equally good record keeping. Whether you choose to download the records, maintain the records on a PC / network or your preference is to leave the work to the test station, the TS400 is the right choice.

    The TS400 can retain as many as 2 million complete diagnostics in memory with the maximum memory installed. That is over 50 years of data even if testing 100 detectors every single day!

    Reduced cost of ownership

    The TS400 is designed to reduce the cost of ownership every step of the way. The push button regulator helps to sharply reduce the amount of gas required to test your instruments.

    PC communication

    The TS400 comes complete with USB interface cable and download software. The SD card may also be downloaded using a standard SD card reader.

    Maintenance certificates

    The TS400 software includes a module to quickly print official bump test certificates. Simply download the records from the TS400 and start the "Certificate Generator" it takes only seconds!

    Detector with Pump

    The TS400 is available for use with the instrument only or there is an available design for use with the instrument with a pump. There is no need to remove the pump before placing the detector in the test station.

    Features

    • Four test gas ports
    • Fully automatic functional bump test and calibration
    • Automatic test of alarms
    • Automatic charging
    • Automatic record keeping
    • Simple pass / fail indication
    • Cascade multiple docking stations
    • Saves last calibration and bump test records in detector for easy retrieval of maintenance record in the field
    • No computer necessary
    • Up to 2,000,000 records in memory
    • Saves times, gas and efforts for lower cost of ownership
    • Print official calibration certificates

    Dimensions 3.5x4.7x6.3 in (90x120x160 mm)
    Weight 10.58 ounces (300 grams)
    Power Direct power via USB connection or
    12 VDC wall cube
    12 VDC vehicle power (optional)
    Gas Response Automatic bump test
    Response Time T50 or T90 tests
    Alarm Activation Time to activate alarm-1 and alarm-2
    Visual Alarm Automatic LED test
    Audible Alarm Automatic horn test
    Interface G450/G460 keypad
    Display G450/G460 graphic display
    Time stamp Automatic/Real-time clock
    Inlets 1 Gas
    Outlets 1 Gas exhaust
    Flow rate 0.5 liter per minute
    Temperature range 50-90ºF (10-32ºC)
    Warranty 1 Year
    Standard Accessories TS400 data software
    USB computer interface cable
    Power supply (only with charging option)
    1 GB SD memory card
    Configuration software
    Download software
    Certificate generator
    Optional Accessories Push button regulator
    2 GB SD memory card
    12 VDC vehicle power adapter
