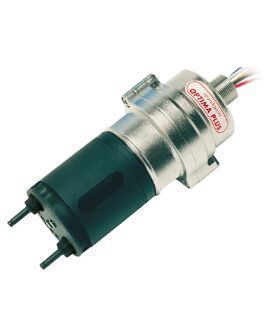

Honeywell Analytics Optima Plus Gas Detector, XTC HC CU FLW HART - 2108N5800H

Item #:
2108N5800H
Brand:
Honeywell Analytics
Honeywell Analytics Optima Plus Gas Detector, XTC HC CU FLW HART - 2108N5800H
$2,975.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Honeywell Analytics Optima Plus Gas Detector, XTC HC CU FLW HART - 2108N5800H

Honeywell Analytics Optima Plus Gas Detector, XTC HC CU FLW HART - 2108N5800H

$2,975.00

2108N5800H Optima Plus Gas Detector, XTC HC CU FLW HART by Honeywell Analytics

Market leading point infrared Hydrocarbon gas detector offering proven performance and sensitivity

With over 40 years experience in the design, manufacture, installation and maintenance of point infrared gas detection, Honeywell Analytics currently has a Worldwide installed base of over 100,000 infrared point Hydrocarbon gas detectors in a wide spectrum of applications from light industrial to the most demanding of offshore petrochemical environments.

Searchpoint Optima Plus is an infrared point Hydrocarbon gas detector certified for use in potentially explosive atmospheres. The unit's infrared detection principle offers the fastest speed of response and fail-to-safe operation, ensuring that your plant is compliant, your personnel are protected and your production process can deliver maximum uptime. Reduced routine maintenance, when compared with conventional electro-catalytic based gas detectors, provides low ongoing cost of ownership. The development of advanced internal fault diagnostics and false alarm rejection algorithms ensures that Searchpoint Optima Plus delivers the highest level of operational integrity.

Typical applications include environments that may suffer from the presence of catalytic bead poisons or inhibitors, or where there are harsh environmental conditions forcing increased time between routine maintenance, for example; offshore oil and gas platforms, floating production storage and offloading (FPSO) vessels, tankers, onshore oil and gas terminals, refineries, LNG / LPG bottling plants, gas compressor / metering stations, gas turbine power plants, refineries, solvent printing and coating plants.

Over 100 gas and vapour calibrations are available. For a list of detectable gases and vapours, please contact our Customer Support team or your local distributor.

Why Infrared?

  • Failsafe operation
  • Fast speed of response
  • Reduced routine maintenance
  • Immune to catalytic poisons
  • Long operating life
  • Works in inert atmospheres

Why Searchpoint Optima Plus is the right choice...

  • Experience gained from over 100,000 units installed worldwide
  • Improved reliability
  • Optional HART® over 4-20mA output
  • Can detect a wide range of hydrocarbon gases including solvents
  • Increased reliability with no moving parts
  • Increased stability from self compensating optics
  • Immune to long term component drift
  • Remote functional gas test facility
  • Certified for North American and European Hazardous areas
  • Increased false alarm rejection
  • Increased uptime with contaminated optics warning
  • Dynamic Heating Control ensures condensation free optics
  • No undetected failures
  • Improved diagnostics
  • Integral event logging
  • Reduced power consumption
  • Certified to many hazardous area classification schemes including: European (ATEX), UL, CSA, IECEx and more
Use Searchpoint Optima Plus is an advanced, Point-Infrared, flammable gas detector certified for use in potentially explosive atmospheres
Measuring Range 0-100% LEL, wide selection of Hydrocarbon gas and vapor calibrations. Different measuring ranges and solvent calibrations available for specialist applications
Signal Output 4-20mA autosensing sink or source
Inhibit 1-3mA (Default 2mA)
Warning 0-6mA (Default 3mA)
Fault 0mA (HART® units adjustable to 1mA)
Over Range 20-21.5mA (Default 21mA)
Digital Output Optional Multidrop Modbus RS485 (via DX100(M)), Optional HART® over 4-20mA output (HART® version 7)
Material 316 stainless steel
Weight 1.6kg
Accuracy Optima Plus (Hydrocarbon): Baseline < ±1% FSD, 50% FSD
Optima Plus (Ethylene): Baseline < ±2% FSD, 50% FSD
Repeatability < ±2% FSD at 50% FSD
Linearity < 5% FSD
Response Time T50 < 3 seconds, T90 < 4 seconds (methane)
Operational and Certified -40°C to +65°C temperature range
Long Term Stability (as defined in EN 60079-29-1) Baseline Methane 100 %LEL Range: ≤ ± 2 %FSD
Ethylene 100 %LEL Range: ≤ ± 4 %FSD
50 %FSD Methane 100 %LEL Range: ≤ ± 4 %FSD
Ethylene 100 %LEL Range: ≤ ± 5 %FSD
Drift Over Temperature Range (-40 °C to 65 °C) Baseline ≤ ± 2 %FSD
50 %FSD Methane 100 %LEL Range: ≤ ± 0.131 %FSD per °C
Ethylene 100 %LEL Range: ≤ ± 0.078 %FSD per °C
Variation with Pressure 0.1% (of reading) per mbar
Power Supply 18-32Vdc (24Vdc nom), < 4.5W max
Environmental Protection IP 66 / 67
Diagnostics (and Re-calibration) Via certified Hand-held Interrogator, or optional HART® communications
Performance Approvals CSA C22.2 152., FM ANSI/ISA-12.13.01., EN 60079-29-1 (BVS 03 ATEX G 016 X)
Functional Safety IEC61508 Safety Integrity Level 2
EMC Compliance Software EN 50270:2006
EN 50271:2010
