Description

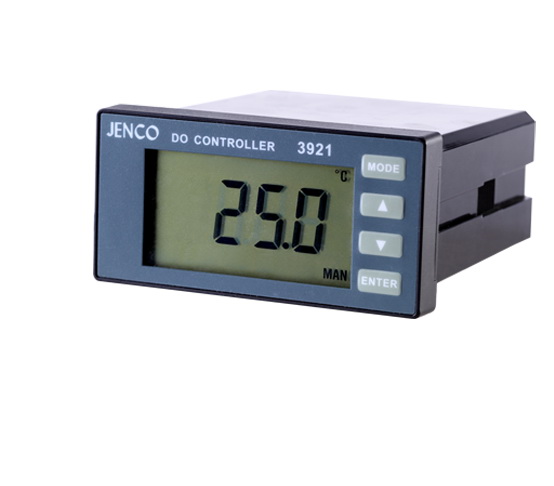

3921 DO/Temperature Controller by Jenco

DO & temperature controller with 2 sets of On/Off relays, stored calibration data, backlit LCD display for DO and temperature, universal power supply 100 to 240 VAC and packaged in an easy to install plastic panel mount water resistant 1/8 DIN IP65 case. Uses Hamilton Company Oxysens and Easyferm DO electrodes.

Easy to install 1/8 DIN plastic casing
Clear LCD displays dissolved oxygen or temperature with backlight
Calibration data is stored in memory and is ready for use on power up
Universal power supply input from 100 ~ 240 VAC
Automatic or manual temperature compensation
Two sets of programmable on/off relays for DO
CE and RoHS complain

Specifications

DO Range	0.00 to 40.00 mg/L
DO Resolution	0.01 mg/L
DO Accuracy	±0.2 % F.S.
DO% saturation Range	0.0 to 400.0 %
DO% saturation Resolution	0.1 %
DO% saturation Accuracy	±0.2 % F.S.
Temperature Range	-10.0 to 80.0 °C automatic or manual
Temperature Resolution	0.1 °C
Temperature Accuracy	±0.3 °C
Barometric Pressure Compensation Range	600 to 4000 mbar manual
Salinity Compensation Range	0.0 to 49.9 ppt manual
Type of Electrode	Polarographic
Relay Output	Two ON/Off controls. 5 A at 115 VAC or 2.5 A at 220 VAC
Power	100 ~ 240 VAC , 50/60 Hz
