Bacharach 5600-1051 GDX-150 Ammonia Transmitter

Bacharach 5600-1051 GDX-150 Ammonia Transmitter

$1,170.00

5600-1051 GDX-150 Ammonia Transmitter by Bacharach

Bacharach's new GDX-150 Ammonia (NH3) Transmitter is the most economical solution for monitoring and detecting increased levels of ammonia. Gas concentrations are quickly transmitted via 4-20 mA current loop back to a centralized controller where concentrations can be displayed, alarms activated, or exhaust fans turned on. The GDX-150 is a 2-wire sensor transmitter that accepts low power sensor modules that are easily replaced in the field.

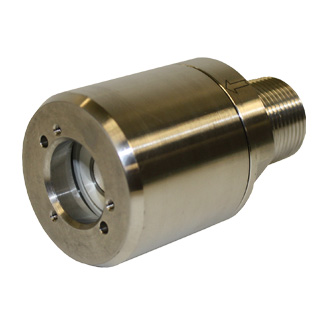

The Bacharach GDX-150 is a rugged stainless steel sensor transmitter utilizing an electrochemical sensor that is sensitive down to 1 part per million (ppm) and can measure concentrations up to 500 ppm. These low detection limits allow actions to be taken at the detection of the smallest leaks. Unlike other sensing technologies, the GDX-150 electrochemical sensor is extremely gas sensitive and specific to ammonia. The compact size of the GDX-150 is ideal for small spaces such as vent stacks and is easily mounted directly onto any ¾ inch NPT conduit or junction box.

GDX-150 Features & Benefits:

  • Simple 2-wire, 4-20 mA interface transmits signals thousands of feet
  • Improved noise immunity with stainless steel sensor head
  • Simple, non-obtrusive design
  • Robust, tamper-proof housing
Detection Principle Electrochemical, Field Replaceable
Coverage Single Sensor = 40 Foot Diameter
Measuring Range 0-500 ppm
Sensitivity 1 ppm
Dimensions 1.9" x 3.2" (4.83 cm x 8.13 cm)
Housing Type 316 Stainless, Suitable for Class 1, Div 1&2, Gr. B,C,D
¾ Inch NPT Threading
Calibration Through GDA-400 or GDA-1600 Controllers
Response Time T50 <30 s , T90 < 90s
4-20 Output Signal 2-Wire, 4-20 mA Current Sink. Max Output = 25 mA
Long Term Drift <10% per 6 Months
Linearity <10% of Full Scale
Temperature Drift <0.1% per Degree C over Temperature Range
Operating Temperature Range -4 to 122°F (-20 to 50°C)
Ambient Humidity Range 5% to 90% RH (Non-Condensing)
Power 9 - 36 VDC, 250 mA (@ 24 VDC)
Approvals Intrinsically Safe with use of an IS Barrier
